Rosemount 396P - Wiring Details Model 396 P-01-55 for Use with Junction Box (PN 23550-00) for Models 54, 3081, 4081, and

13
MODEL 396P and 396PVP SECTION 3.0
WIRING - MODEL 396P

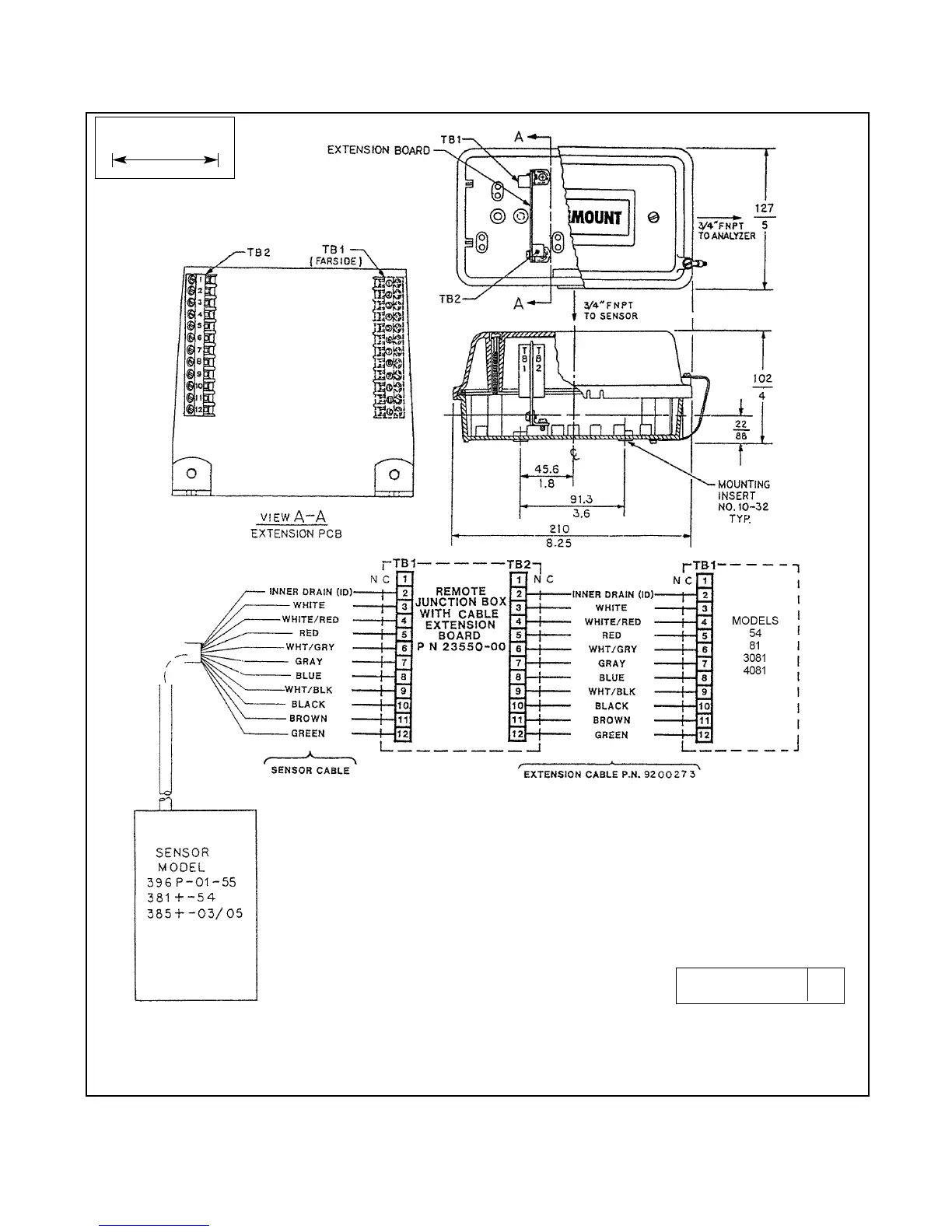

FIGURE 3-4. Wiring Details Model 396P-01-55 for use with Junction Box
(PN 23550-00) for Models 54, 3081, 4081, and 81.
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
DWG. NO. REV.
40396P08 B
