12

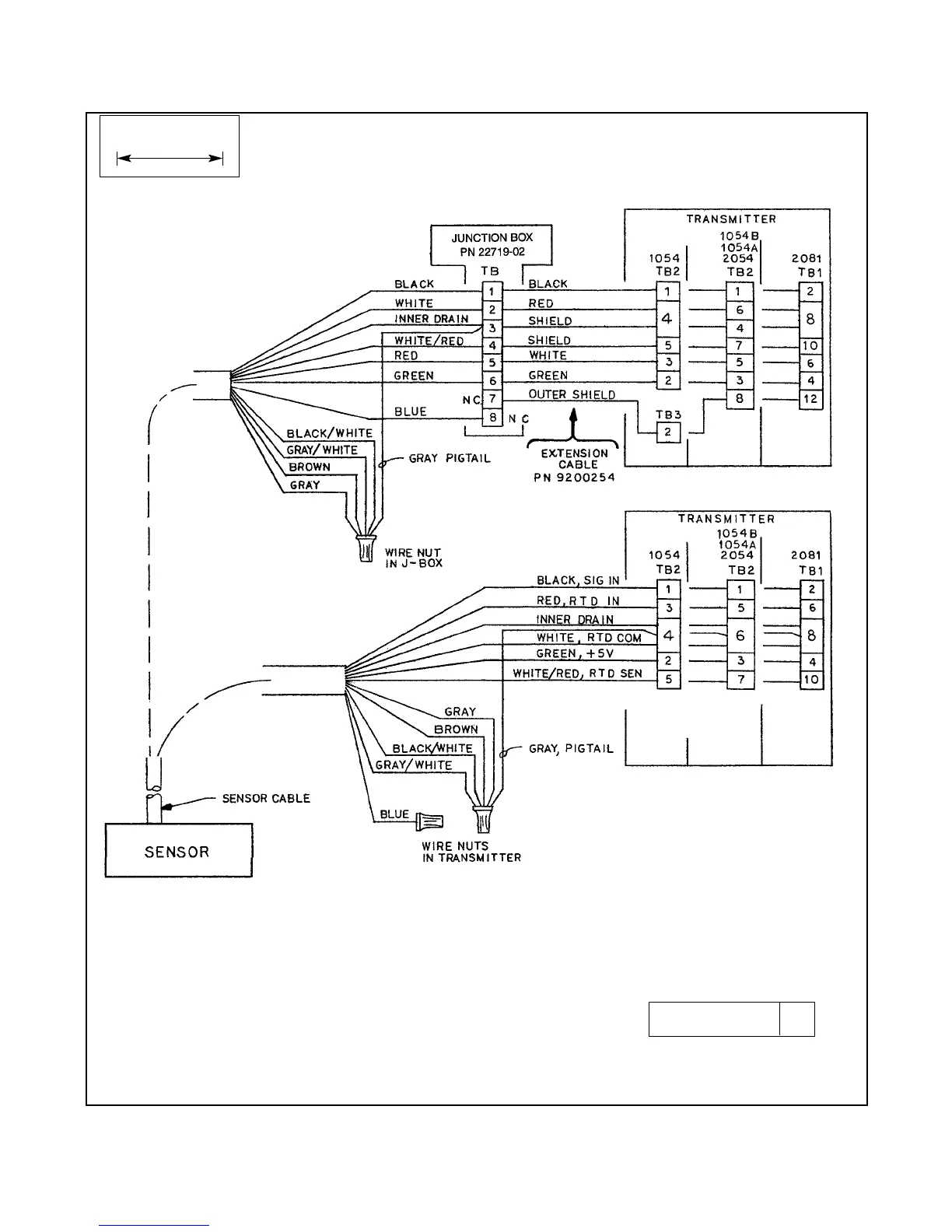

FIGURE 3-3. Wiring Details Model 396P-01-54 for use with and without Junction Box
(PN 22719-02) for Models 1054, 1054A, 1054B, 2054, 2081, and Extension Cable (9200254).
MODEL 396P and 396PVP SECTION 3.0
WIRING - MODEL 396P
DWG. NO. REV.
40396P13 D
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
