11
MODEL 396P and 396PVP SECTION 3.0
WIRING - MODEL 396P

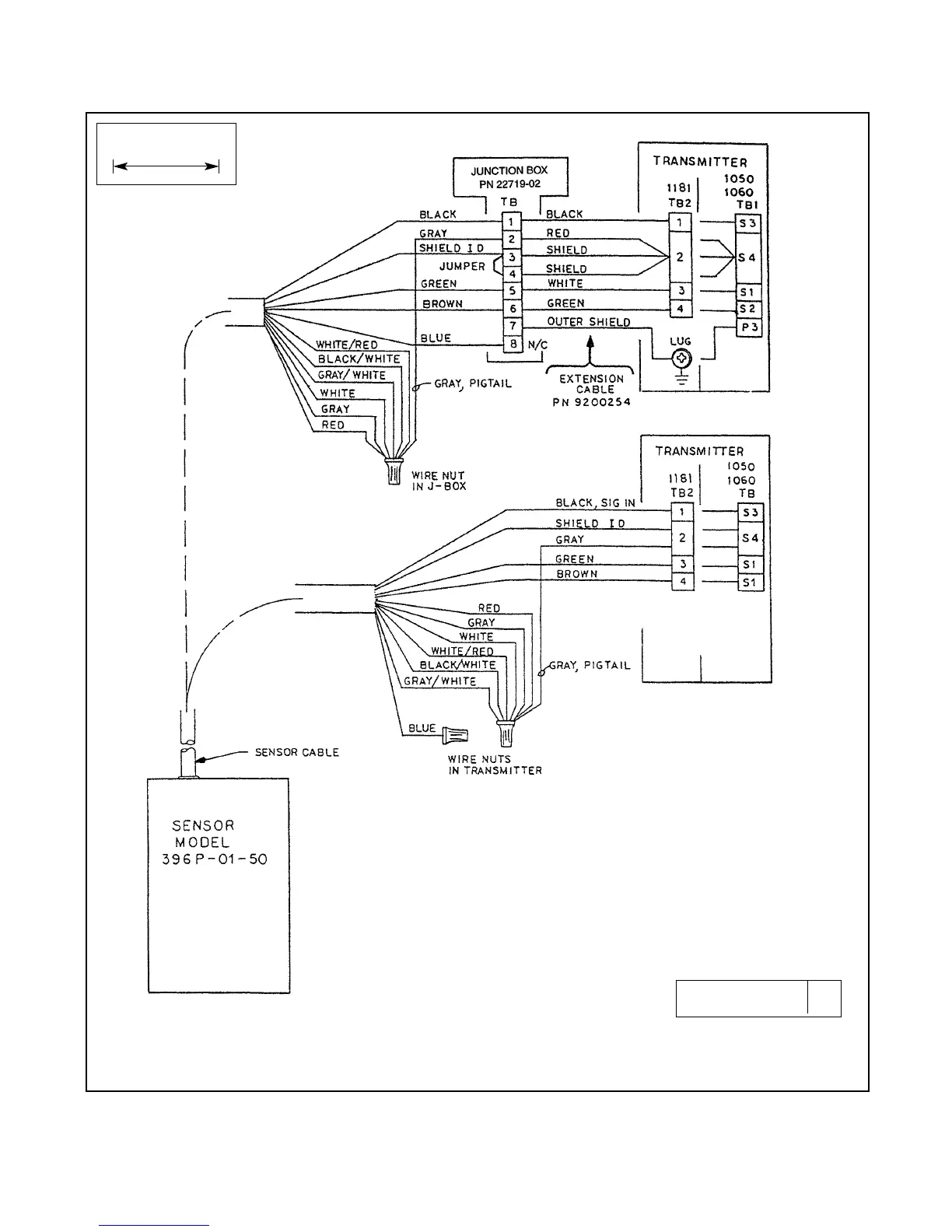

FIGURE 3-2. Wiring Details Model 396P-01-50 for use with and without Junction Box
(PN 22719-02) for Models 1181, 1050, and 1060.
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
DWG. NO. REV.
40396P15 B
