20
MODEL 396P and 396PVP SECTION 4.0
WIRING - MODEL 396PVP

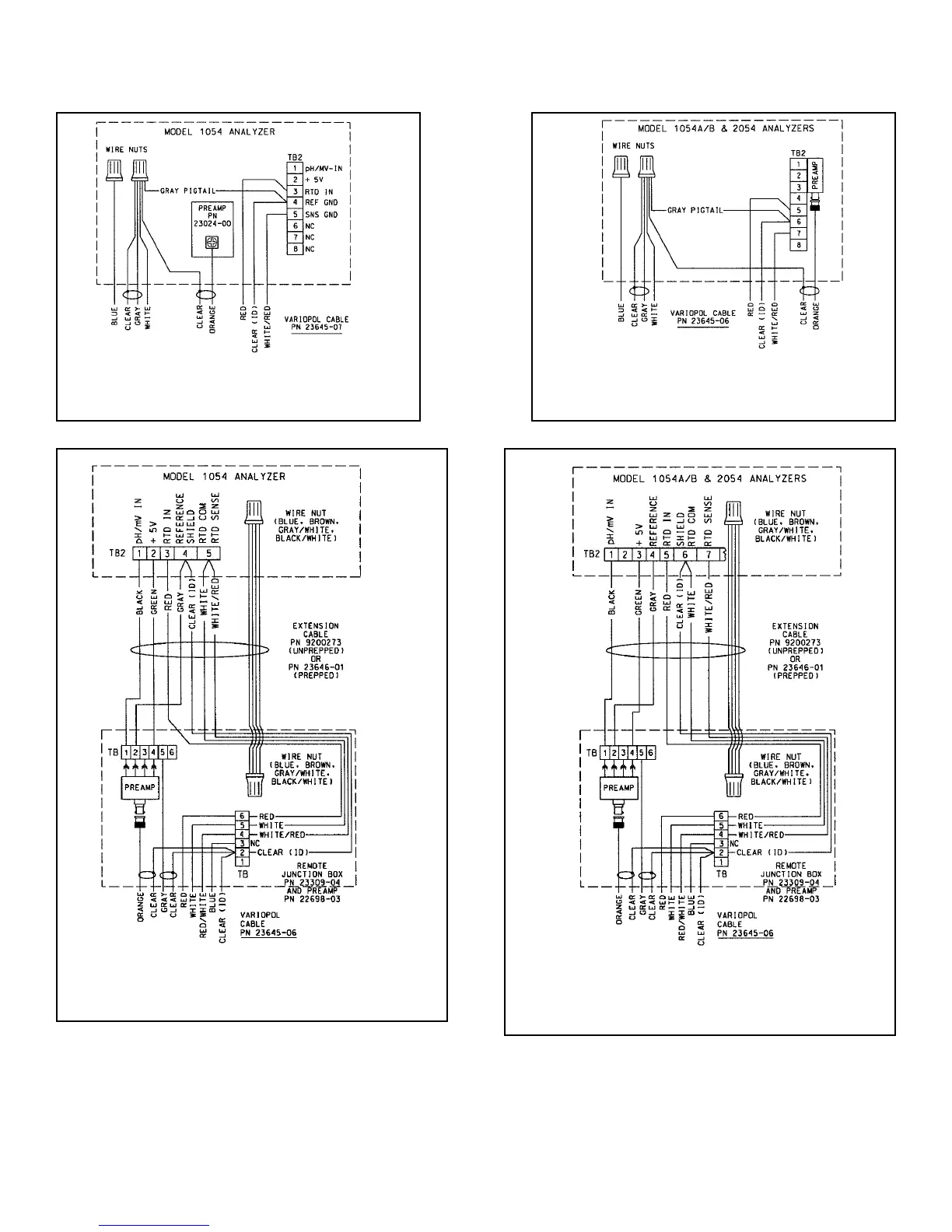

FIGURE 4-18. Wiring Details for Models 396PVP
or 396P-02-54 with Mating Variopol Cable
(PN 23645-07) for use with Model 1054
FIGURE 4-19. Wiring Details for Models 396PVP
or 396P-02-54 with Mating Variopol Cable
(PN 23645-06) for use with Models 1054A/B & 2054
FIGURE 4-21. Wiring Details for Models 396PVP or
396P-02-54 with Mating Variopol Cable (PN 23645-06)
for use with Remote Junction Box (PN 23309-04) to
Models 1054A/B and 2054
FIGURE 4-20. Wiring Details for Models 396PVP or 396P-
02-54 with Mating Variopol Cable (PN 23645-06) for use
with Remote Junction Box (PN 23309-04) to Model 1054
