MODEL 396P and 396PVP SECTION 4.0
WIRING - MODEL 396PVP

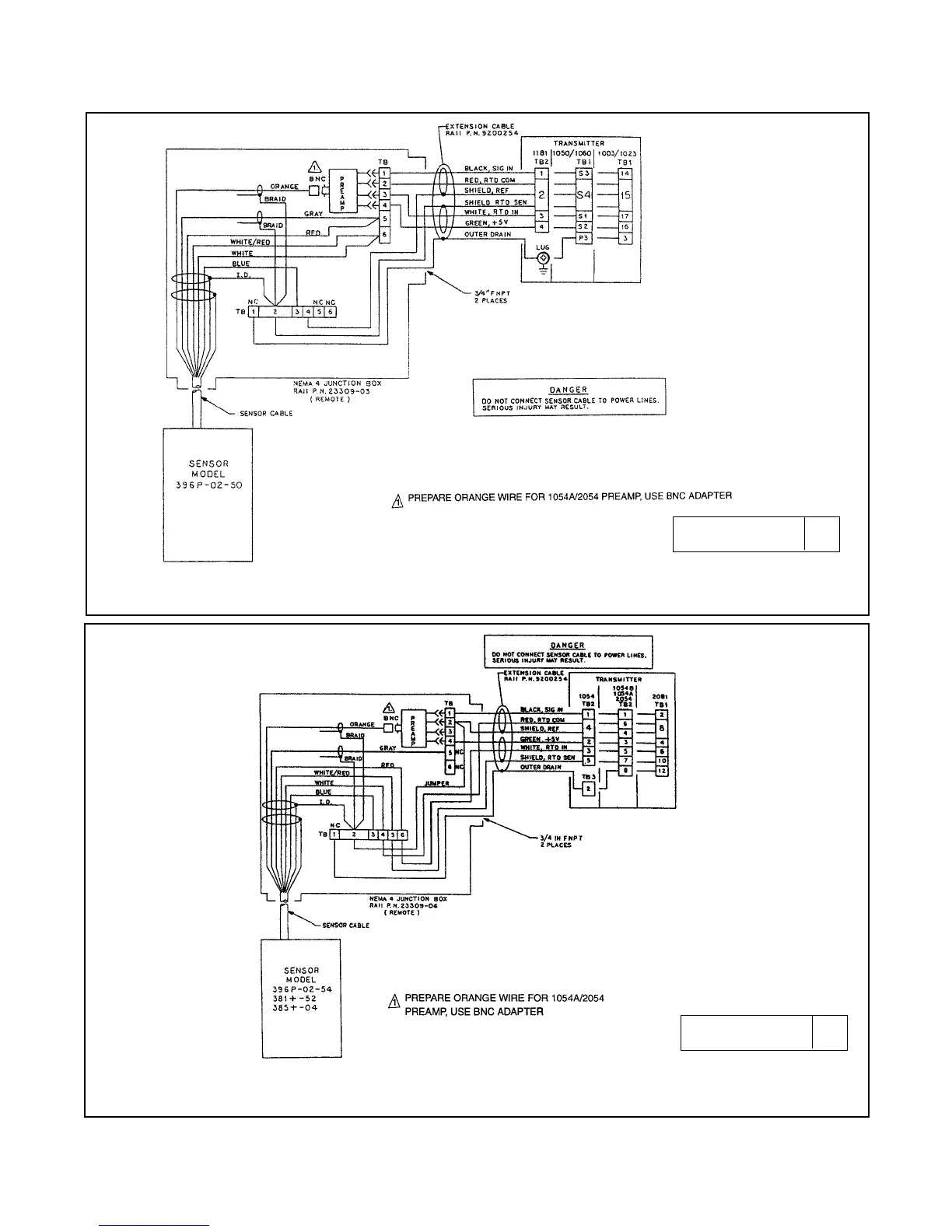

FIGURE 4-22. Wiring Details Model 396P-02-50 for use with Junction Box
(PN 23309-03) and
Remote Preamplifier, Extension Cable
(PN 9200254).
DWG. NO. REV.
40396P25 A
FIGURE 4-23. Wiring Details Model 396P-02-54 for use with Junction Box (PN 23309-04) and
Remote Preamplifier (PN 22698-03), Extension Cable (9200254).
DWG. NO. REV.
40396P24 A
