Section 2: Installation
February 2014
Installation

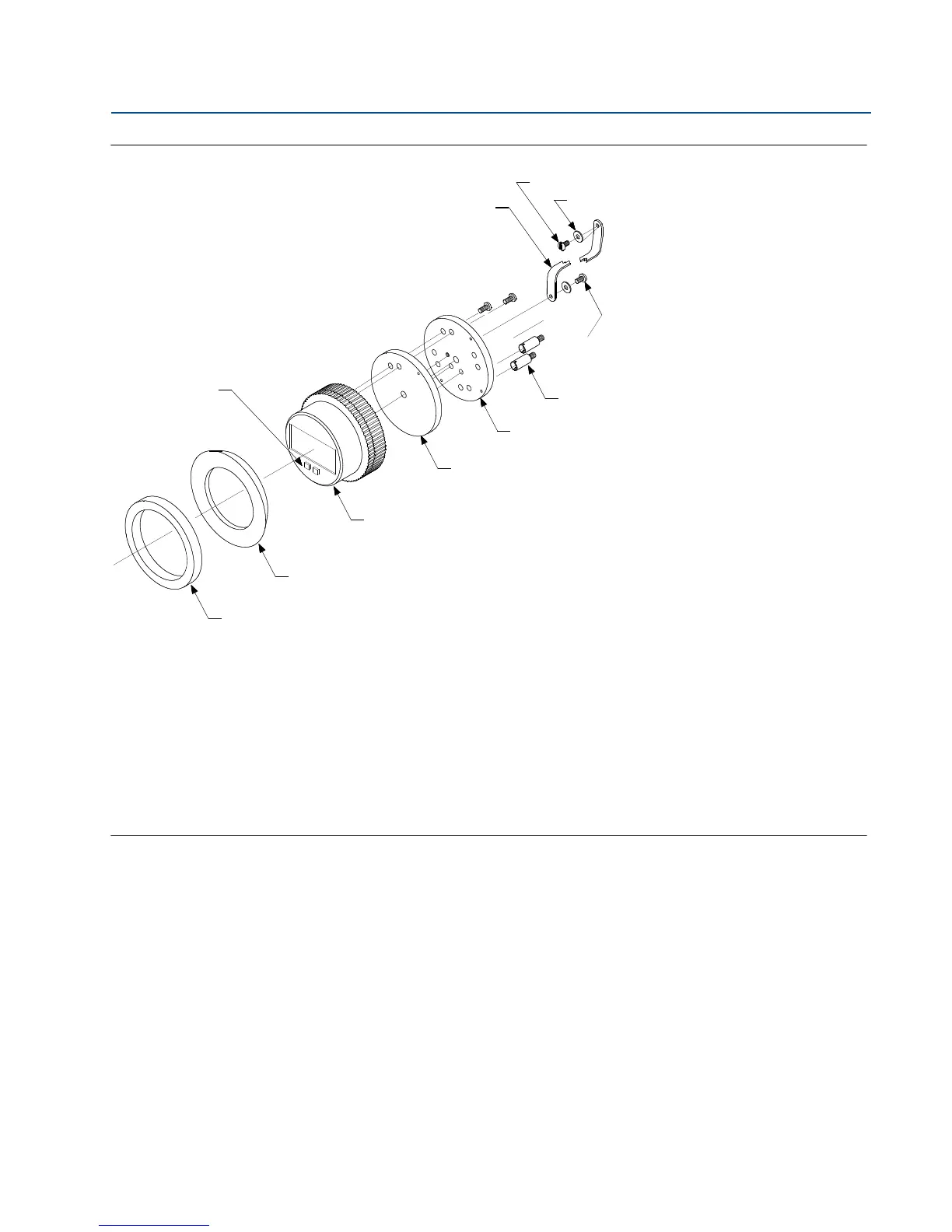

Figure 2-2. LCD display exploded view
A. Retaining Straps
B. Mounting Screw into Housing
C. Washer for Retaining Strap
D. Mounting Screws into Mounting Plate
E. Terminal Screws (2)
F. Mounting Plate
G. Spacer Plate
H. LCD Display
I. Bushing
J. Foam Spacer
K. Configuration Buttons
