Custom Control Button Setup
When you assign a custom control to a button, you can
give that button a unique name and assign an icon to it.
The images for the icons must be on a USB drive in the
frame when you assign them. Once assigned the icons
are stored in the frame and the USB can be removed.
Each of the tabs can be named.
The conguration of the tabs and custom control
assignment to buttons are stored with the switcher
personality settings.
To Set up the Custom Control Buttons
If you want to assign icons to the custom control buttons,
you must have the images you want to use for the icons
stored on a USB drive installed in the frame. After the
images have been assigned you can remove the USB
drive.
1.
Click the icon in the upper right corner of the
window.

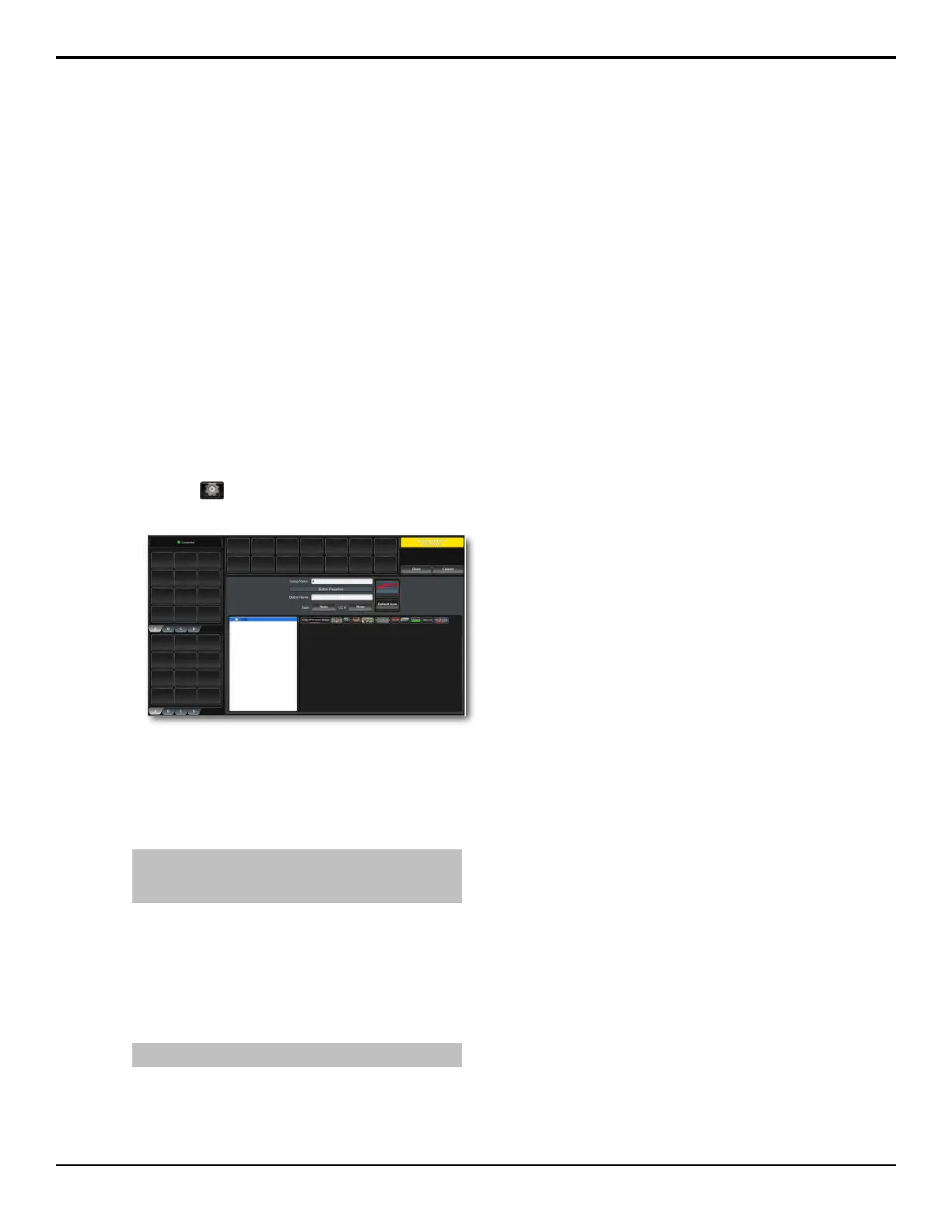

Figure 18: ViewControl Edit Button
2.
Press the custom control button that you want to set
up.
3.
Enter a name for the button in the Button Name
eld.
Tip: You can change the name of a tab by selecting a
button on the tab and then entering a new name in the
Group Name field.
4.
Click the Bank button and select the number of the
bank you want to select a custom control from.
5.
Click the CC X button and select the number of the
custom control you want to assign to the button.
6.
Navigate the les on the USB drive and click the
image you want to assign as the icon for the button.
Tip: Press Default Icon to switch back to the default icon.
7.
Set up additional custom control buttons as required.
8.
Press Done when you are done setting up custom
control buttons.
Carbonite Operation Manual (v13.0) — ViewControl • 25
