AC-215 Single and Double Door Access Control Unit
Hardware Installation Guide
11
ACU Type

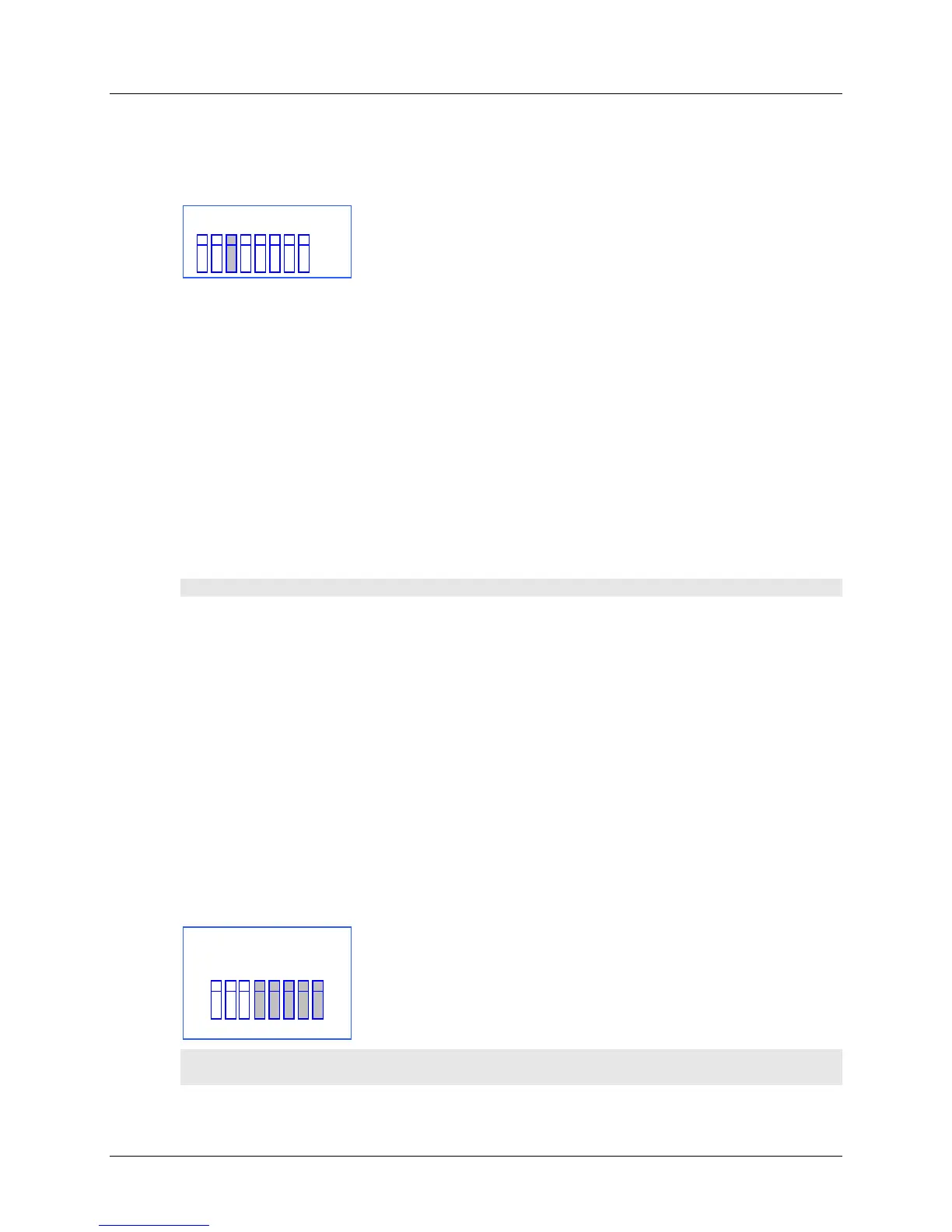

The ACU type is defined using the third dipswitch. Both the single and double can be set.
Off - defines single door controls
On - defines a double door controls
Single Door Controller
This access type has two readers, IN and OUT, as follows:
Outputs: Door lock strike Inputs: Release to exit
Auxiliary output
Door monitor input
Alarm output
Tamper input
General purpose output
General purpose input
For more information refer to the Input Output chapter, page 6.
Double Door Controller
This access type has two readers, IN and OUT, as follows:
Outputs: Door 1 lock strike Inputs: Release to exit door1
Door 1 alarm output Door 1 monitor input
Door 2 lock strike Release to exit door 2
Door 2 alarm output
Door 2 monitor input
ACU Addressing
The dipswitch is used to select the binary coded ACU address.
The ACU address is defined in the AxTrax AS-525 software. For successful
communications, the dipswitch must be defined with the same address.
1 2 3 4 5 6 7 8
