Rosslare AC-215 Hardware Installation Guide

AC-215 Single and Double Door Access Control Unit
Hardware Installation Guide
1
I
I
n
n
t
t
r
r
o
o
d
d
u
u
c
c
t
t
i
i
o
o
n
n
t
t
o
o
A
A
C
C
-
-
2
2
1
1
5
5
A
A
C
C
U
U
The AC-215, access control system, and the AxTrax AS-525 PC software are combination that
gives full control over the entrances of your premises. AxTrax AS-525 software supports
control for both single and double door entrances where up to 255 AC-215 Access Control
Units (ACU) can be monitored.
The AC-215 employs the latest technology to meet the requirements of the market. One or two
doors controller when using the AC-215 as a standalone controller, and up to 512 doors/256
networks and 5000 users using the AC-215 as a networked controller using the AxTrax™
AS-525 software.
AxTrax AS-525 software, which is user friendly and intuitive, defines settings and event logs.
A single server, communicating to and from the ACU, can serve unlimited network clients.
The system’s database is saved in the server. The database can be set to backup and can
import/export previous configurations. Clients are able to modify the database, for example,
define new employees and/or their access permissions.
The AxTrax™ AS-525 can run under Windows 98, 2000, NT or XP operating systems

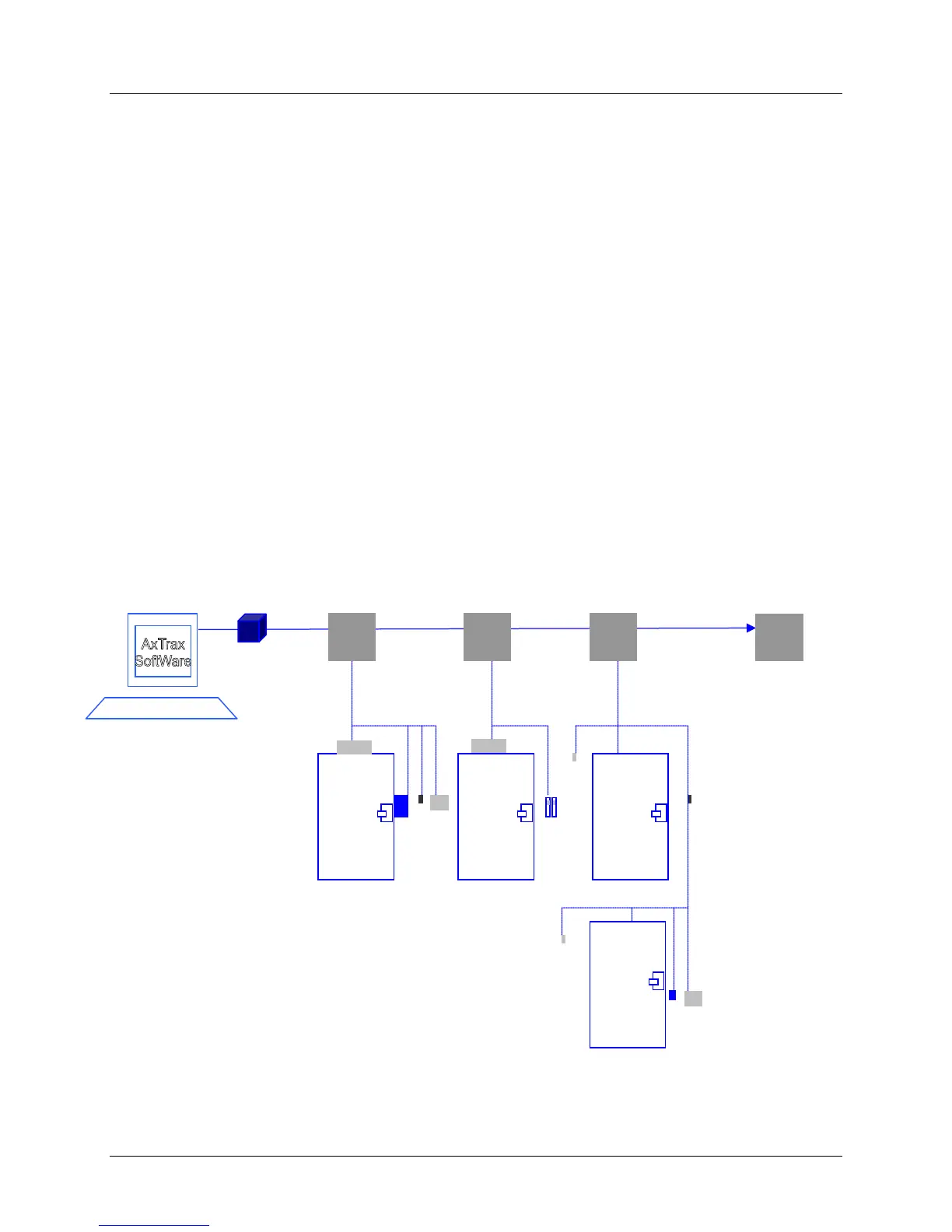

The following diagram is an example of how the AxTrax AS-525 and AC-215 system can be set
up.
Door
Monitor
RS485/232
Converter
AC-215
Single Door
Up to 32 ACUs
Reader,
Keypad
&
Door
Release
Door 1
Door 2
Maglock
Exit
button
Reader
Door 3
Door 4
Exit
button
Reader,
Keypad
&
Door
Release
2 readers
for
Reader In
&
Reader
Out
RS485
AC-215
AC-215
Single Door
AC-215
Double Door
RS485
RS485
RS232
