Rosslare AC-215 Hardware Installation Guide

AC-215 Single and Double Door Access Control Unit
Hardware Installation Guide
16
W
W
i
i
r
r
i
i
n
n
g
g
Inputs

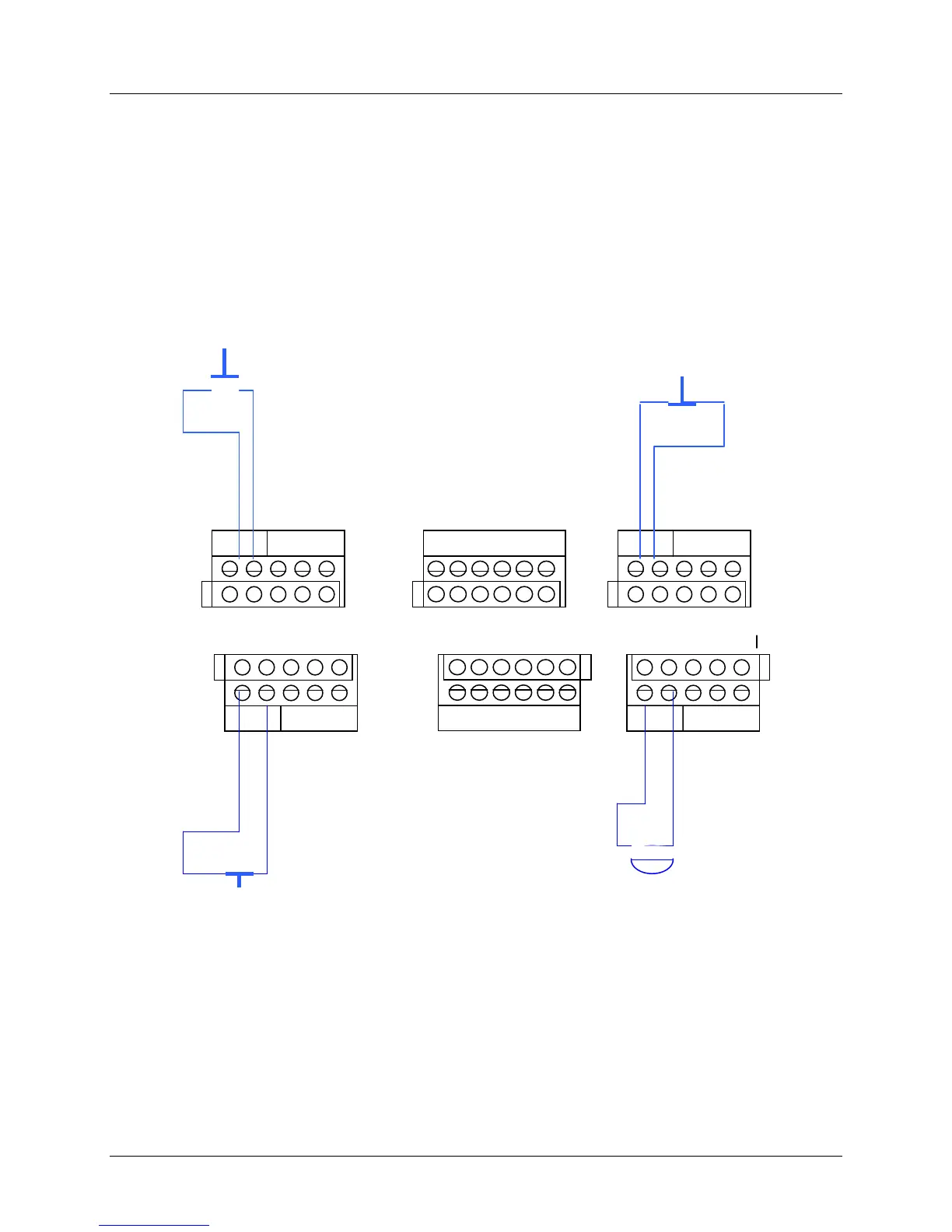

The following diagrams illustrate wiring for four AC-215 inputs. For further details refer to the
Inputs and Outputs chapter page 6.
Error! Bookmark not defined.
IN 2A OUT 2A
READER 2
IN 2 OUT 2
General purpose input
Normally opened switch
Tamper input
Normally closed switch
IN 1A 0UT 1A
READER 1
IN 1 OUT 1
Door monitor
Normally closed
Release to
Exit normally
opened switch
