Rosslare AC-215 Hardware Installation Guide

AC-215 Single and Double Door Access Control Unit
Hardware Installation Guide
17
Outputs

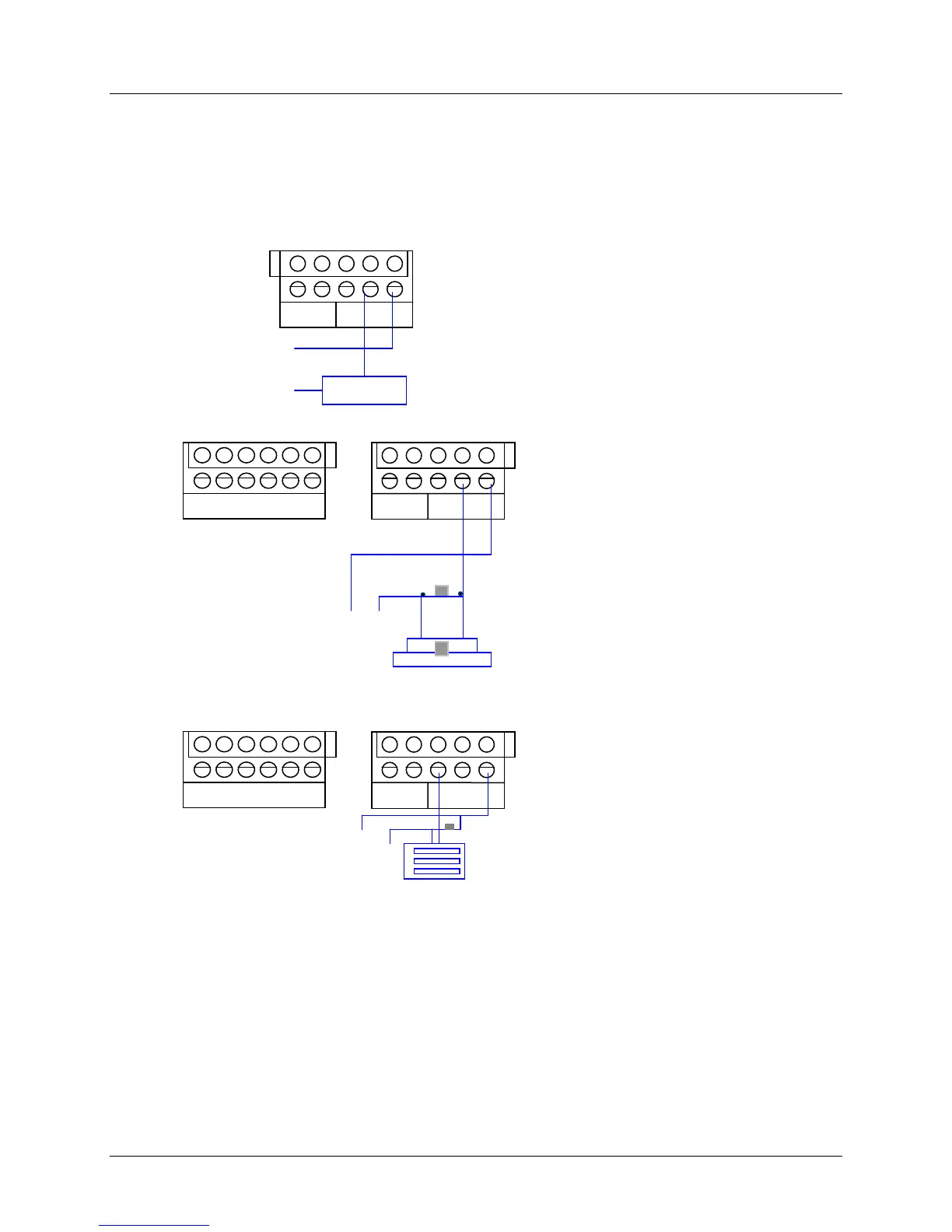

The following diagrams illustrate wiring for two main types of 12VDC electric release
mechanisms. Other electrical devices can be switched using the voltage free relay contacts.
Door Lock – Fail Closed
Door Lock – Fail Open
READER 1
IN 1 OUT 1
Fail open
Diode IN4004
(-) 12VDC
(+) 12VDC 1.5A
IN 1A 0UT 1A
(-) 12-24 AC/DC
Alarm
(+) 12-24AC/DC
READER 1
IN 1 OUT 1
Lock
Diode IN4004
(+) 12VDC
(-)
