AC-215 Single and Double Door Access Control Unit
Hardware Installation Guide
25

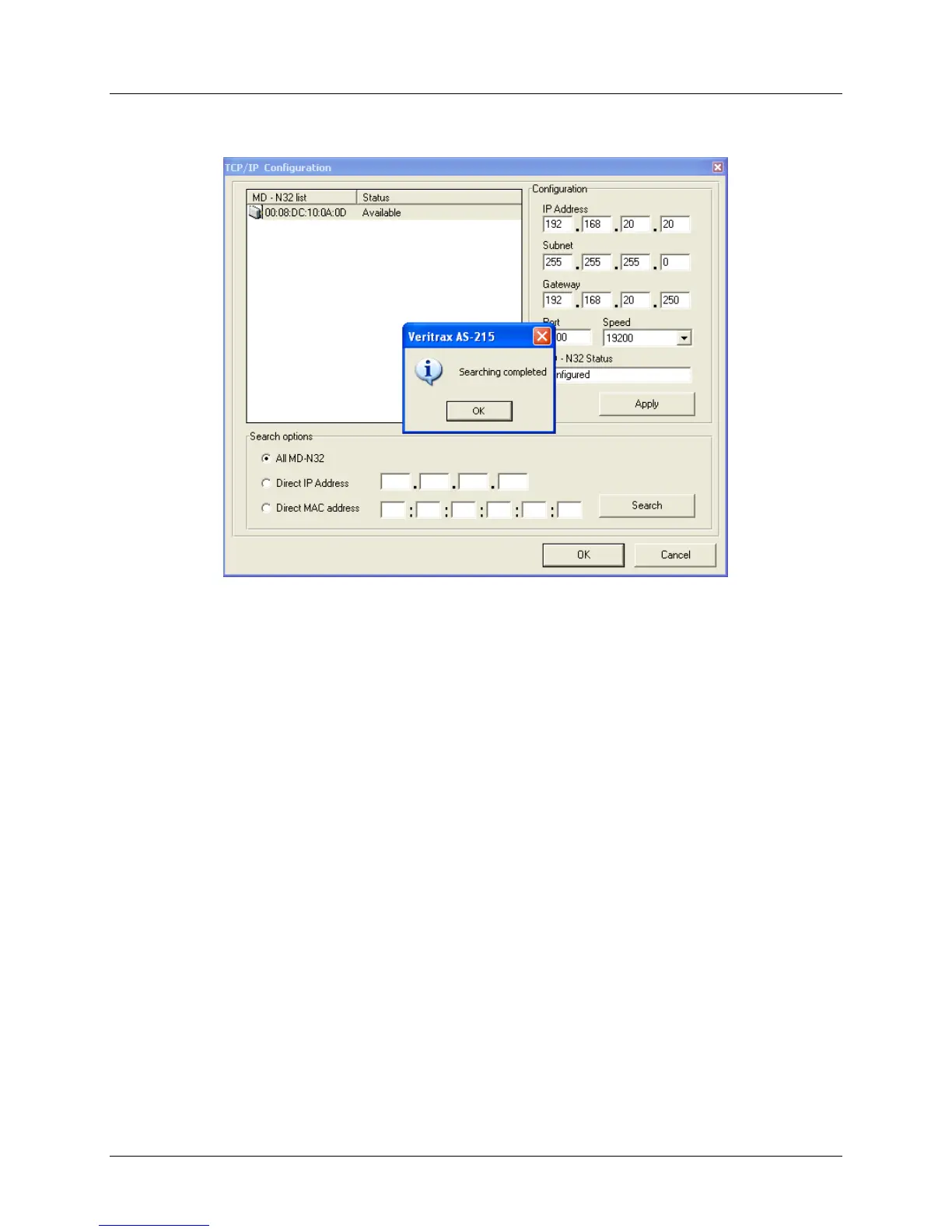

3. Click OK.
4. Select the suitable MAC address from the MD-N32 list (The MD-N32's MAC address should be
labeled on the MD-N32's box).
At the "Configuration" area, type the IP Address and Subnet which the network administrator
supplied you.
At the "Port" field type 1000.
At the "Speed" area select the speed of your serial connection (9600 / 19200 / 38400 / 57600).
Click the "Apply" key to send the configuration to the unit and wait for following message:
