Rotabroach Element 30 Series - 13) Wiring Diagram

Element 30 Manual Original instructions Dec 2014
12

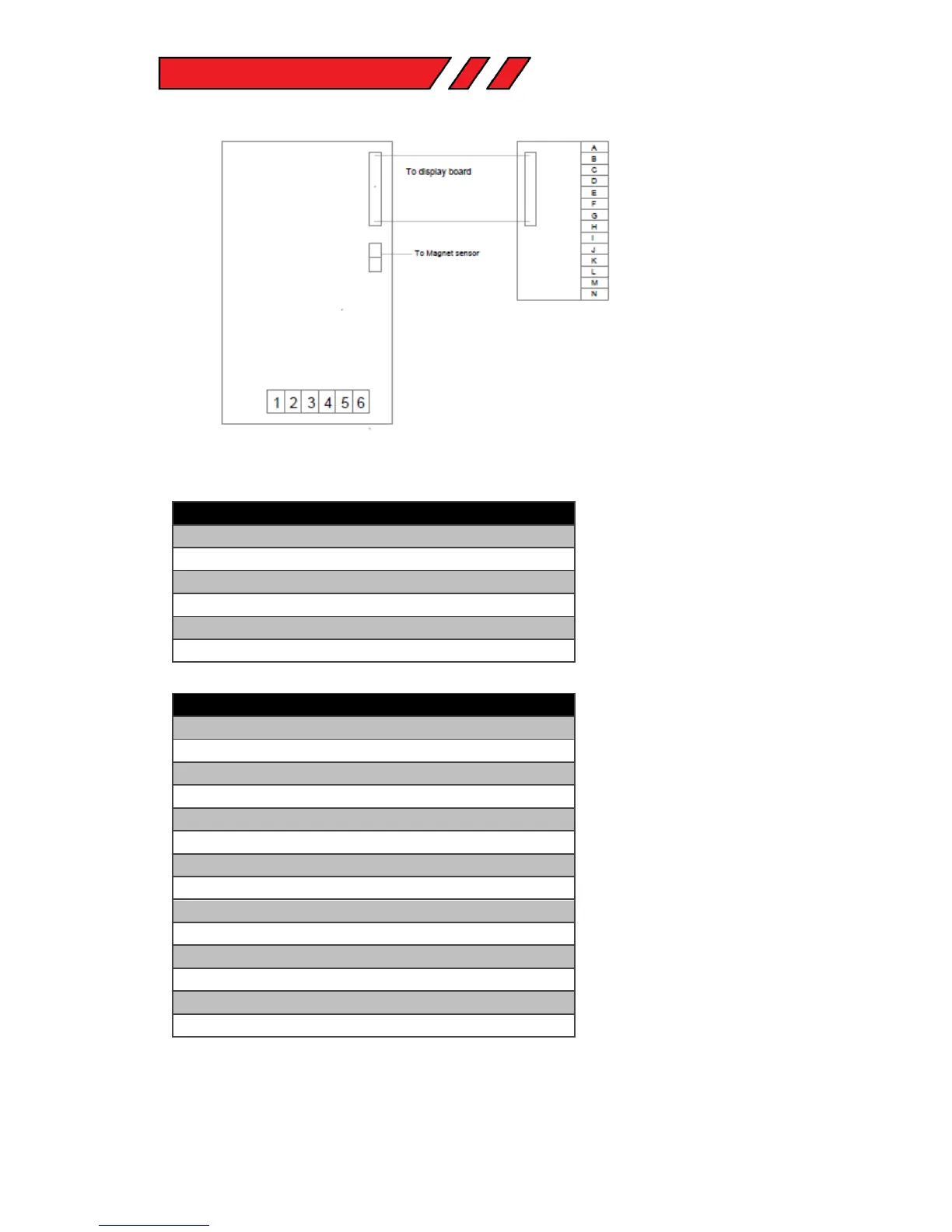

13) WIRING DIAGRAM
No
Function
Wire Colour
A
Power 'ON' LED 0V
Red
B
Power 'ON' LED +12V
Red
C
Magnet 'ON' LED 0V
Red
D
Magnet 'ON' LED +12V
Red
E
Magnet Switch 0V
Red
F
Magnet Switch +12V
Red
G
Motor 'Start' LED 0V (Green)
Red
H
Motor 'Stop' LED +12V (Red)
Red
I
Motor 'Stop' Switch 0V
Red
J
Motor 'Stop' Switch +12V
Red
K
Motor 'Stop' LED 0V (Red)
Red
L
Motor 'Start' LED +12V (Green)
Red
M
Motor 'Start' Switch 0V
Red
N
Motor 'Start' Switch +12V
Red
No
Function
Wire Colour
1
Magnet Negative Output
Black
2
Magnet Positive Output
Red
3
Mains Neutral Input
Blue
4
Motor Neutral Output
Black
5
Motor Live Output
Red
6
Mains Live Input
Brown
Control board
Display Board
