Rotax 447 UL SCDI - Engine Components, Engine Views, Numbering of Cylinders; 1) 447 Ul Scdi

INSTALLATION MANUAL
AIRCRAFT ENGINES
page 6 - 2
Initial issue, May 01/99
Effectivity: 447 UL SCDI, 503 UL DCDI, 582 UL DCDI /mod. 99
d00316
4
02781
6
6.3) Engine components, engine views, numbering of cylinders

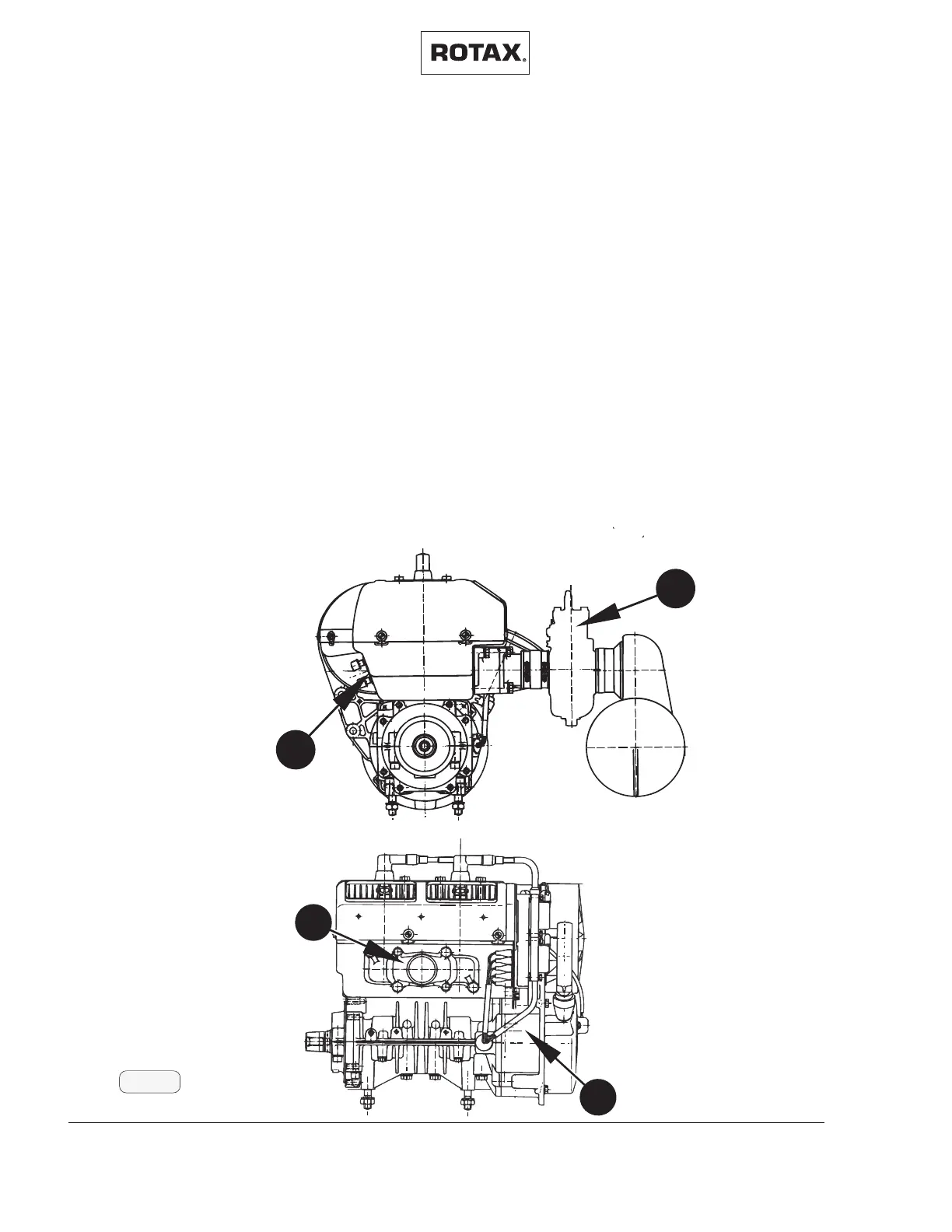

See fig. 1, 2 and 3.
PTO power take off side
MS magneto side
A points of attachment for engine transport
Cyl. 1 cylinder 1
Cyl. 2 cylinder 2
(1) propeller flange
(2) propeller gear box
(3) intake manifold
(4) carburetor
(5) coolant pump
(6) exhaust socket
(7) electric starter
(8) fresh oil lubrication pump
(9) electronic modules of ignition
unit
(10) ignition housing
6.3.1) 447 UL SCDI
10
3
Cyl. 1 Cyl. 2
A
A
02782
PTO
MS
fig. 1
