Rotec Versatech 1100 - Trendelenburg and Reverse Trendelenburg Operation

21

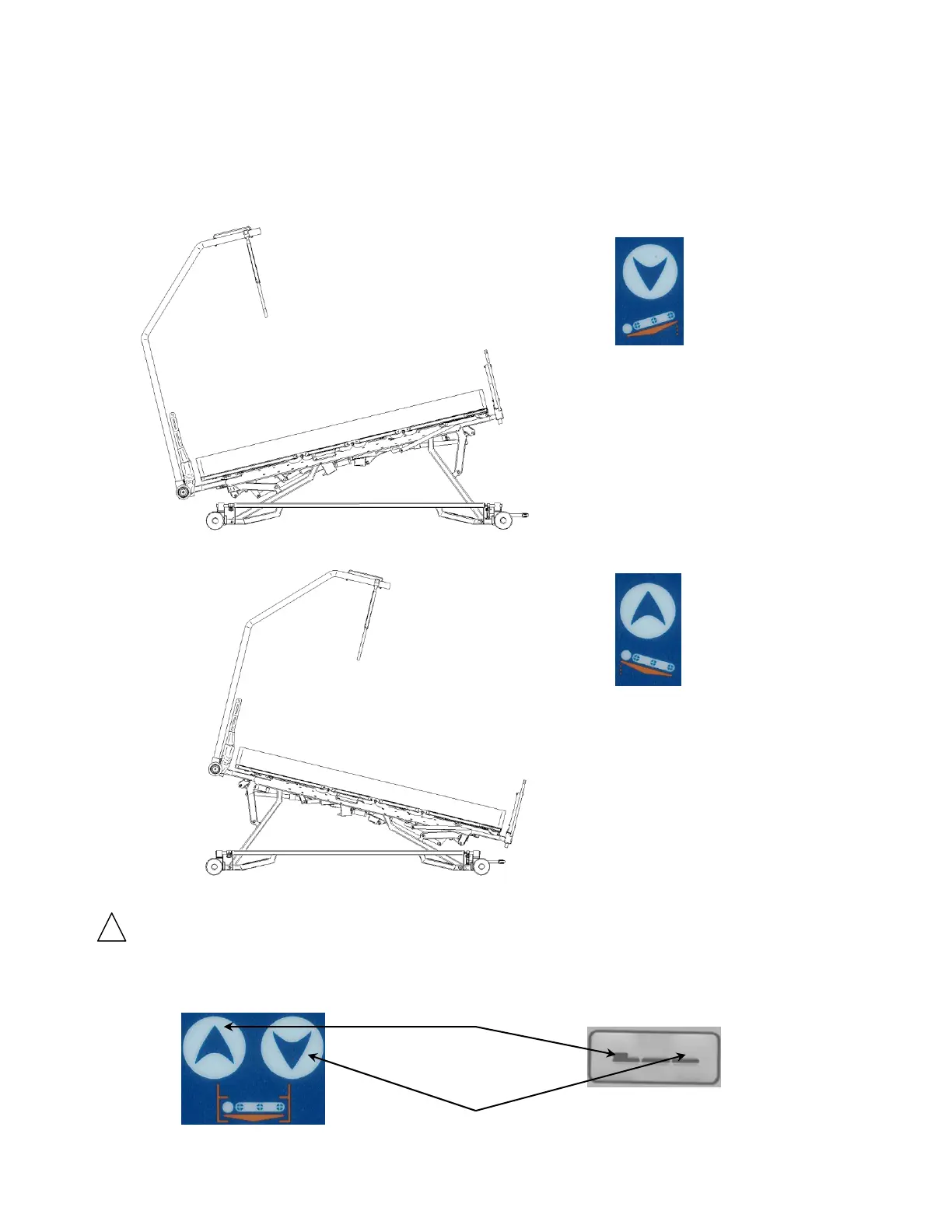

3.4 Trendelenburg and reverse Trendelenburg
The arrows on the panel of the nurse control correspond to the position of the head
section compared to the foot section, thus:
- To obtain the Trendelenburg position: Press :
- To obtain the reverse Trendelenburg position : Press :
Warning : Ensure that the Trapeze bar does not come in contact with the wall. To do
so, place the bed at a minimum of 15 in (380mm) from the wall before proceeding.
To put back to horizontal position, raise or lower the bed by pressing either:
- Increase the height
- Decrease the height
!
