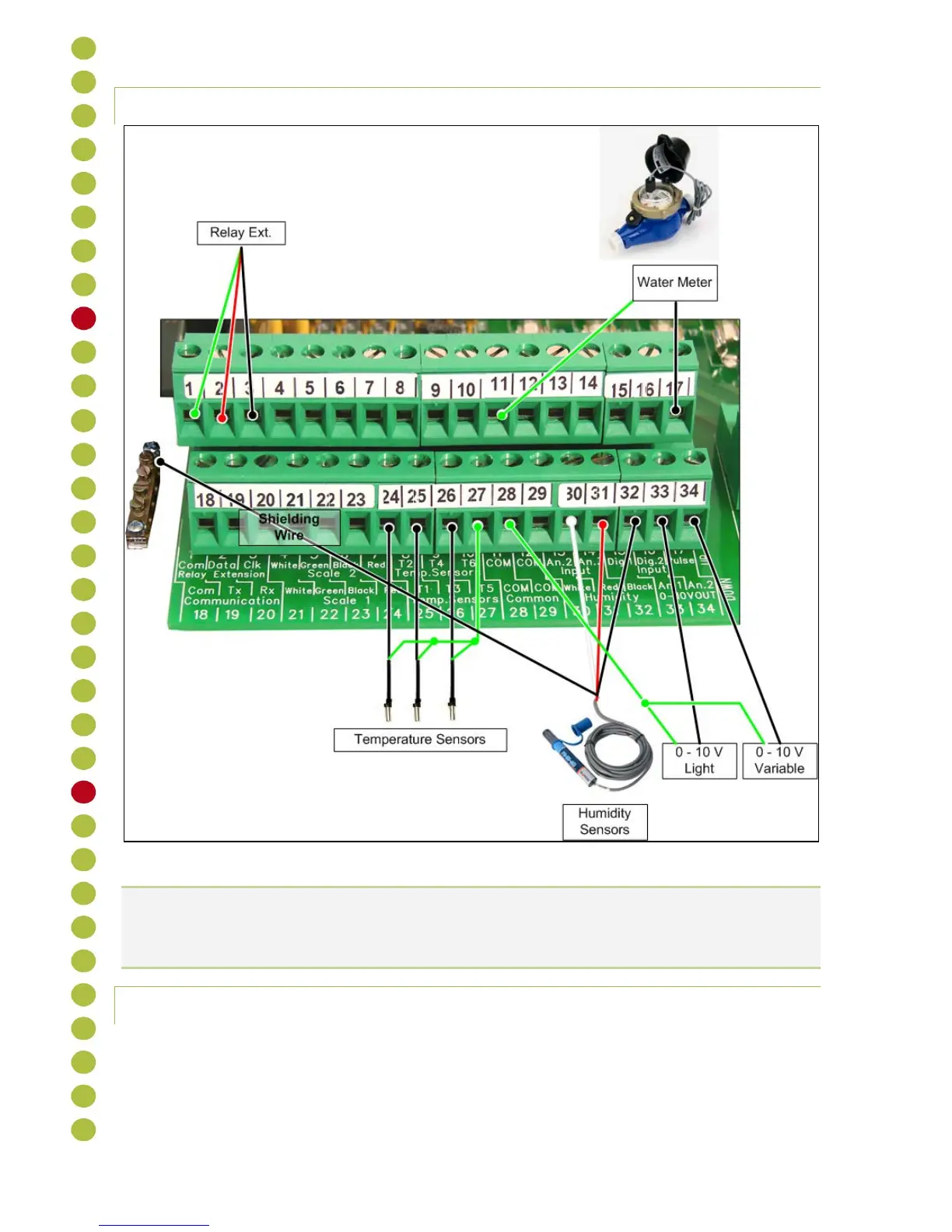

4.2.5 AC-2000 Plus Low Voltage Wiring (Terminals)
NOTE: Connect each cable’s shielding wire to the grounding strip. The drawing above is an example
only.
NOTE: Users employing a CO2 sensor, refer to Appendix: Installing a CO2 sensor.
4.2.6 AC-2000 Plus Communication
AC-2000 Plus is wired to a MUX/Communicator via:
• an internal communication card (P/N C-AC-2000-C232). Connect the communication wires
shown in Section 4.2.5 directly to the MUX / Communicator OR
• an external RCLP card (see MUX / RCLP Wiring page 17, for wiring instructions)
