9 AC-2000 | 8.10/8.11

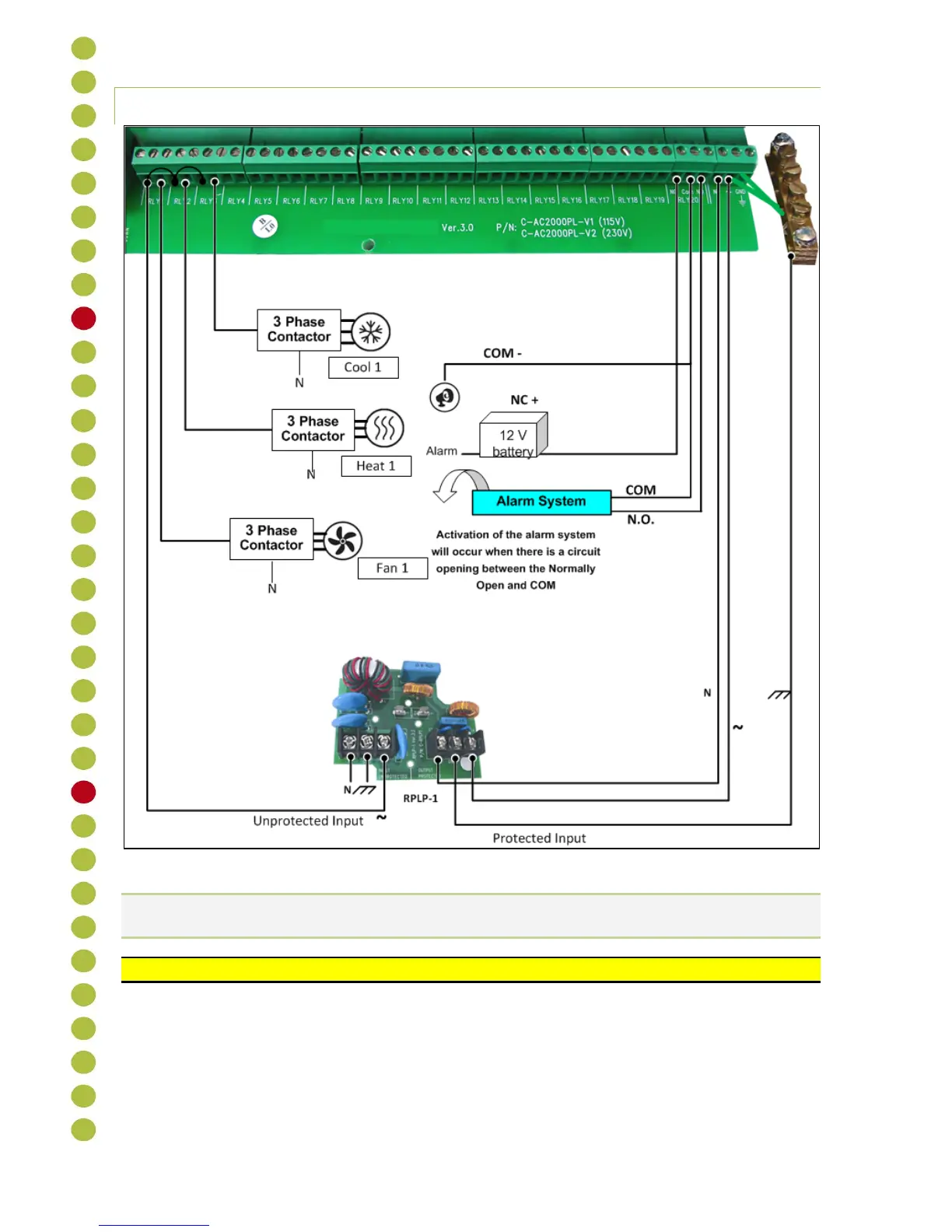

4.2.3 AC-2000 Plus High Voltage Wiring (Relays)
NOTE: The device connections (fan, heat, cool, etc.) that are shown in the drawing, are examples
only!
CAUTION Connect the AC-2000 Plus power input to the protected output only!
