Disassembling and draining the condensate treatment unit
1. Open the fixing belt (fig. 8-3, pos. 3).
2. Lift the stabilising plate (fig. 8-4, pos. 1) and pull out the connecting muff (fig. 8-4, pos. 2) from the condensate drain.
3. Lift up condensate treatment unit and drain through the connecting hose (fig. 8-5).
4. Place collector container under the hose connection. Pull out the flexible connecting hose from the condensate treatment unit
(fig. 8-6).
5. Pull the condensate treatment unit out from under the boiler.
CAUTION!
Danger of chemical burns! The condensate treatment unit contains acid which can cause injury on skin
contact.
• Wear protective clothing when working on condensate treatment unit (protective goggles, rubber hand
gloves).
• If your skin comes in contact with anything, wash the affected area immediately with tap water.
• If the chemicals come in contact with eyes, immediately wash with tap water and consult an
ophthalmologist.

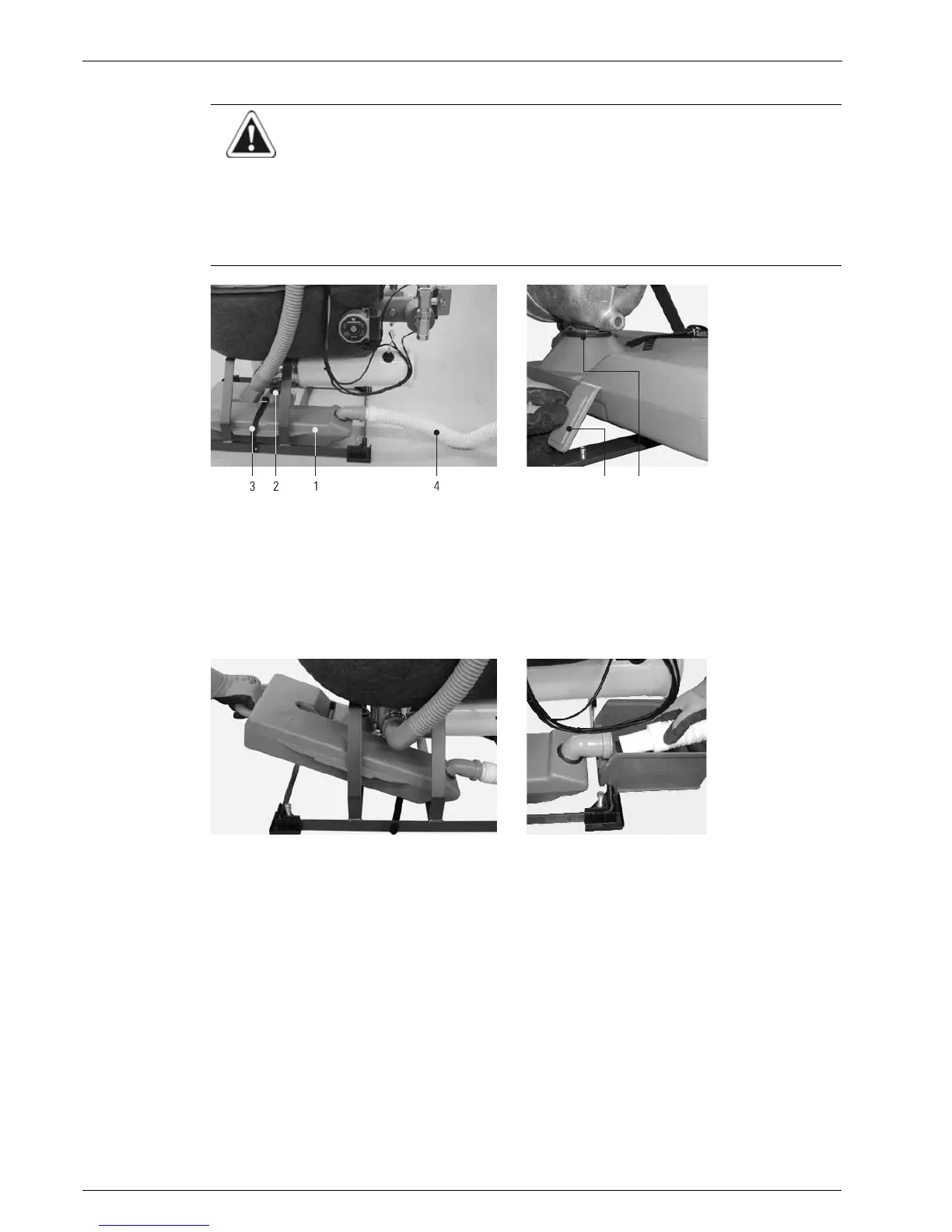

Fig. 8-3 Connections for condensate treatment unit Fig. 8-4 Condensate treatment unit –Wrapped connections
1 Condensate treatment unit
2 Wrapped connection on flue gas arc
3 Fixing belt with snap closing
4 Flexible connecting hose
2 Wrapped connection on flue gas arc
5 Stabilising plate
Fig. 8-5 Draining the condensate treatment unit Fig. 8-6 Pull out connecting flexible hose
2
5
