3 Set-up and installation
Incorrect set-up and installation would make the manufacturer's guarantee void. If you have questions, please contact our
Technical Customer Service.
3.1 Dimensions and connection dimensions
WARNING!
Units which have been set-up and installed incorrectly may not operate properly and can be a health and safety
risk endangering human life.
• Set-up and installation of the oil condensing boiler should only be carried out by authorised and trained
heating engineers.

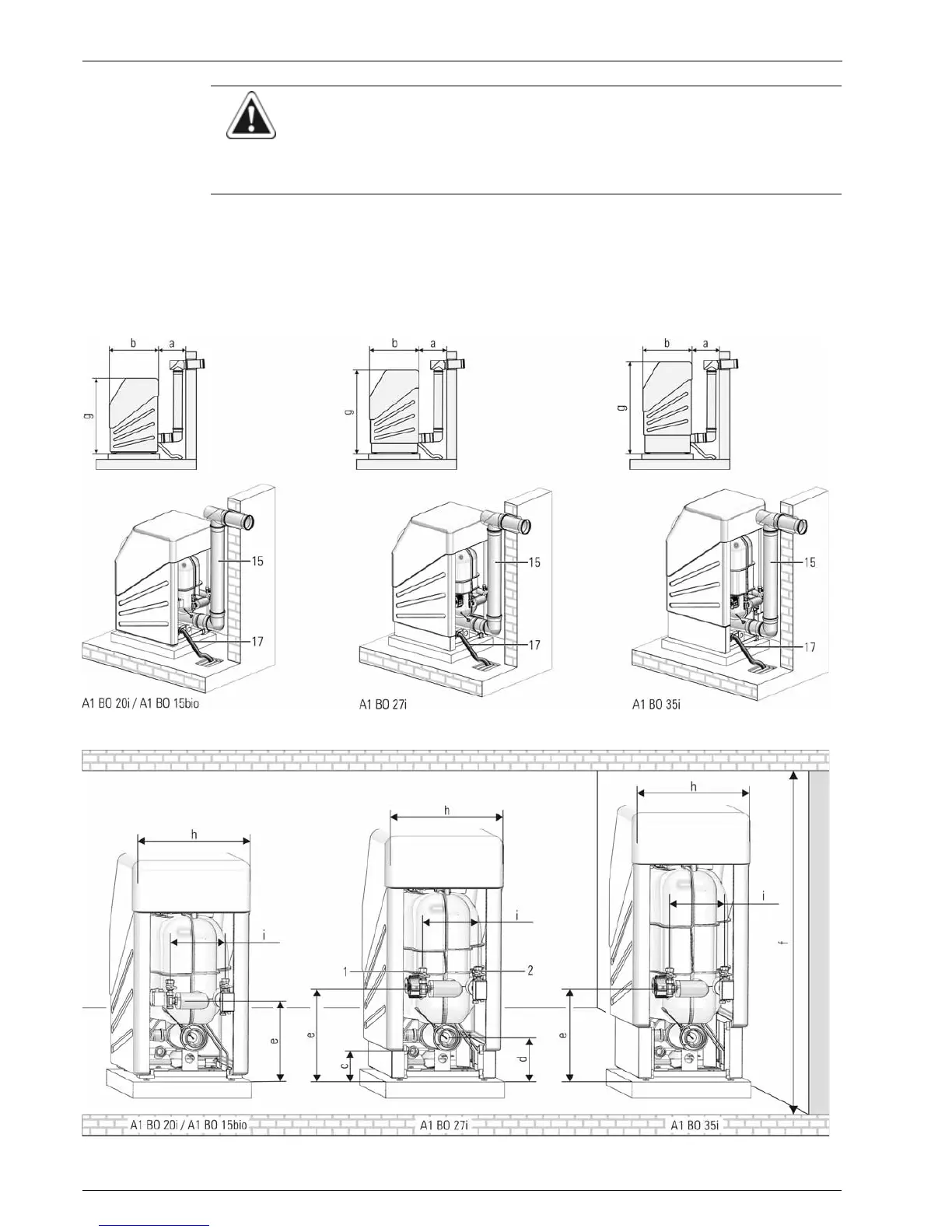

Fig. 3-1 Dimensions of the model versions, side view
Fig. 3-2 Dimensions and connection dimensions of the model versions, rear view
