Operation manual
11
RKHBH/X016BB
Indoor unit and options for air to water heat pump system
4PW62577-1 – 10.2010
Programming space cooling, quiet mode, or booster heater
mode
(1)

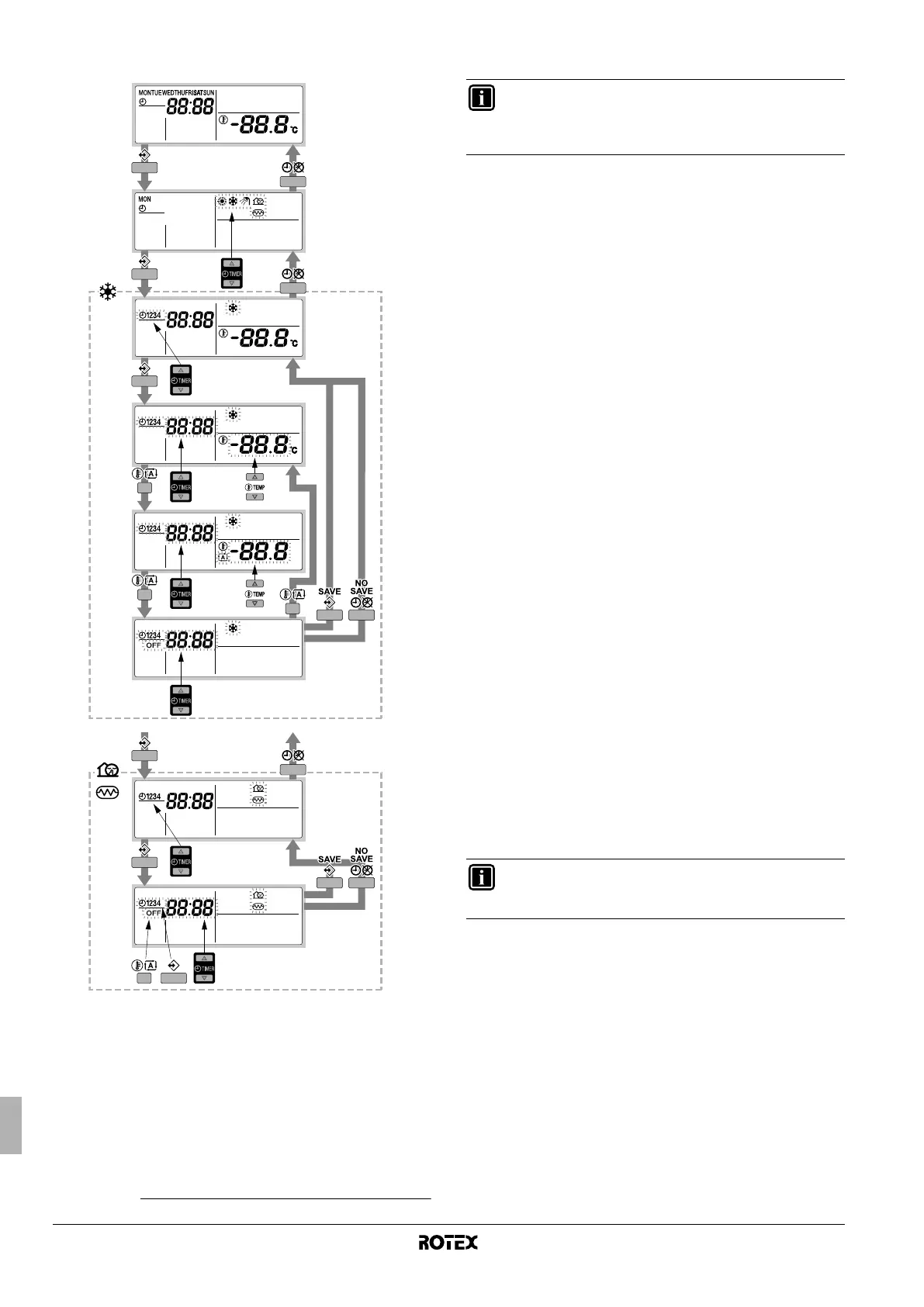

Programming space cooling, quiet mode, or booster heater mode
(1)
is carried out as follows:
1 Press the < button.
The actual mode is blinking.
2 Use the pi and pj buttons to select the mode you want
to program (space cooling c, quiet mode s, or booster heating
m
(1)
).
The selected mode is blinking.
3 Press the < button to confirm the selected mode.
The first programmed action is displayed.
4 Use the pi and pj buttons to consult the programmed
actions.
This is called the readout mode. Empty program actions (e.g. 3
and 4) are not displayed.
5 Press the < button for 5 seconds to enter the programming
mode.
6 Use the < button to select the action number you would like to
program or to modify.
7 Use the pi and pj buttons to set the correct action time.
8 Use the ba button to select:
■ For space cooling:
- x: switch cooling and the controller off.
- 9: set the temperature by means of the bi and
bj buttons.
- a: to select automatic temperature calculation.
■ For quiet mode and booster heater mode
(1)
: use the ba
button to enable or disable the x action.
9 Repeat steps 6 to 8 to program the other actions of the selected
mode.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
10 Press the < button for 5 seconds to store the programmed
actions.
If the < button is pressed when action number 3 is displayed,
actions 1, 2 and 3 are stored but 4 is deleted.
You automatically return to step 4. By pressing the pr button
several times, you return to previous steps in this procedure and
finally return to normal operation.
(1) Only applicable for tank with built-in electrical booster heater (RKHW*).
5 sec
5 sec
5 sec
5 sec
INFORMATION
Returning to previous steps in the programming procedure
without saving modified settings is done by pressing the
pr button.
INFORMATION
Programming the booster heater operation
(1)
time is only
valid if field setting [4-03]=1, 2, or 3.
