Rotex Solaris RPS3 P2 User Manual

8 x Technical data
50
FA ROTEX Solaris RPS3 P2 - 06/2012

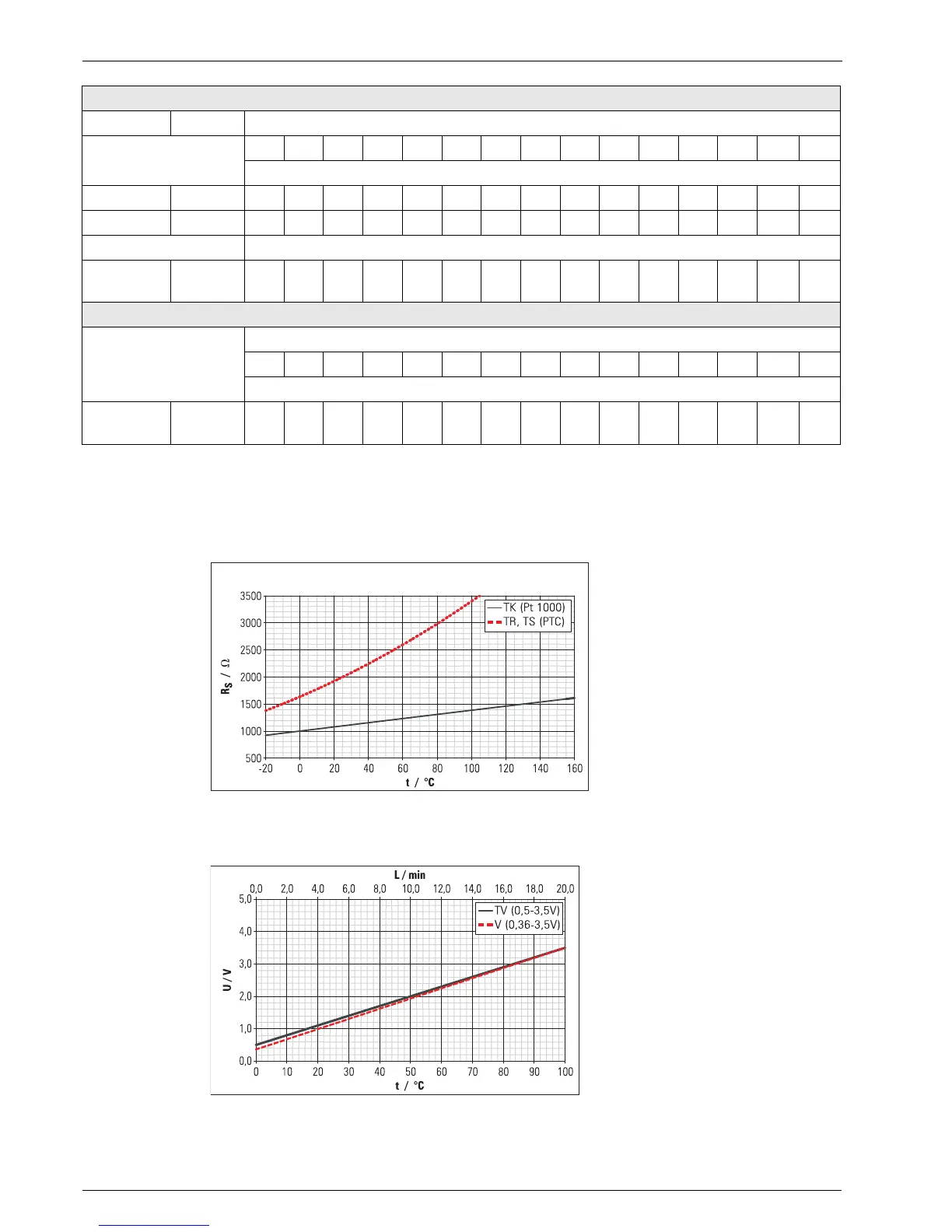

8.2 Diagrams
Temperature sensor
Solaris sensor Sensor type Measured temperature in °C
-20-100 102030405060708090100110120
Sensor resistance in Ohm according to standard or manufacturer's indications
TR, TS PTC 1386 1495 1630 1772 1922 2080 2245 2418 2598 2786 2982 3185 3396
TK PT-1000 922 961 1000 1039 1077 1116 1155 1194 1232 1270 1308 1347 1385 1423 1461
FlowSensor Sensor voltage in V according to manufacturer's specifications
TV
(0.50 -
3.50 V)
0.50 0.80 1.10 1.40 1.70 2.00 2.30 2.60 2.90 3.20 3.50
Flow rate
FlowSensor
Measured flow in l/min
0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0
Sensor voltage in V according to manufacturer's specifications
V
(0.36 -
3.50 V)
0.36 0.67 0.99 1.30 1.62 1.93 2.24 2.56 2.87 3.19 3.50
Table 8-4 Table of Solaris sensors
R
S
Sensor resistance (PTC, Pt 1000) t Temperature
Fig. 8-2 Resistance characteristics of Solaris sensors
L Flow rate
t Temperature
U Sensor output voltage
Fig. 8-3 Characteristics of FlowSensor
