Rotex Solaris RPS3 P2 User Manual

8 x Technical data
49
FA ROTEX Solaris RPS3 P2 - 06/2012

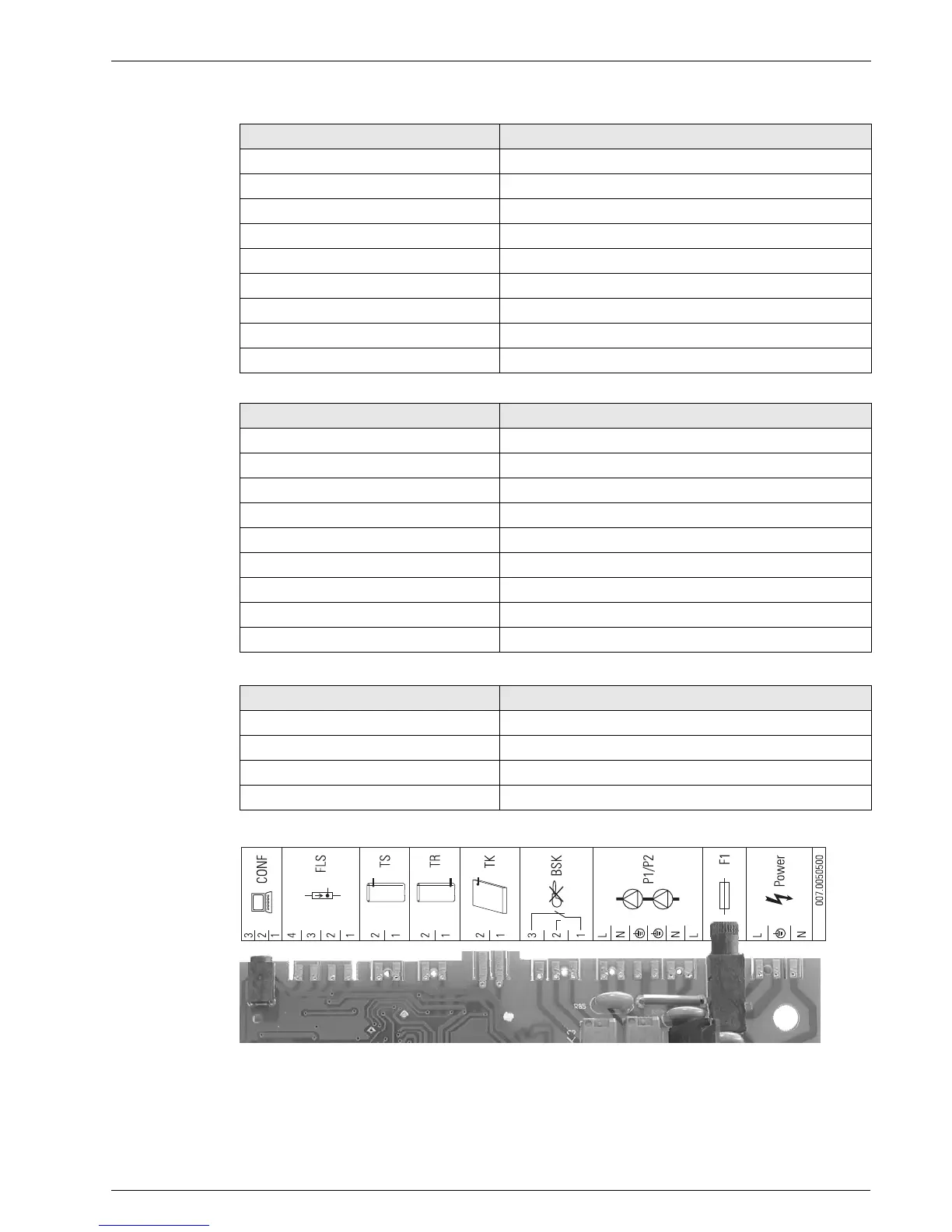

8 Technical data
8.1 Basic data
Table 8-1 Technical data for control and pump unit
Table 8-2 Technical data for pressure station
Table 8-3 Technical data for plate heat exchanger
Control and pump unit RPS3 P2
Dimensions W x T x H 230 x 815 x 142 mm
Operating voltage 230 V / 50 Hz
Tank circulation pump Grundfos UPS 15-65 CIL2
Max. electrical power consumption of pump 20 - 90 W (modulating)
Control unit Digital differential temperature controller with text display
Max. electric power consumption of the control unit 2 W
Solar panel temperature sensor Pt 1000
Storage cylinder and return flow temperature sensor PTC
Feed temperature and flow sensor (optional) FLS 20
RDS1 pressure station
Dimensions W x T x H 240 x 410 x 130 mm
Operating voltage 230 V / 50 Hz
Solar panel circulation pump Grundfos UPS 15-65 CACAO
Max. electrical power consumption of pump 52 W
Max. operating pressure 6 bar
Max. pump capacity 2 m³/h
Pressure gauge 0 - 10 bar
Temperature range 0 - 120 °C (short-term 160 °C)
Connections 4x 1 ¼" female for Ø 22 clamping ring bolt
RPWT1 plate heat exchanger
Dimensions W x T x H 240 x 410 x 130 mm
Max. operating pressure 6 bar
Temperature range 0 - 120 °C (short-term 160 °C)
Connections 4x 1 ¼" female for Ø 22 clamping ring bolt
CONF Programming socket for software update
FLS FlowSensor
TS Storage tank temperature sensor
TR Return flow temperature sensor
TK Collector temperature sensor
BSK Burner inhibit contact
P1/P2 Operation and booster pump
F1 Fuse
Power Mains supply
Fig. 8-1 Connection assignment
