Rotex Solaris RPS3 P2 User Manual

2 x Product description
9
FA ROTEX Solaris RPS3 P2 - 06/2012
RDS1 pressure station
RPWT1 plate heat exchanger
APWT1 connector kit for RPWT1 plate heat exchanger
RDS1 ( 162030)
Pressure station including connection piping with Grundfos Solar
25-65 circulation pump, flowmeter with 2x KFE cocks,
integrated air separator, safety group with pressure gauge,
installation accessories.

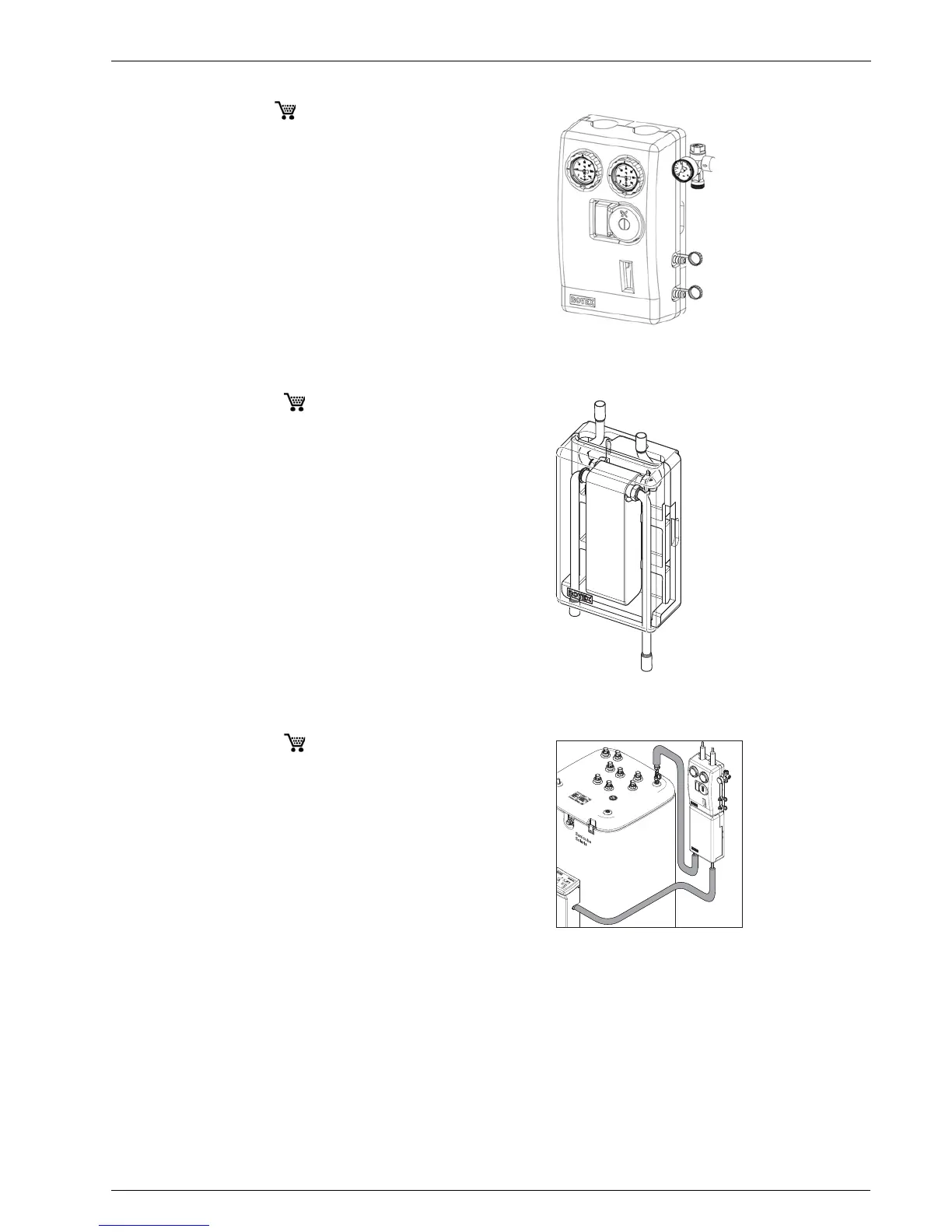

Fig. 2-3 RDS1 pressure station
RPWT1 ( 16 20 31)
For connecting the RDS1 pressure station to an unpressurised
hot water storage tank.
– Heat output 6 kW.
– For pressurised solar systems with up to 5 solar panels.
Fig. 2-4 RPWT1 plate heat exchanger
APWT1 ( 16 20 32)
For hydraulic connection of the RPWT1 plate heat exchanger
to the unpressurised tank circulation system of the hot water
storage tank.
Consists of:
– Connection fittings.
– Insulated VA 15 solar / VA 18 solar-solar pipe.
Fig. 2-5 APWT1 connector kit
