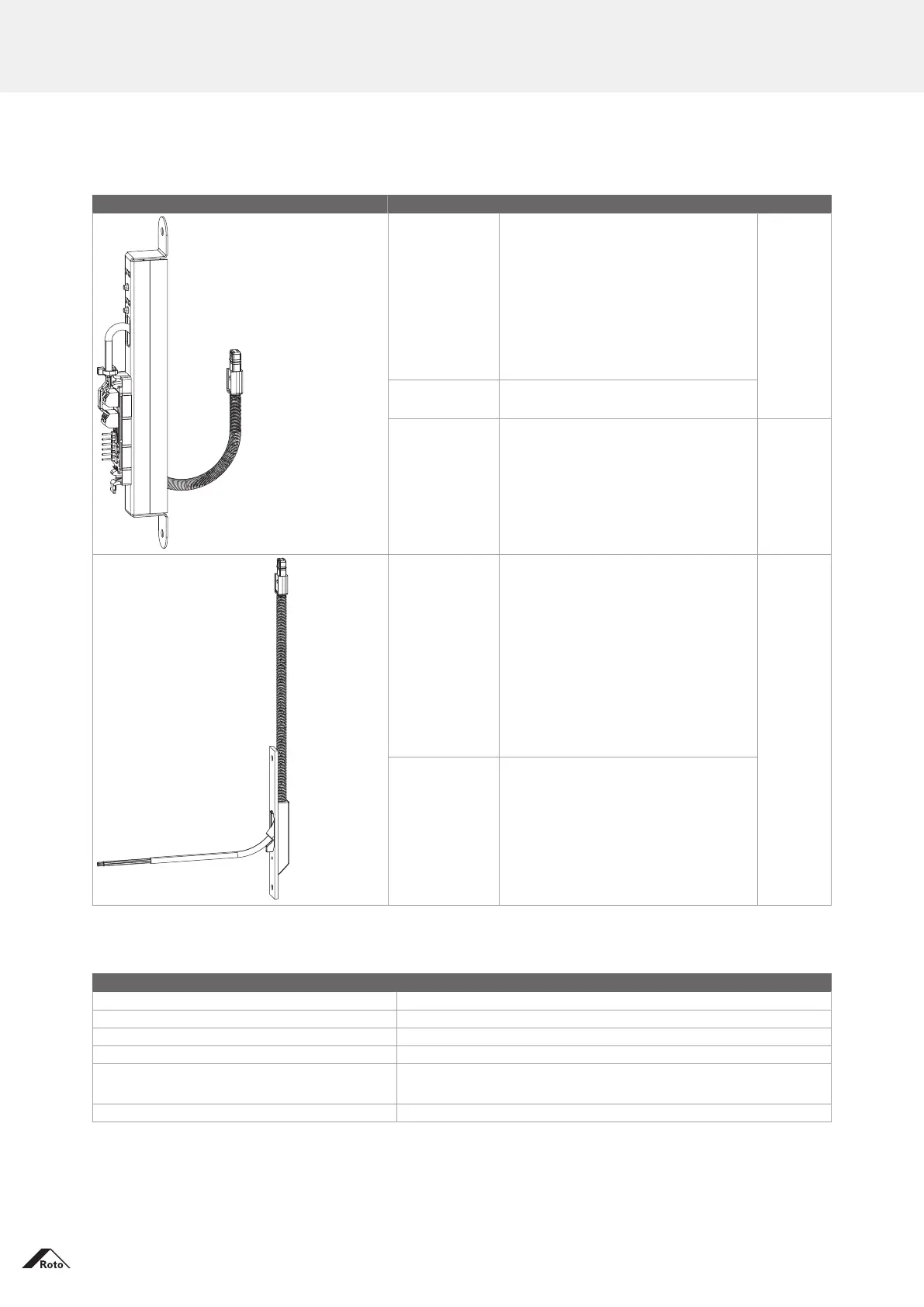

Leaf side
Leaf component Description Mat. no.
Properties
■
6-pin, detachable plug connection
■
Can be used with timber, PVC and aluminium
profiles
■
Moulded-on cable
■
Can be used with a limited rebate clearance
■
Mounting casing with plate
■
180° turn angle
■
The join between the leaf and frame has IP67
protection
■
Bush side with spiral fitted to mounting casing
(installation in U-shape)
820194
Scope of delivery
■
1x cable junction
■
1x set of screws
Required acces-
sories
Cable – type E
Cable – type EZ
633291
633292
Properties
■
6-pin, detachable plug connection
■
Can be used with timber, PVC and aluminium
profiles
■
Moulded-on cable
■
180° turn angle
■
The join between the leaf and frame has IP67
protection
■
Bush side with spiral for lengthways instal-
lation
■
Pre-assembled cable with connectors for
joining the cable junction, the Eneo multipoint
locking system and the access control system,
length of 0.3 m and 3 m
■
Including cover plate
820255
Scope of delivery
■
1x cable junction
■
1x set of screws
■
1x cover plate
3.2 Technical data
Technical data for power supply unit Cable junction 817028
Cable
H03VV-F 3x1.5 mm
2
Input 230 V AC; 50 - 60 Hz
Output 24 V DC; 2.5 A DC
Degree of protection in accordance with DIN 40050 IP67 (when inserted and only the plug connection between leaf and frame)
Temperature range When idle: -10 °C to +70 °C
When moving: -10 °C to +50 °C
Standards CE conformity
Information on the product
Technical data
18 · 05 / 2020 · IMO_502_EN_v2
Roto Safe - Cable junctions Subject to change.
