4 Installation
4.1 Processing instructions
■
Due to the large number of profiles and hardware variants on the market, it is not possible to make any generally
applicable statements about installation, because some of the dimensions of these systems differ.
■
Before starting installation, inspect the installation location and the available space in the rebate area.
■
Installation location: door frame or door rebate
■
Prevent torsion (twisting of the cable) along the entire length of the cable, specifically in the metal spring.
■
Drill holes for routing the cable Ø 16. Deburr the drill holes and remove swarf.
■
In addition to the generally applicable rules of good engineering practice, the following technical regulations must
be complied with, in particular: VDS 2311, VDE 0100.

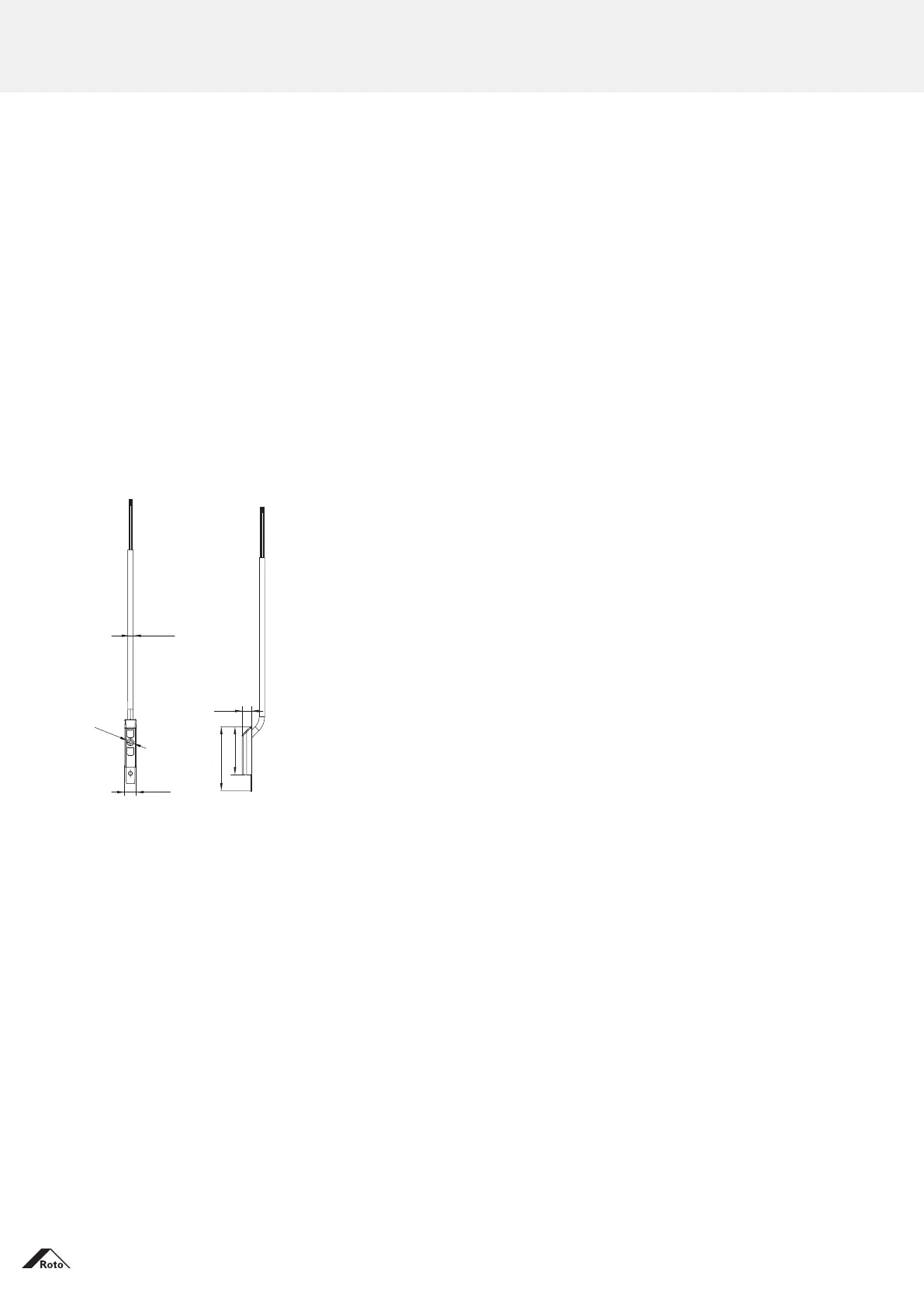

4.2 Dimensions
Frame components
Frame side without power supply unit
