Roto Safe - Installation Steps

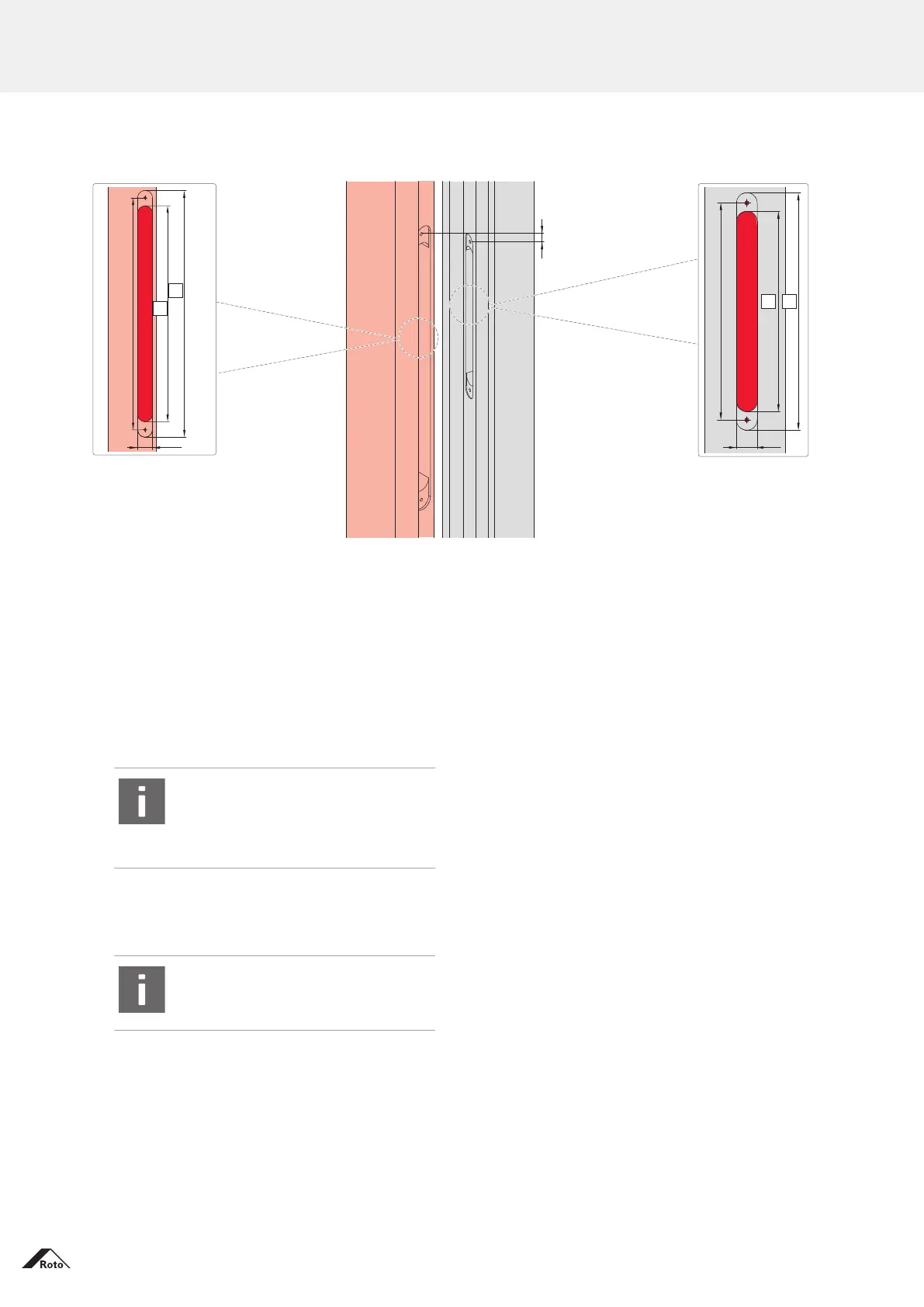

Frame component with power supply unit + leaf component with casing
0
20
210
3 4
194
230
350
400
24
2
1
376
[1] Routing depth: 42 mm
[2] Routing depth: 3 mm
[3] Routing depth: 60 mm
[4] Routing depth: 1 mm
4.4 Installation
1.
Carry out the routing and drilling work  from
page 26.
INFO
Only tighten screws by hand.
Predrilling the screw holes is recom-
mended.
2. Route the cable [1] through the leaf or frame.
Lay a cable loop, ensuring that there is enough
spare cable.
INFO
Do not crush or damage the cable
when installing the frame.
3. Secure the mounting casing with screws [2].
Installation
Installation
28 · 05 / 2020 · IMO_502_EN_v2
Roto Safe - Cable junctions Subject to change.
