Roto Safe - Page 27

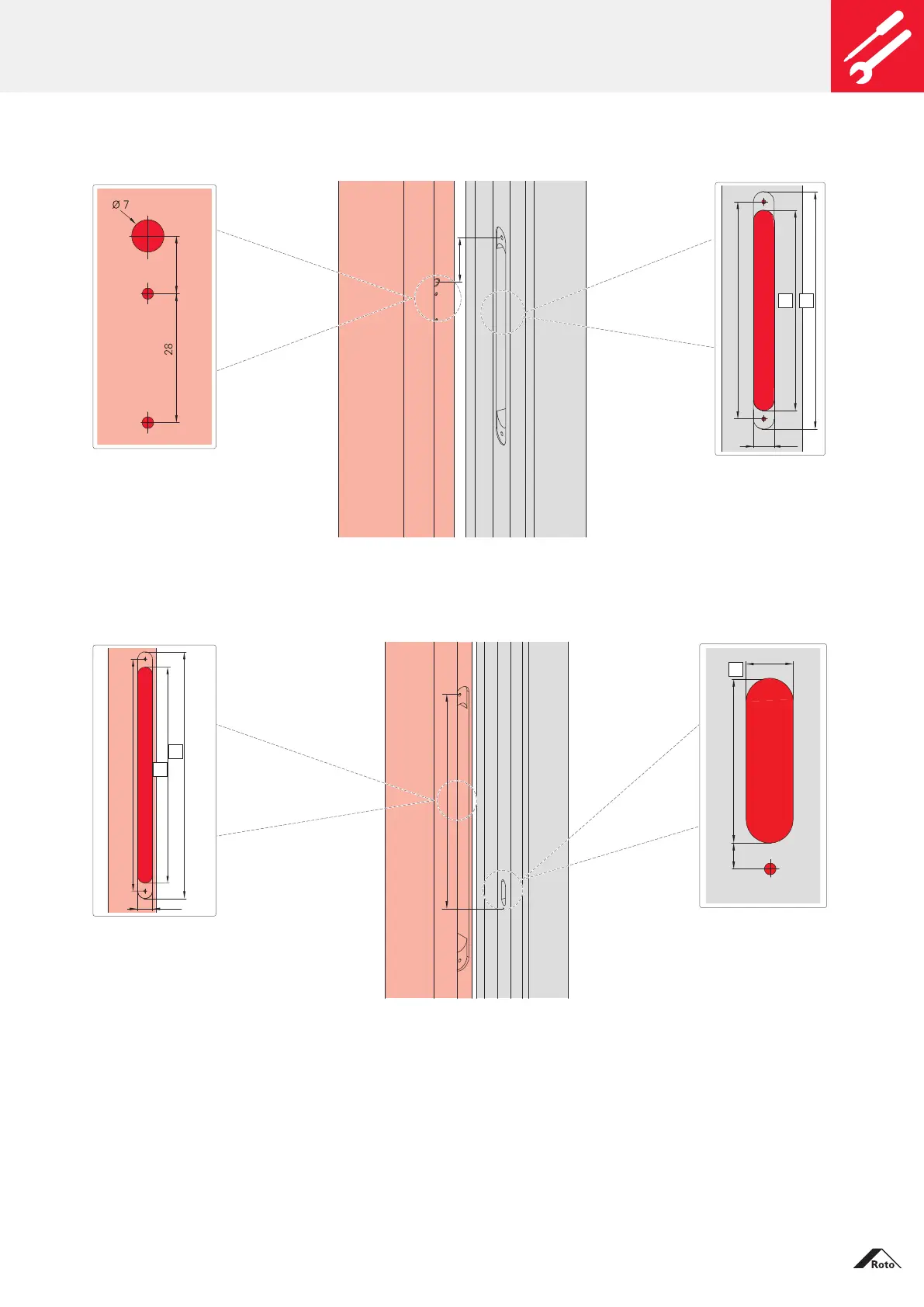

Frame component without power supply unit + leaf component with casing
29
12.5
20
210
1 2
194
230
[1] Routing depth: 60 mm
[2] Routing depth: 1 mm
Frame component with power supply unit + leaf component without casing
291
350
400
24
2
1
376
35
10
5.5
3
[1] Routing depth: 42 mm
[2] Routing depth: 3 mm
[3] Routing depth: 30 mm
Installation
Drilling and routing dimensions
Subject to change. Roto Safe - Cable junctions
IMO_502_EN_v2 · 05 / 2020 · 27
