Roundup VCT-250 - REPLACEMENT PARTS (continued); Parts Identification Diagram; Hardware List

RAPID TOASTER VCT-250
24
P/N 1010776 Rev. H 03/04
McDonald’s
RAPID TOASTER VCT-250
25
P/N 1010776 Rev. H 03/04
McDonald’s
A 100P864 Label, Caution Hot 1
B 308P115 Screw, #8-32 x 3/8” (10 mm) 10
C 310P154 Screw, #10-32 x 3/8” 4
D 304P105 Nut, #4-40, “KEPS” 1
E 406P107 Cable Tie 1
F 308P143 Nut, #8-32, “KEPS” 3
G 310P103 Screw, #10-32 x 1/4” 1
H 310P140 Washer, #10 3
I 308P101 Nut, #8-32 3
J 306P101 Nut, Hex, #6-32 1
K 306P123 Screw, #6-32 x 7/8” 1
L 308P145 Nut, Hex Acorn, #8-32 1
M 100P900 Label, Service 1
N 325P104 Washer, 1/4” 1
O 325P109 Screw, 1/4-20 x 1/2” 1
P 308P124 Screw, 1-Way, #8-32 x 1/2” 1
R 10P1022 Label, Heaters 1
S 212P111 Spacer 1
T 308P157 Screw, #8-32 x 1/4” 1
U 308P120 Screw, #8-32 x 5/8” 1
V 308P104 Screw, #8-32 x 3/8” 1
W 308P105 Screw, #8-32 x 1/2” 1
X 331P103 Shoulder Bolt, 5/16-18 x l” 1
Y 040P111 Bushing, Shorty, 1/2” 1
(not shown)
Z 306P105 Screw, #6-32 x 1/2” 1
BB 331P106 Lockwasher, 5/16” 1
CC 212P118 Flat Washer, 5/16” 1
DD 331P101 Nut, Hex, 5/16 x 18” 1
EE 300P102 Nut, Tinnerman 2
FF 306P104 Screw, #6-32 x 1/4” 8
GG 325P163 Setscrew, 1/4-28 x 5/16” 8
HH 308P183 Screw, Hexhead #8-32 x 3/8” 1
II 308P144 Screw, #8-32 x 1/4” (#6 Head) 1
Item Part Description Qty.
No.
Item Part Description Qty.
No.
REPLACEMENT PARTS (continued)
Hardware List
The following items are only available in packages of 10.
Interlock Switch
Drive Chain
Idler Sprocket
(5/16” Bore)
Drive Sprocket (1/2” Bore)
Temperature Control
Drive Motor Assy.
Rocker Switch
(Power On/Off)
Fan Blade
Hi-Limit Control
Platen Relay
Auxiliary Relay
Drive Sprocket (1/2” Bore)
Transformer
Auxiliary Heater
Axial Fan

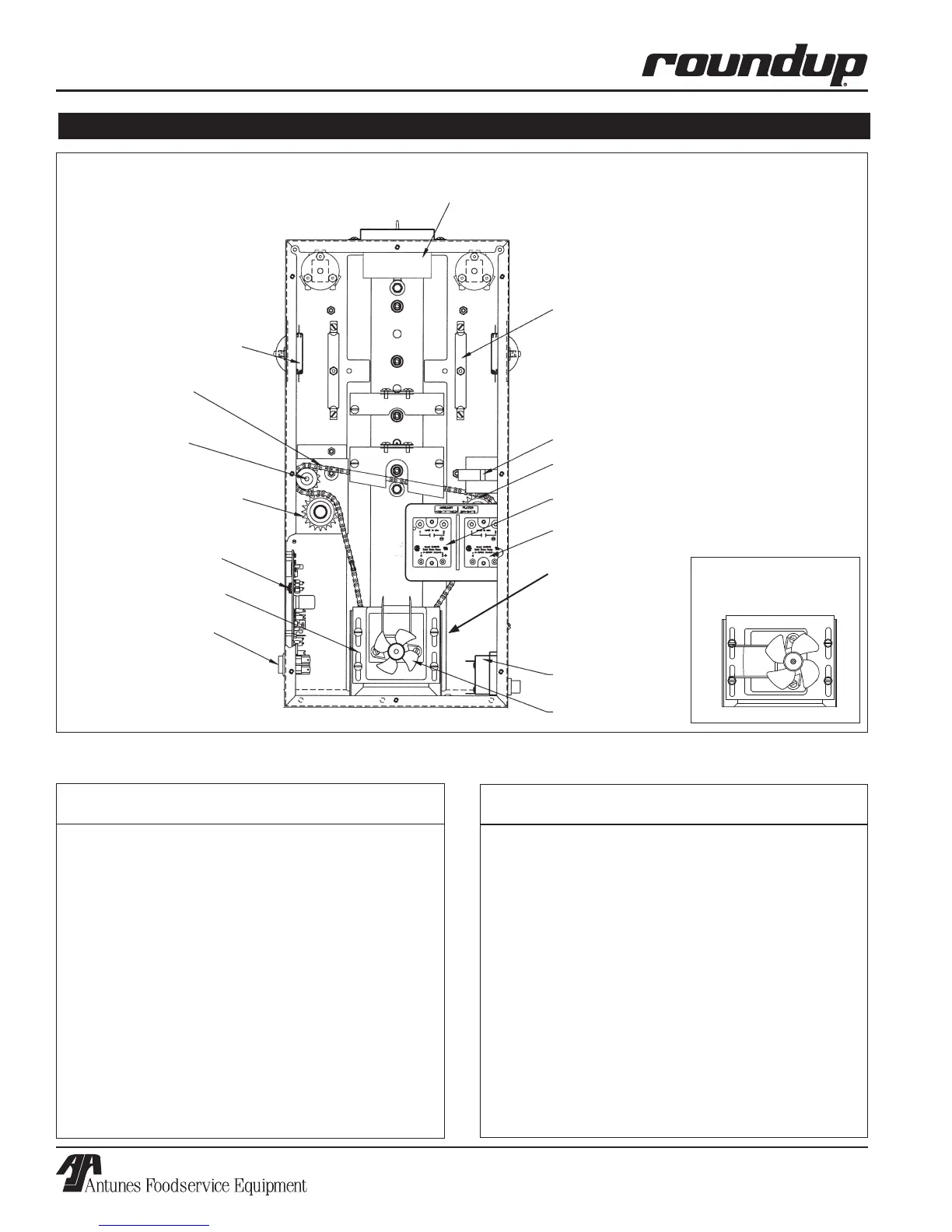

Parts Identification
Position of 3
RPM Motor
for 17 Second
Toaster
Position of 9 RPM Motor
for 10 Second Toaster
