44

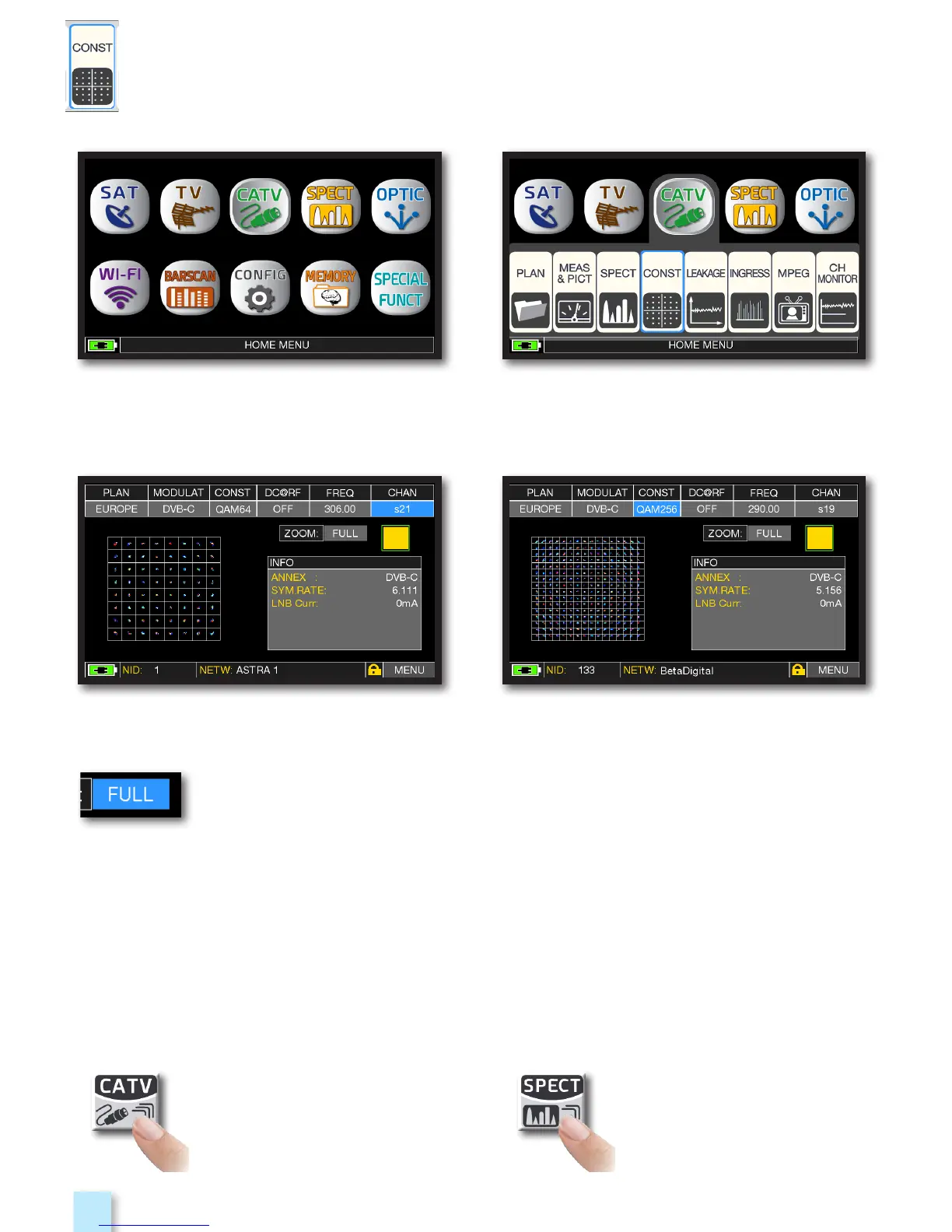

Press the “HOME” key. Touch “CATV” and then “CONST”
or use the encoder.
64 QAM constellation. 256 QAM constellation.
Example 2: Example 1:
RELATED FUNCTIONS
_________________________________________
CONSTELLATION ANALYSIS
_______________________________
Touch “FULL” and select the box of constellation to enlarge.
Press to enter in
the spectrum.
Press repeatedly to navigate
into CATV measures screens:
Measures, Constellation.
To Next Page
