CONFIGURATION OF COAXIAL CABLES
NOTE: for more information about the “APP”s, contact your distributor or send an e-mail to:
wecare@roverinstruments.com
Distribution
cable
mod. ROVER
CNG 90 STC
mod. ROVER HD TAB 900
Cable: from 1 to 5.
• Default coaxial cable configurations (adjustable).
TYPE: Type of cable to be tested.
• AIRSPACE: coaxial cable with dielectric in the air.
• COMPACT: coaxial cable with compact dielectric.
• FOAM: coaxial cable with foam dialectric.
V.O.P.: Propagation speed.
• Set the value provided by the cable manufacturer.
UNIT: Measurement unit.
• Set the value in meters or feet.
PICTURE: Spectrum graphics.
• Set the spectrum graphics mode to FULL or CONTOURS.
LOC.OSC.: LOCAL TV OSCILLATOR.
• Leave the value set by the manufacturer: 0 MHz.

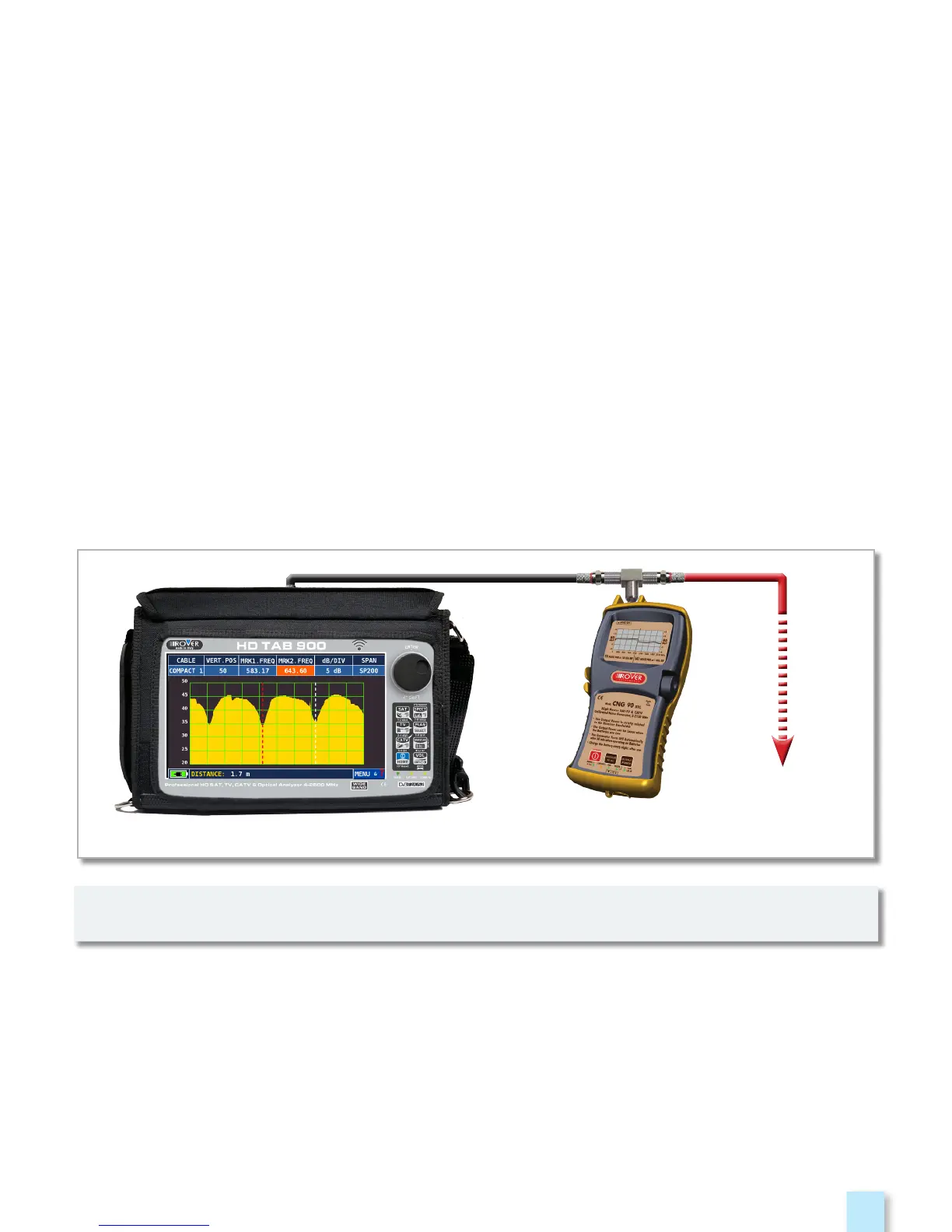

CONNECTION DIAGRAM
