The instrument, equipped with an internal optical converter, allows you to perform POWER and
OPTICAL ATTENUATION measurements as well as perform RF measurements from optical inputs,
decode services, and display Spectrum.
Touch “STORE” and memorizes the measured
optical power value (Optic Ref.):
for Example 4,51 dBm.
Touch “DC@RF” and, if required,
select the power supply voltage:
for Example 12V.
In the “OPTIC POWER LOSS” field, the optical
attenuation value is displayed with respect to
the stored value (Optic REF):
for Example - 1.87 dBm.

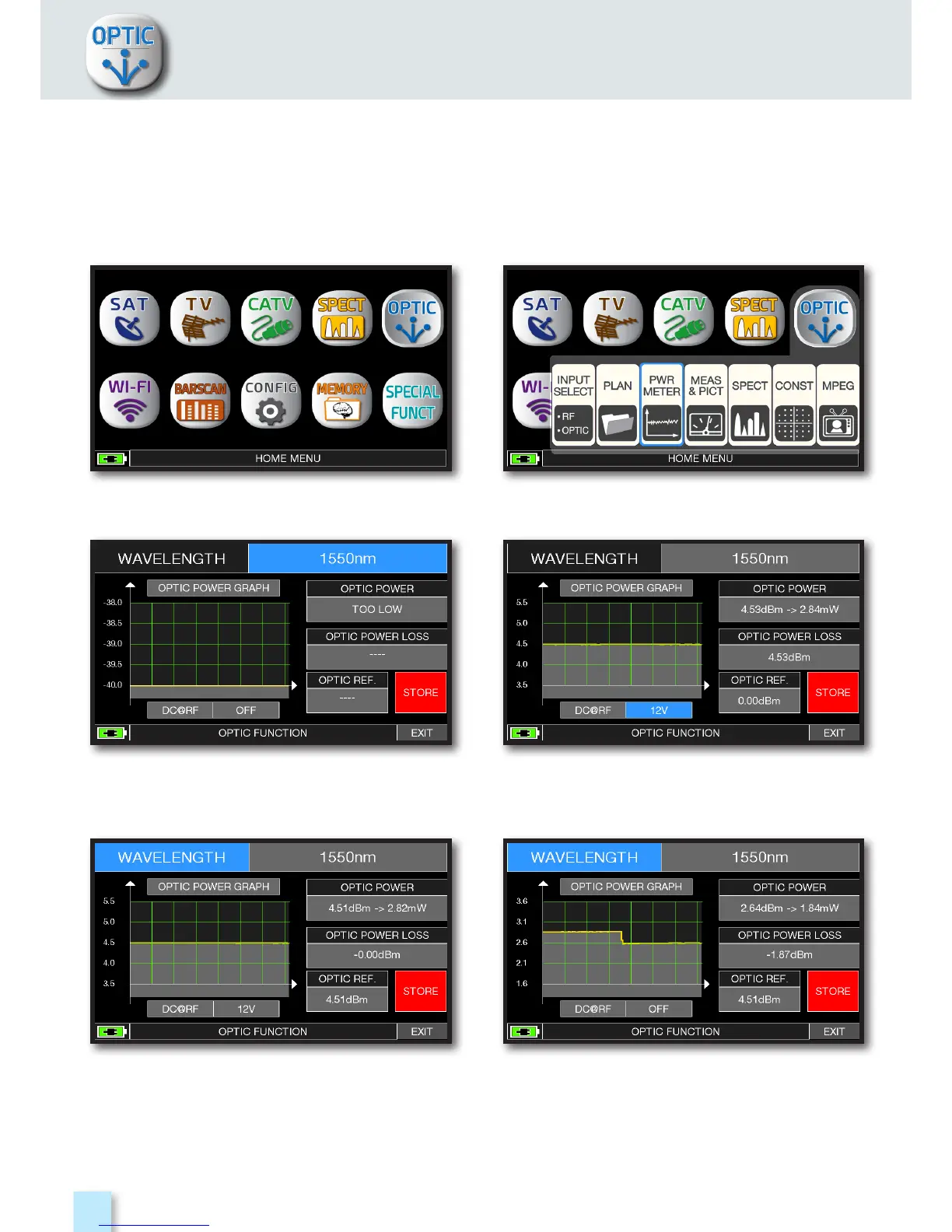

OPTICAL POWER & ATTENUATION MEASURES
Touch “WAVELENGHT”
and select the Wave length desired:
for Example 1550 nm.
Press the “HOME” key. Touch “OPTIC” and then “PWR METER”
or use the encoder.
