RS PRO RSPD3303C - The Front Panel Overview; Front Panel Component Identification

8

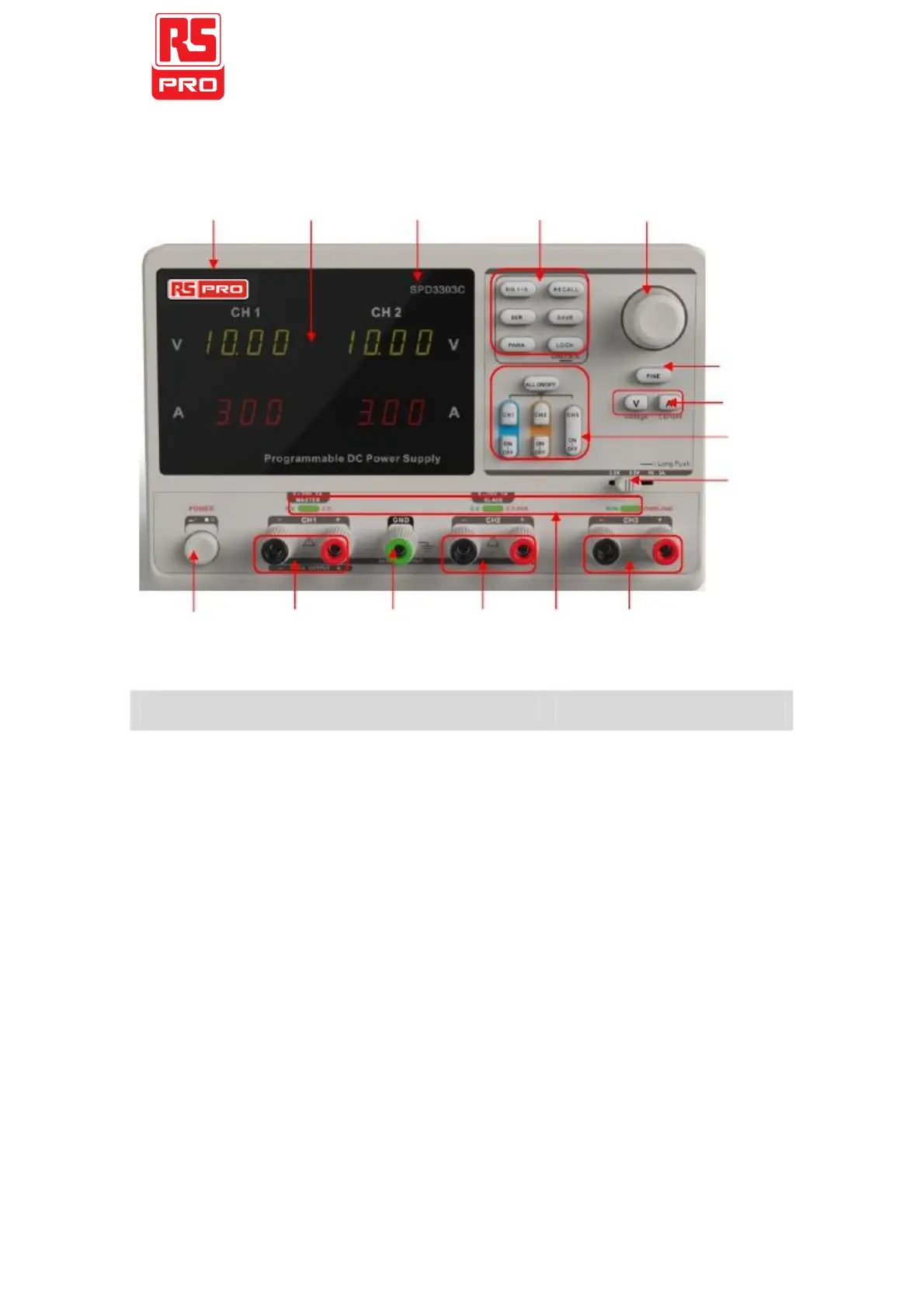

The Front Panel
1 2 3 4 5
6
7
8
9
10 11 12 13 14 15
NO. Description NO. Description
1 Logo 9 CH3 DIP Switch
2 LED Display 10 Power Switch
3 Model 11 CH1 Output Terminal
4 Configuration button 12 Ground Terminal
5 Multi-function knob 13 CH2 Output Terminal
6 Fine Adjust button 14 CV/CC Indicator Light
7 Voltage/Current button 15 CH3 Output Terminal
8 Channel Control button
