54

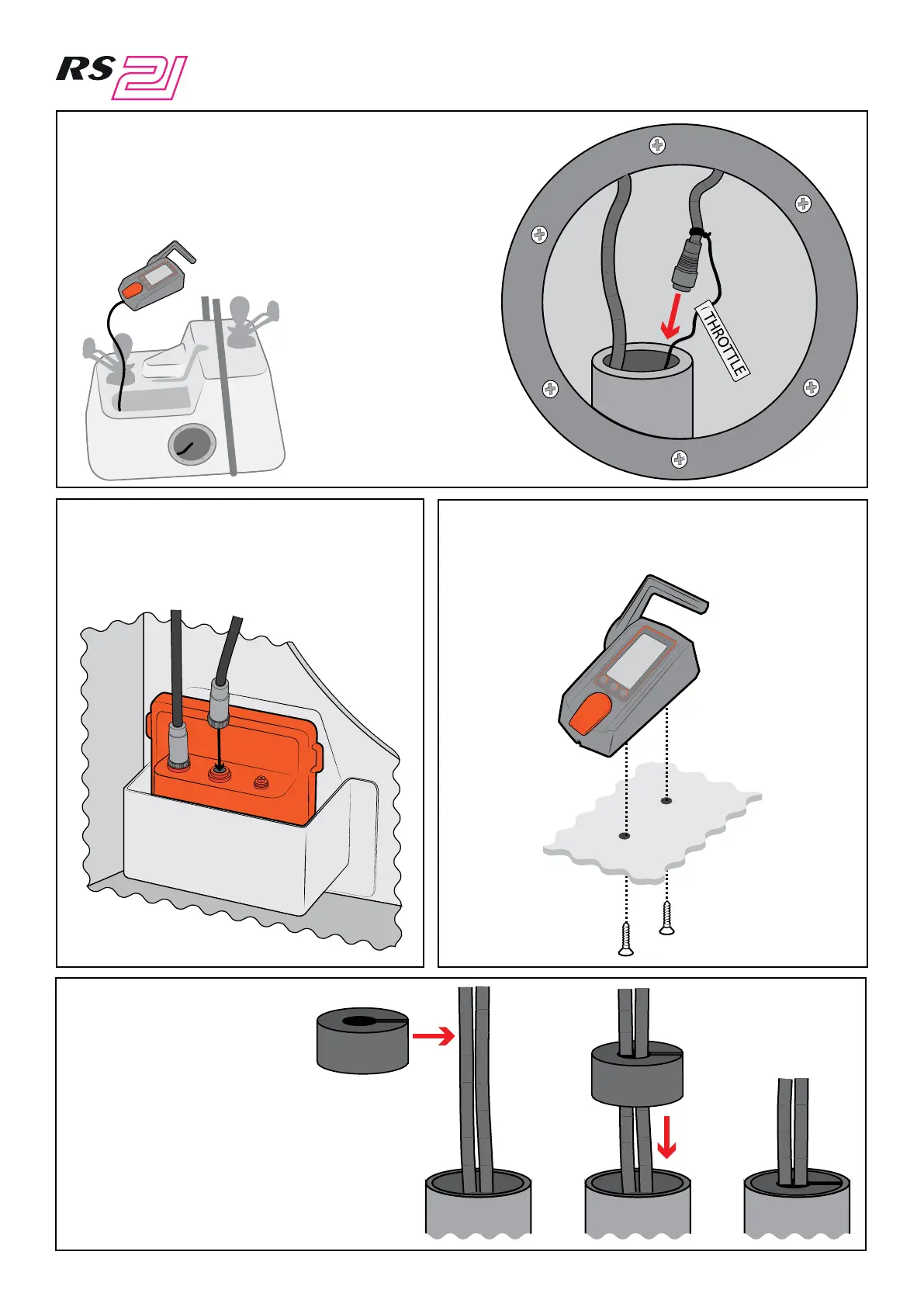

Pass the other end down through the
hole in the console and connect the
other end to the mouse line labelled
‘throttle’ which emerges from the pipe
inside the console.
4.24 - Adding the Torqeedo
m)
n)
o)
p)
Attach it to the connection labelled
‘throttle’ on the battery box.
Fit the two screws (from below)
which hold the throttle in place.
Add the plastic bung around the two
cables (inside the console) and push it
down inside the pipe.
Pull it through from
the front hatch.
To Next Page
