4.6 The Daggerboard
To complete this section, you will need:
• The daggerboard
• The daggerboard handle
1) Tie a figure-of-eight knot in one end of the daggerboard handle.
2) Thread the other end through one of the holes in the top of the daggerboard.
3) Thread the end through the other hole in the top of the daggerboard, making sure
to thread it through in the same direction as the original hole (see picture 4.15).
4) Tie a figure-of-eight knot in the end of the daggerboard handle. There should be a
knot on either side of the daggerboard (see picture 4.15).

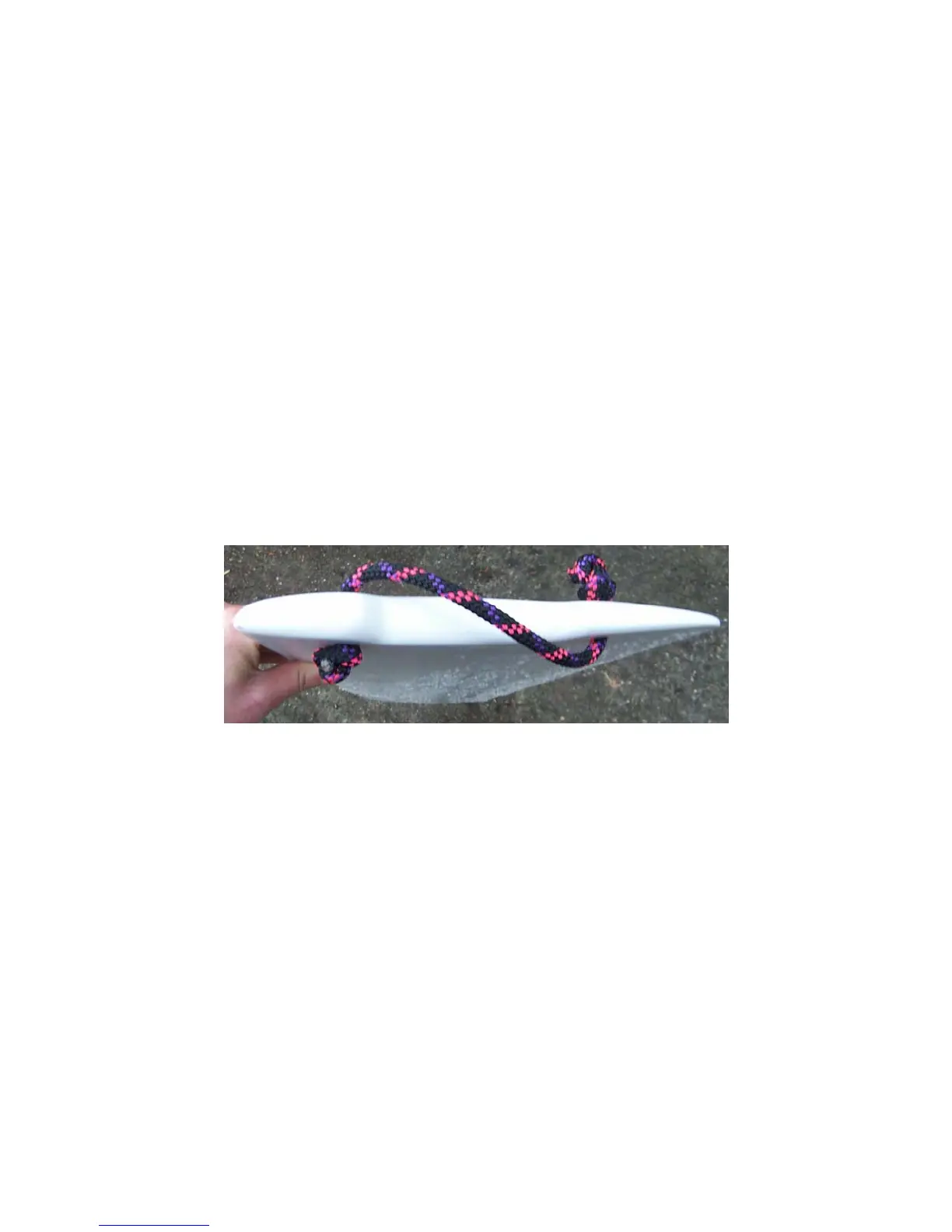

Picture 4.15 The Daggerboard Handle
4.7 The Rudder
To complete this section, you will require:
• The rudder
• The rudder stock
• The rudder downhaul and block
1) Undo the plastic wing nut on the rudder stock and remove the bolt.
2) Slide the rudder into the stock, making sure that you feed the rope over the
