RSP Compact Series - Installation of Tool Attachment on Tool

M0416-1 version 3.2 9

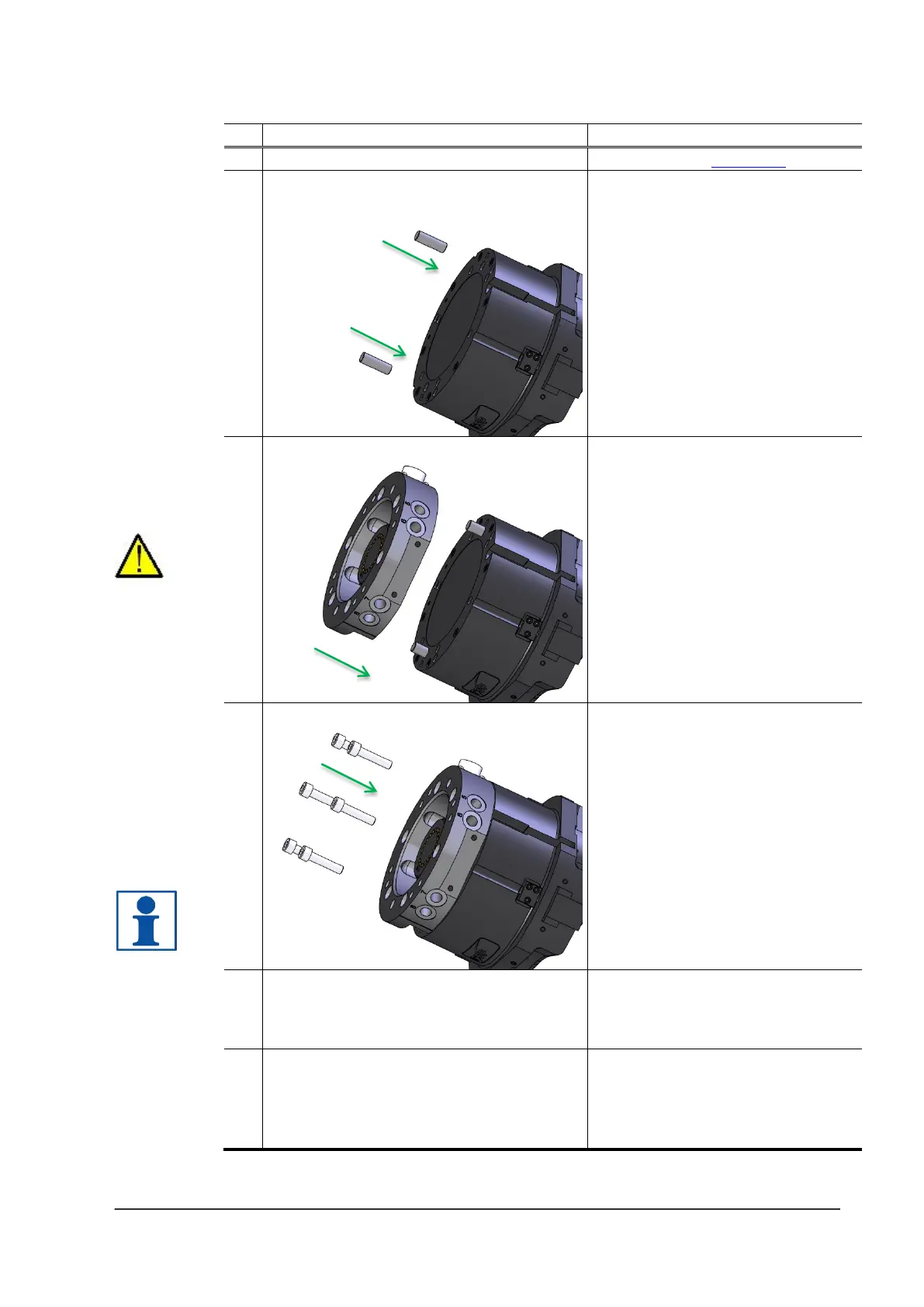

2.2 Installation of tool attachment on tool
Action
Note
1
Safety
Read the safety section 1.2.
2
Mount guide pins
Press the two guide pins into the
corresponding holes on the tool.
3
Fit tool attachment
Lift and fit the tool attachment,
using the guide pins, into its
appropriate guide holes.
WARNING! The tool attachment is
heavy and may cause personal
injury and equipment damage if
dropped
4
Mount tool attachment
Fastening screws can be entered
either from the tool attachment side
or the tool side. Screws are
specified in the Product Description
of respective tool attachment.
Mount the tool attachment using a
torque wrench. See tightening
torques above.
NOTE! For TA100 fastening screws
can only be entered from the tool
attachment side.
5
Connect air hoses
Connect air hoses to the tool
attachment. Pneumatic diagrams
are found in the Product Description
of respective unit.
6
Connect signals (electrical versions
only)
Connect electrical connectors in
accordance with selected unit.
Circuit diagrams are found in the
Product Description of respective
unit.
