Remote Control Processor
XP-3
18
CHAPTER 3 | INSTALLATION AND OPERATION
CONNECTION OPTIONS

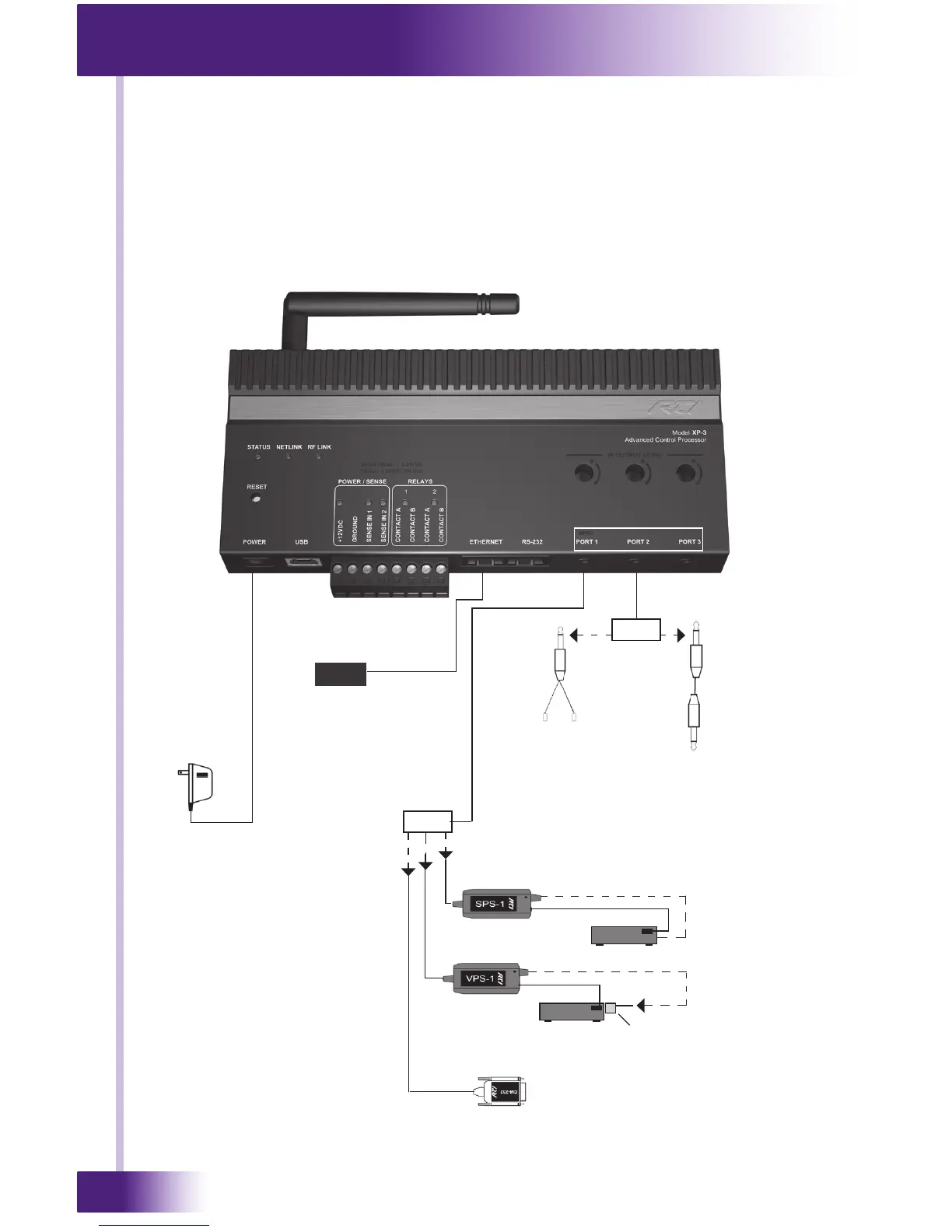

The following diagram illustrates some of the XP-3 connection options.
Video
Direct IR
Single or
Dual Emitters
Video equipment
with Composite
output.
CM-232 Communication Module
Optional accessories shown are
sold separately.
Voltage
IR Emitter
Source
equipment with
switched outlet.
Voltage Source such
as power supply.
Power
Supply
LAN
OR
IR Emitter
OR
To Source Equipment
Television, Receiver, Lighting Systems, etc.
NOTE: Each IR output can drive up to two ashing
IR emitters or three non-ashing IR emitters
directly. See next diagram for installations where
more IR emitters are required.
