RTI XP-3 User Manual

19
It’s Under Control
®
CHAPTER 3 | INSTALLATION AND OPERATION
CONNECTION OPTIONS

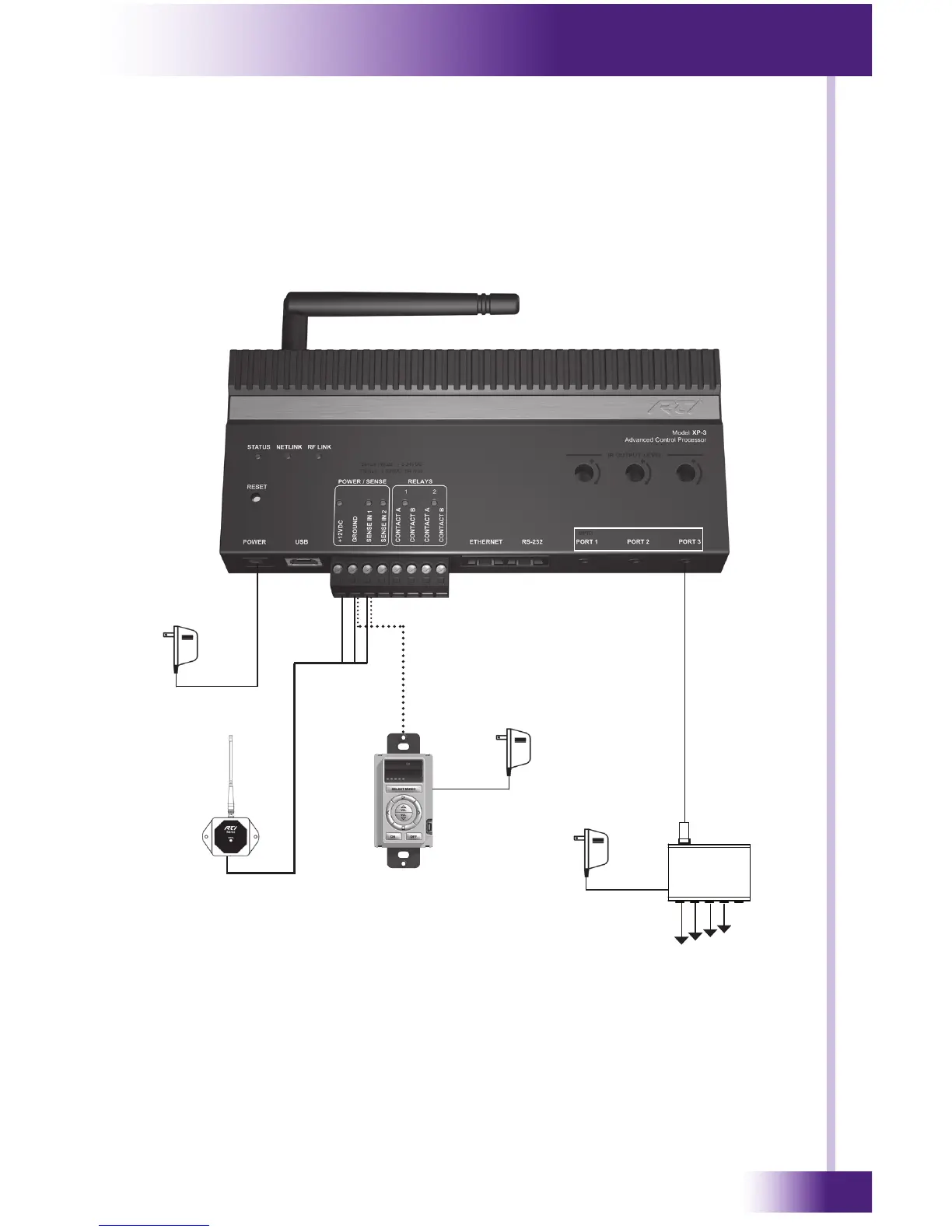

The following diagram illustrates some of the alternative XP-3
connection options.
Power Supply
RTI Keypad
Note: RTI Keypad needs a
separate power supply
Amplied IR Connecting Block
More than two emitters per port
requires an amplied IR connecting
block.
RTI RM-433
RF Receiver
Power Supply
Power Supply
