RTMOTION LCS MK3.1 - Receiver Operation and Ports; Connection Port Details

To Next Page

To Previous Page

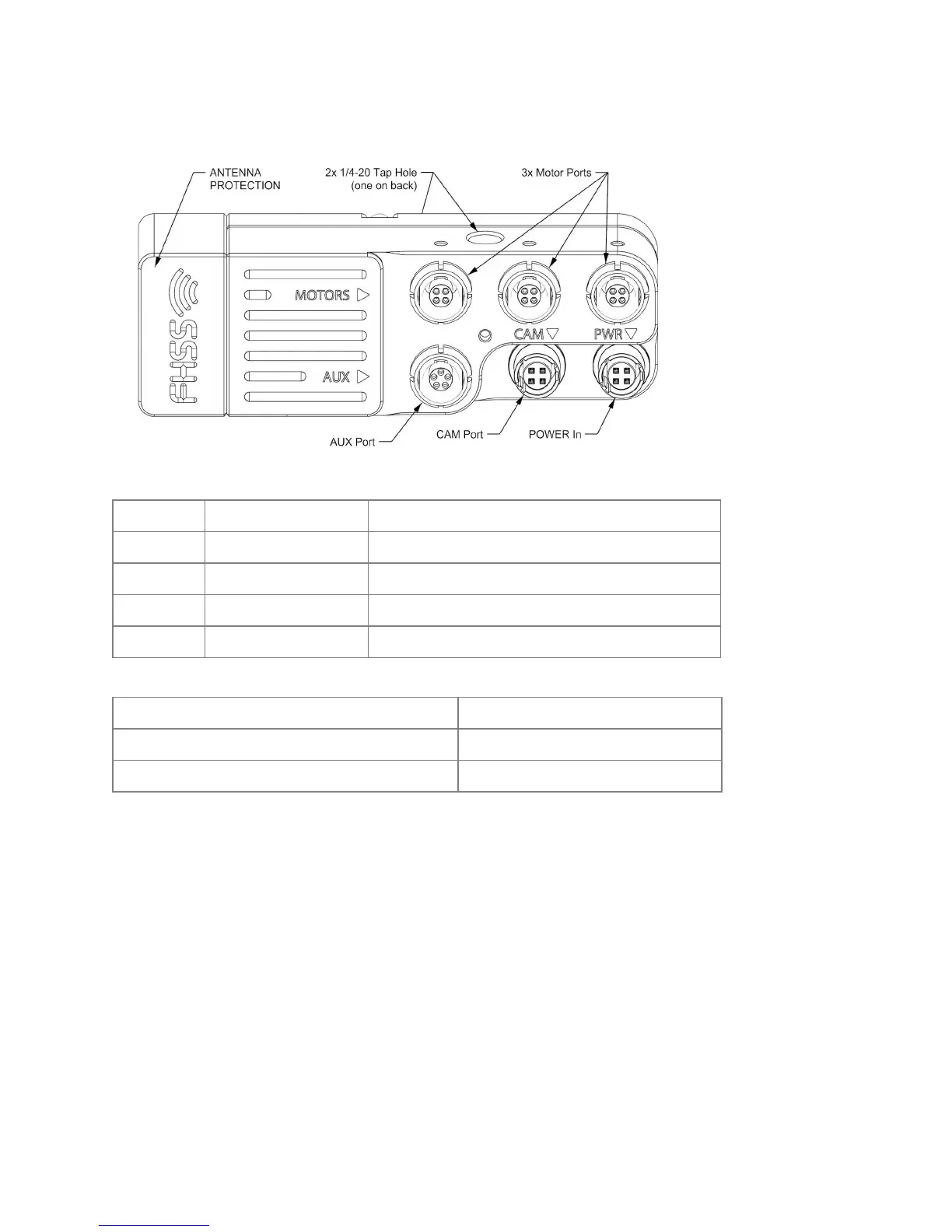

Operation



Connection

MOTORS

LM 0B 4-pin

Any motor can connect to any port.

PWR

Hirose HR10 4-pin

Power Input, 1=GND, 4= Voltage.

CAM

Hirose HR10 4-pin

Trigger (Output) for CAMERA.

AUX

LM 0B 5-pin

Analogue controllers, Wired Mode, etc.

USB

Micro USB

For connection to a PC.

Status Light

SOLID GREEN – CONNECTED

PURPLE – Please Wait

ORANGE – No Connection (or PC Mode)

RED (solid) – Cam running

BLUE – Wired Mode

RED (pulse) – Cam trig

Power Requirements

8 – 15V DC (17V absolute max - e.g. 14.8V battery fresh off a charger). The Receiver will block any                   

voltage over ~17.5V, or any reverse voltage.

 
