RTS Zeus - Figure 2. Zeus and Accessory Dimensions

Getting Started, Zeus™ DSP Intercom Matrix 11
15 in
381 mm
17 in
432 mm
1RU
TIF-951
Telephone Interface
3.9 in
99 mm
17 in
432 mm
2RUs
EKP96/EKP97
Expansion Keypanel
for KP96/KP97
KP96/KP97
Keypanel
6.9 in
175 mm
17.3 in
439 mm
2RUs
7.0 in
178 mm
17.3 in
439 mm
1RU
LCP-100A
Level Control Panel
7 in
178 mm
16.9 in
429 mm
LCP-102
Level Control Panel
2RUs
17 in
432 mm
17.4 in
442 mm
2RUs
Zeus
DSP Intercom Matrix
6.8 in
173 mm
17.0 in
432 mm
1RU
UIO-256
Universal Input/Output Frame
8.5 in
216 mm
17.0 in
432 mm
1RU
KP95-0
Keypanel
4.9 in
124 mm
17.5 in
445 mm
1RU
EKPD-95
Expansion Keypanel
for KP95-0

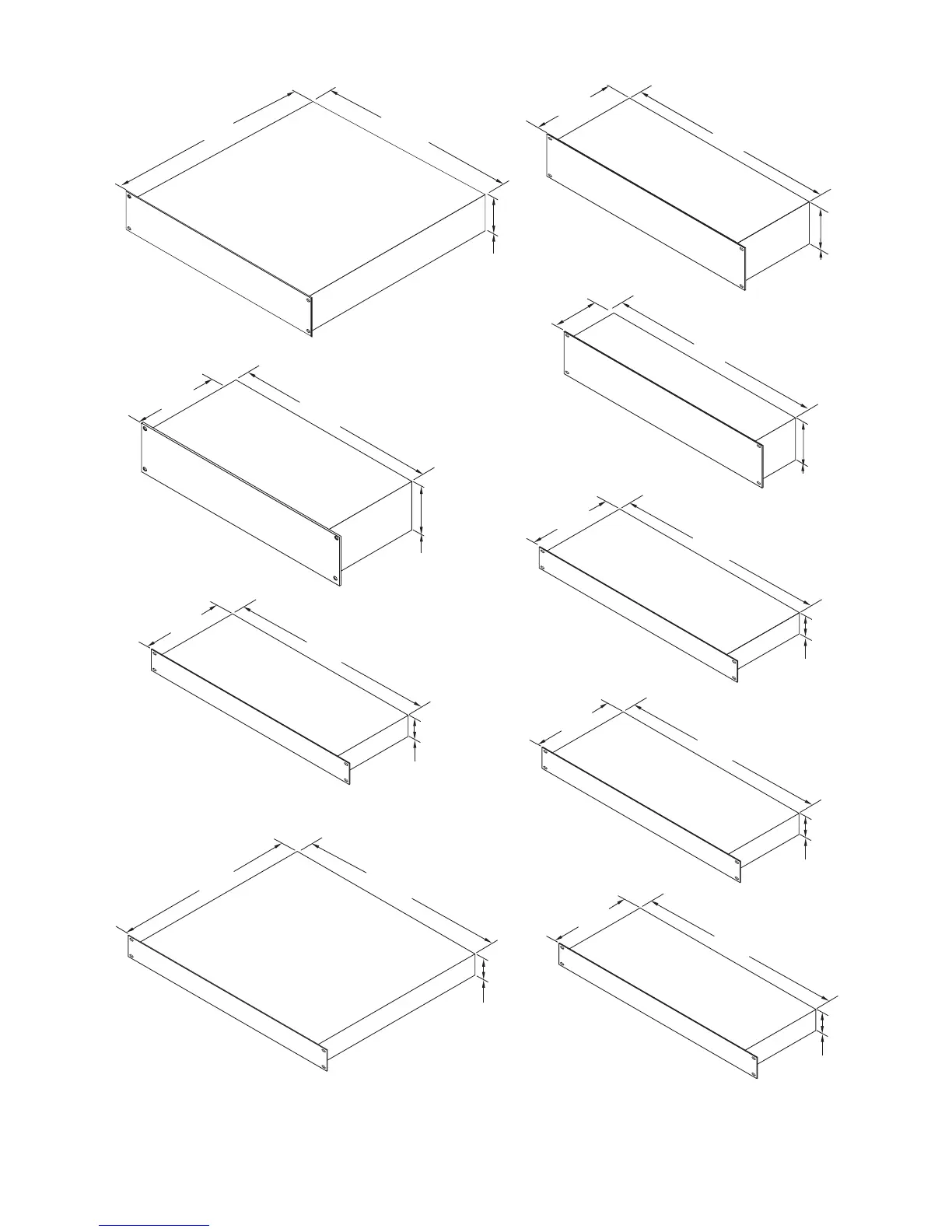

Figure 2. Zeus and Accessory Dimensions
☞
Front panel rack mounts fit industry standard 19” (483 mm) racks and consoles. Dimensions exclude connectors. Allow at
least 2 inches (51 mm) for cables and connections.
