RTS Zeus - Errata; Zeus GPI Output External Transistor Connection

Errata
Zeus GPI Output External Transistor Connection
Document: Zeus Getting Started Manual, Rev A
Errata Number: 1
General Instructions: The following instructions correct errors in Revision A of the manual.
This information will be included in Revision B of the manual.

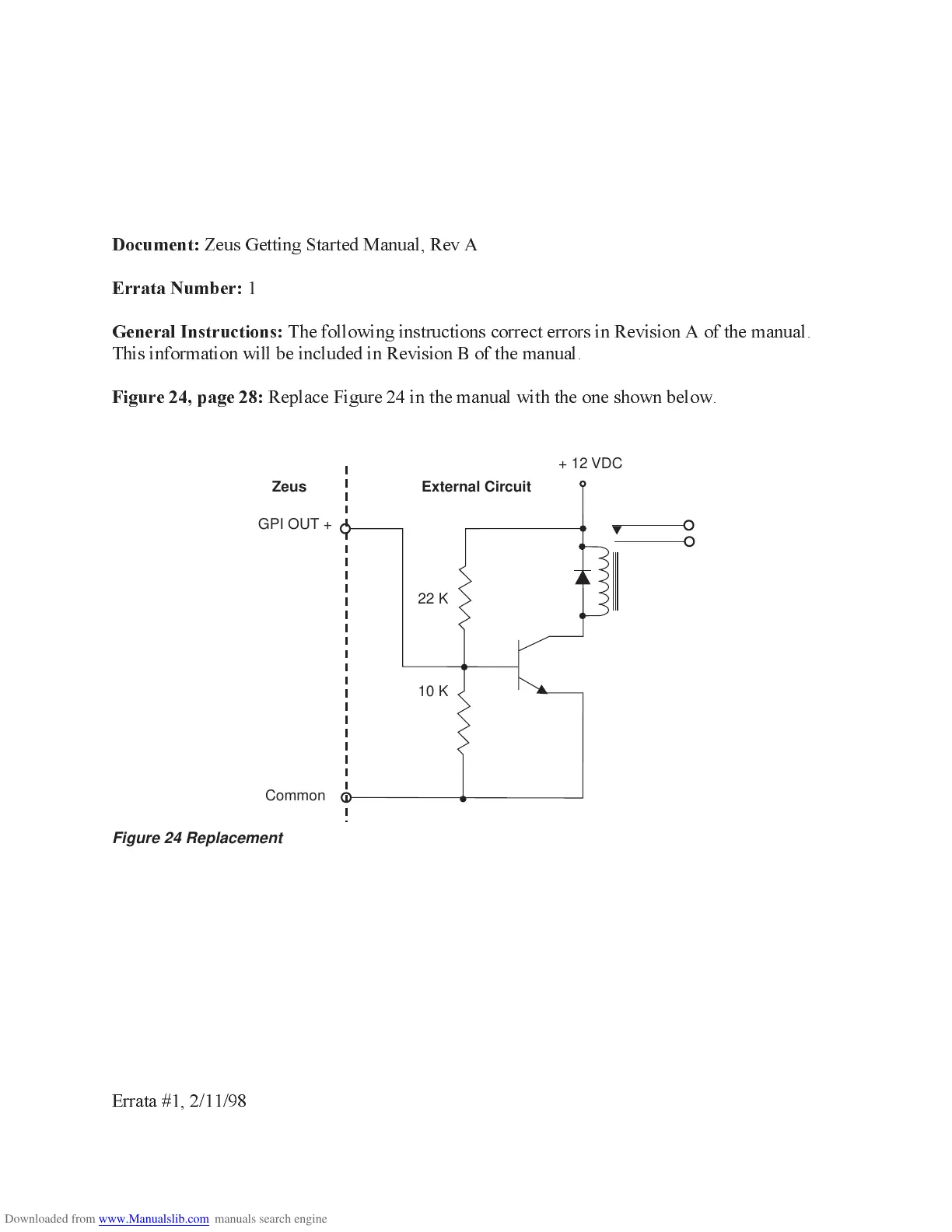

Figure 24, page 28: Replace Figure 24 in the manual with the one shown below.
22 K
10 K
+ 12 VDC
Common
GPI OUT +
Zeus External Circuit
Figure 24 Replacement
Errata #1, 2/11/98
