J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
102 V1.032818
COUPLING SIDE (RADIAL) BEARING

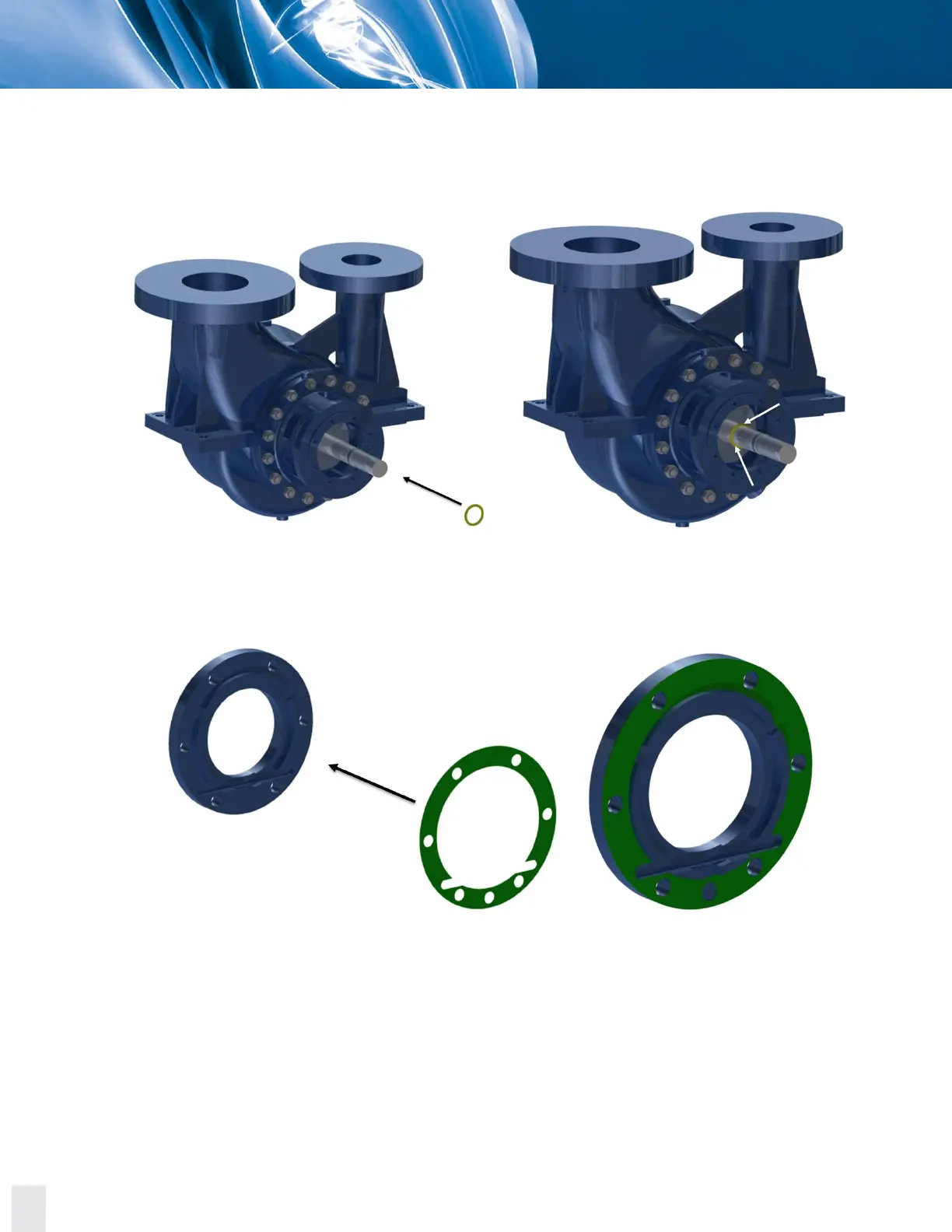

21. Insert the radial bearing spacer over the shaft from the coupling side until it reaches its
respective groove on the shaft.
Figure 8.21JD. Inserting the radial bearing spacer over the shaft from the coupling side.
22. Place the corresponding gasket on the internal radial bearing housing cover.
Figure 8.22JD. Placing the corresponding gasket on the internal radial bearing housing cover.
