Ruhrpumpen API 610 - Page 101

J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
101 V1.032818
19. Insert the radial mechanical seal over the shaft from the coupling side until it reaches the
radial casing cover.

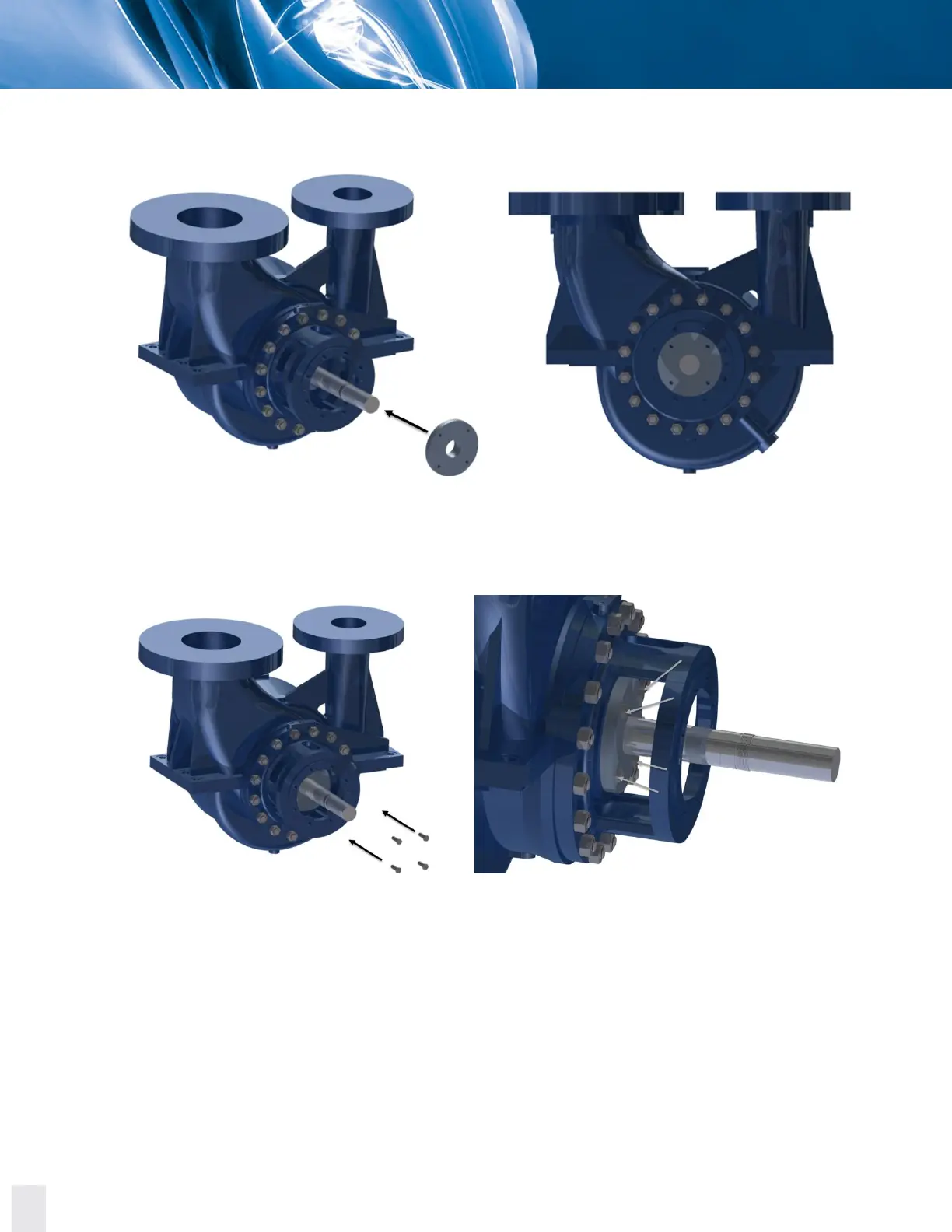

Figure 8.19JD. Inserting the radial mechanical seal over the shaft from the coupling side.
20. Place and tighten the hex bolts to secure the radial mechanical seal to the radial casing cover.
Figure 8.20JD. Placing and tightening the hex screws to secure the radial mechanical seal to the radial casing
cover.
