17. Place and tighten the hex nuts on the studs to secure the axial casing cover to the case.

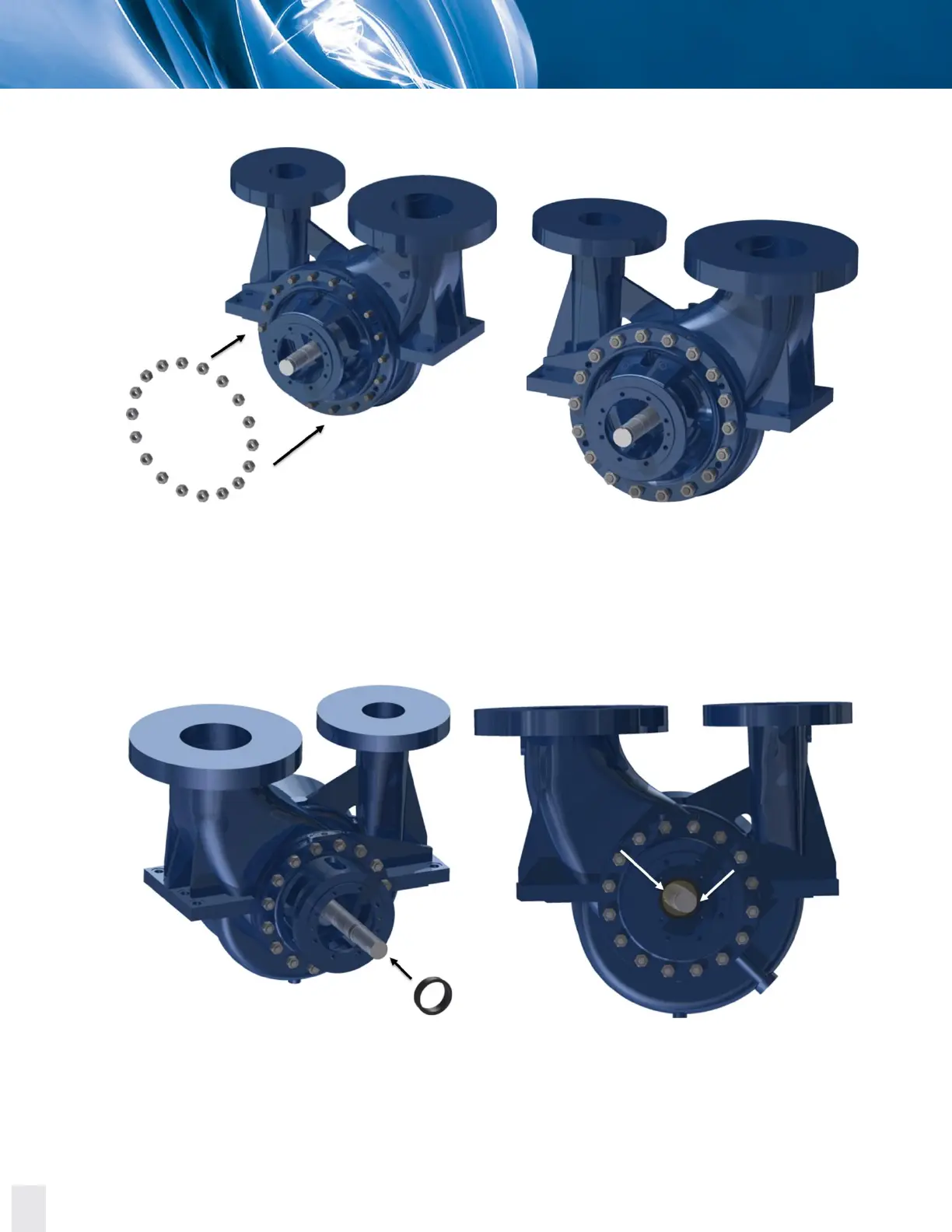

Figure 8.17JD. Placing and tightening the hex nuts to secure the axial casing cover to the case.
COUPLING SIDE (RADIAL) MECHANICAL SEAL
18. Insert the radial throat bushing over the shaft into the radial casing cover from the coupling
side.
Figure 8.18JD. Inserting the radial throat bushing over the shaft into the radial casing cover from the coupling side.
