26. Insert the radial bearing sleeve over the shaft from the coupling side until it reaches the
radial bearing.

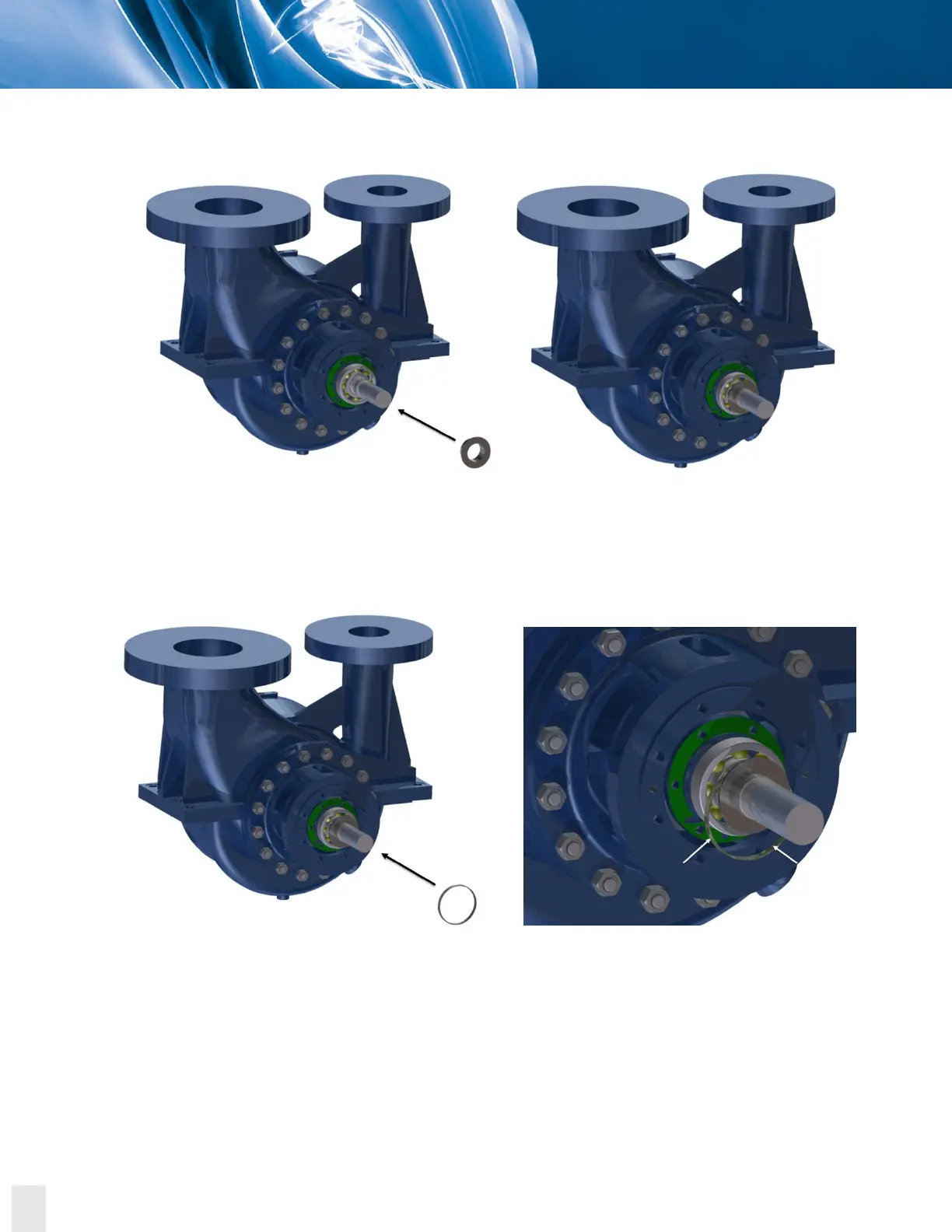

Figure 8.26JD. Inserting the radial bearing sleeve over the shaft from the coupling side.
27. Insert the radial oil ring over the shaft from the coupling side until it reaches the groove on
the radial bearing sleeve.
Figure 8.27JD. Inserting the radial oil ring over the shaft from the coupling side.
