28. Insert the radial bearing lock washer over the shaft from the coupling side until it reaches the
radial bearing sleeve.

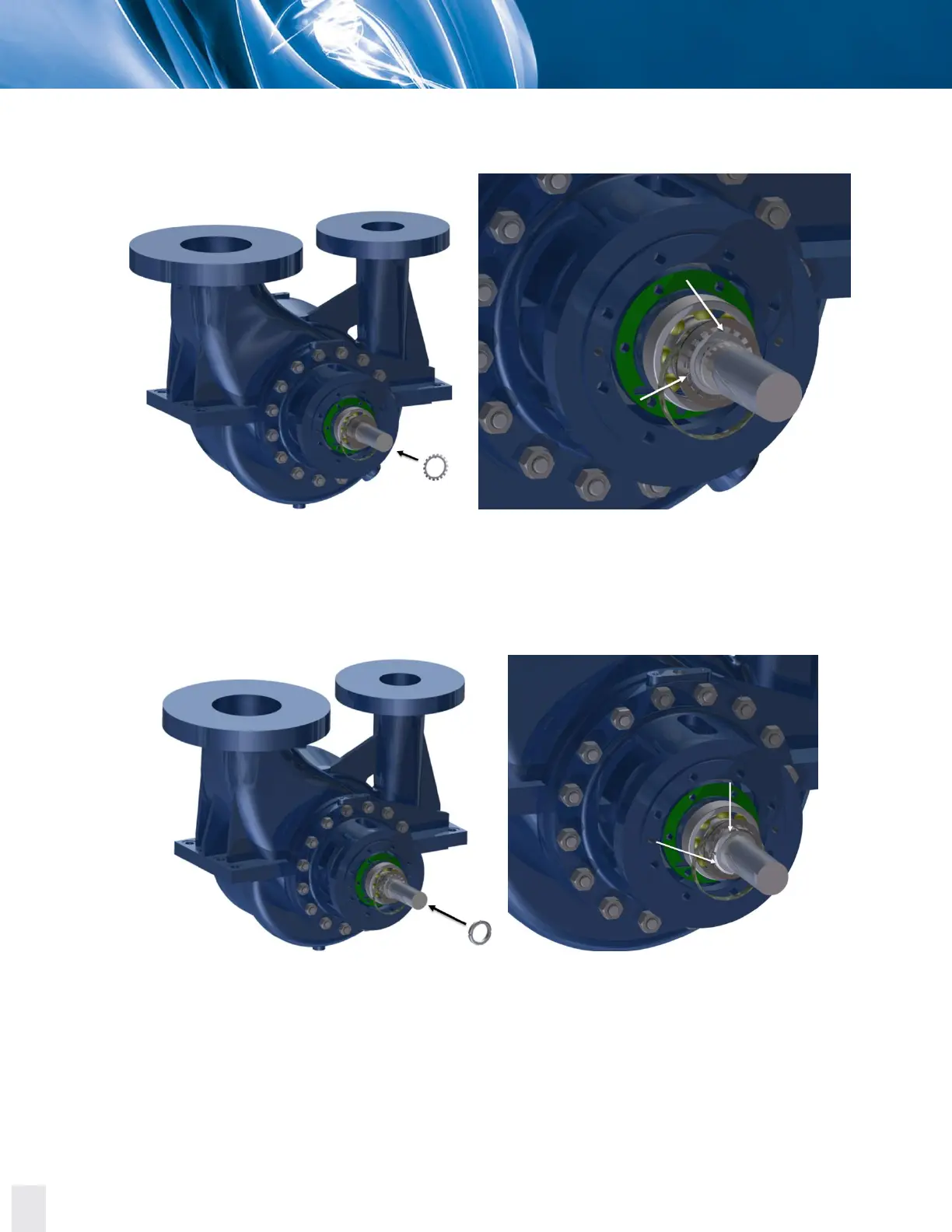

Figure 8.28JD. Inserting the radial bearing lock washer over the shaft from the coupling side.
29. Insert the radial lock nut over the shaft form the coupling side until it reaches the radial lock
washer.
Figure 8.29JD. Inserting the radial lock nut over the shaft from the coupling side.
