J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
108 V1.032818
COUPLING SIDE (RADIAL) BEARING HOUSING
31. Insert the radial bearing housing over the shaft from the coupling side until it reaches the
radial casing cover.

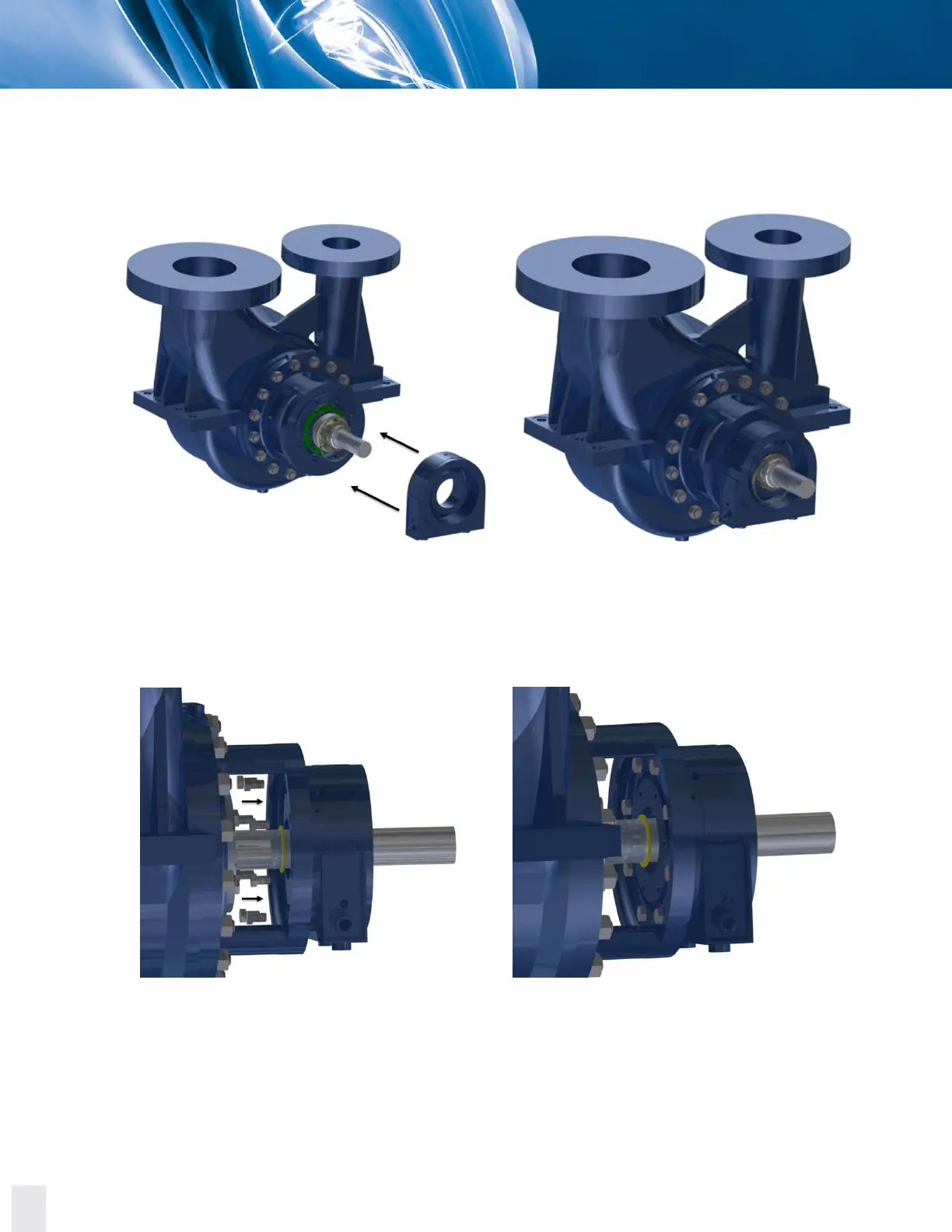

Figure 8.31JD. Inserting the radial bearing housing over the shaft from the coupling side.
32. Manually place and tighten the hex bolts to secure the radial bearing housing to the radial
casing cover.
Figure 8.32JD. Placing and tightening the hex bolts to secure the radial bearing housing to the radial casing cover.
