J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
109 V1.032818
33. Manually place and tighten the hex bolts to secure the internal radial bearing housing cover
to the radial casing cover.

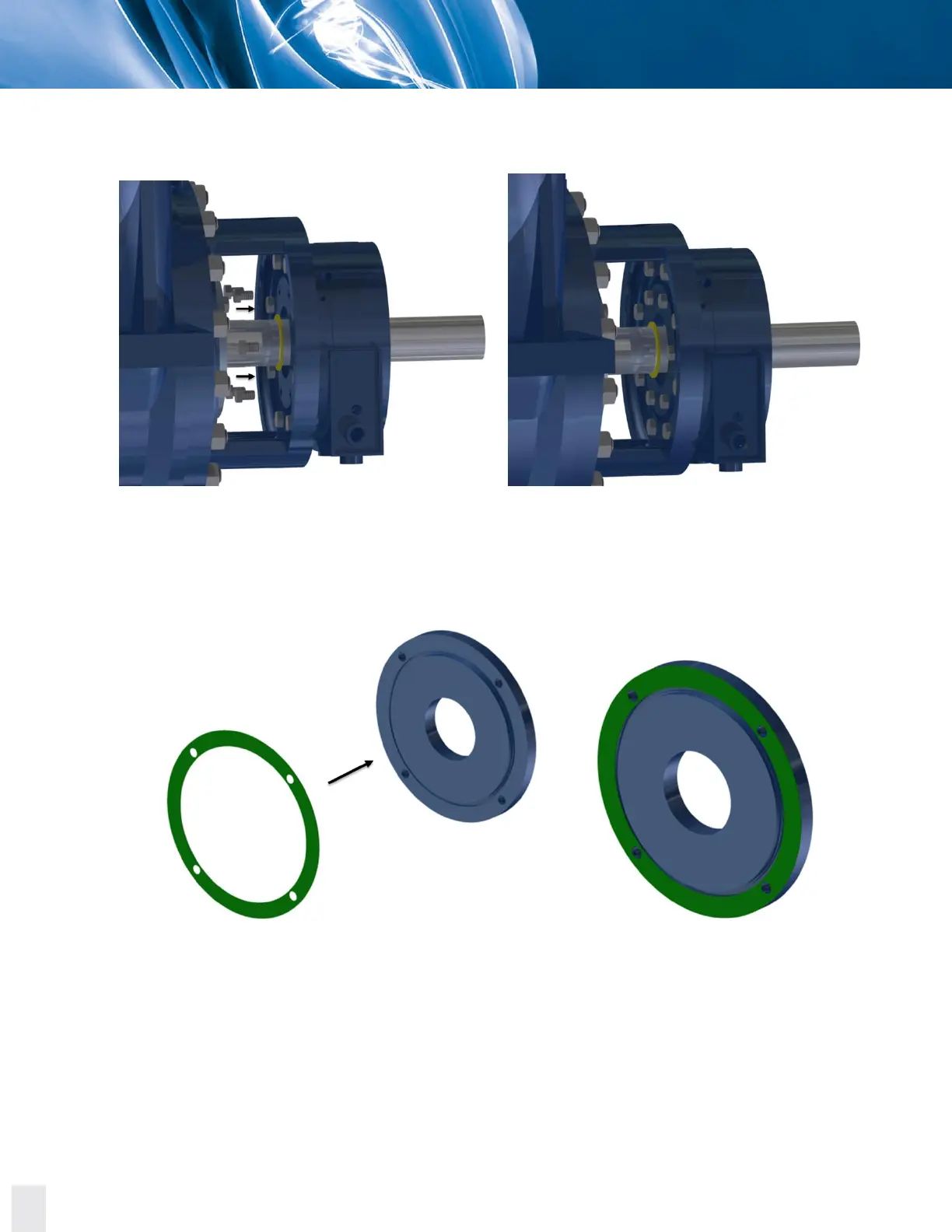

Figure 8.33JD. Placing and tightening the hex bolts to secure the internal radial bearing housing cover to the radial
casing cover.
34. Place the corresponding gasket on the external radial bearing housing cover.
Figure 8.34JD. Placing the corresponding gasket on the external radial bearing housing cover.
