43. Insert the internal axial bearing housing cover over the shaft from the non-coupling side.

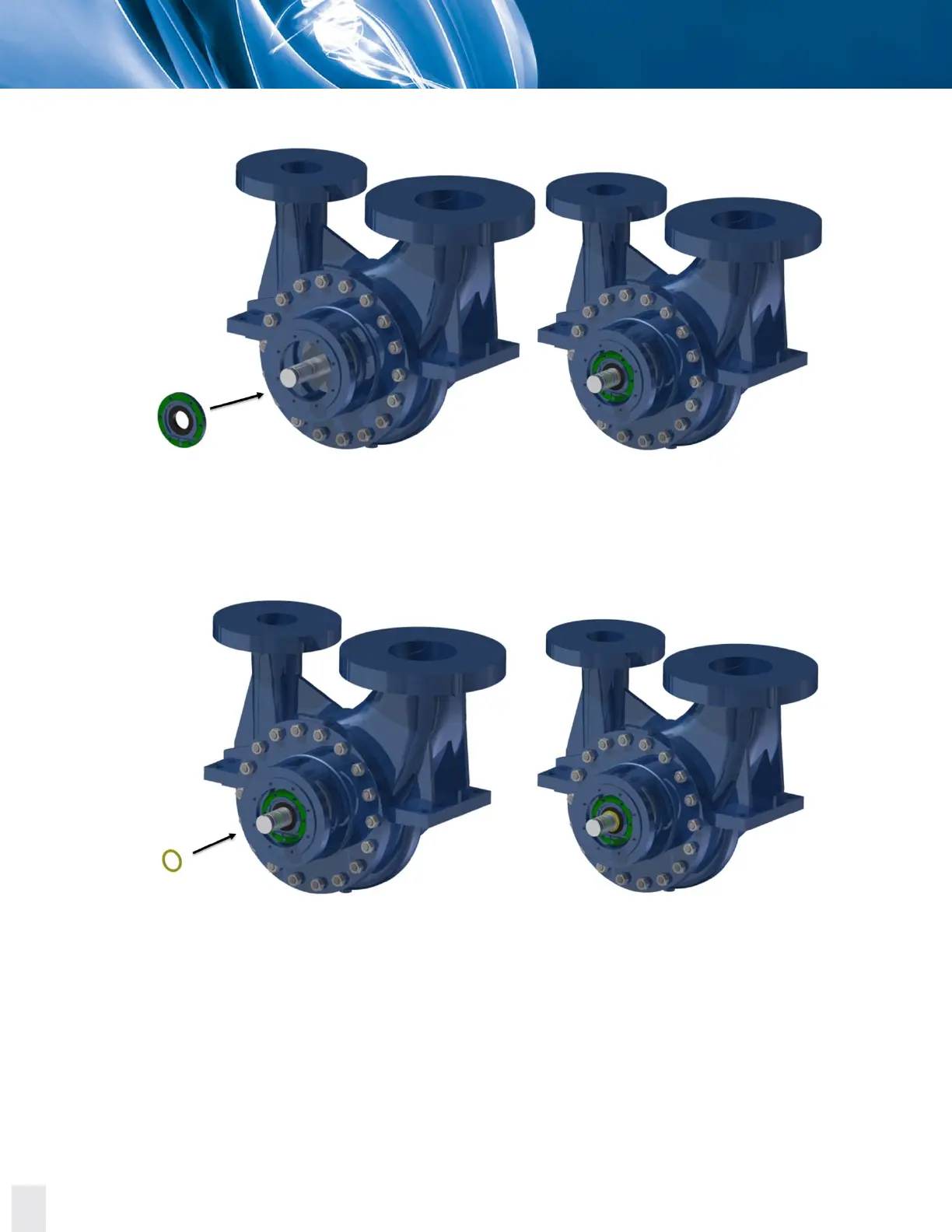

Figure 8.41JD. Inserting the internal axial bearing housing cover over the shaft from the non-coupling side.
44. Insert the axial bearing spacer over the shaft from the non-coupling side until it reaches its
respective groove on the shaft.
Figure 8.42JD. Inserting the axial bearing spacer over the shaft from the coupling side.
