J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
117 V1.032818
48. Insert the axial oil ring over the shaft from the non-coupling side until it reaches its respective
groove on the axial bearing sleeve.

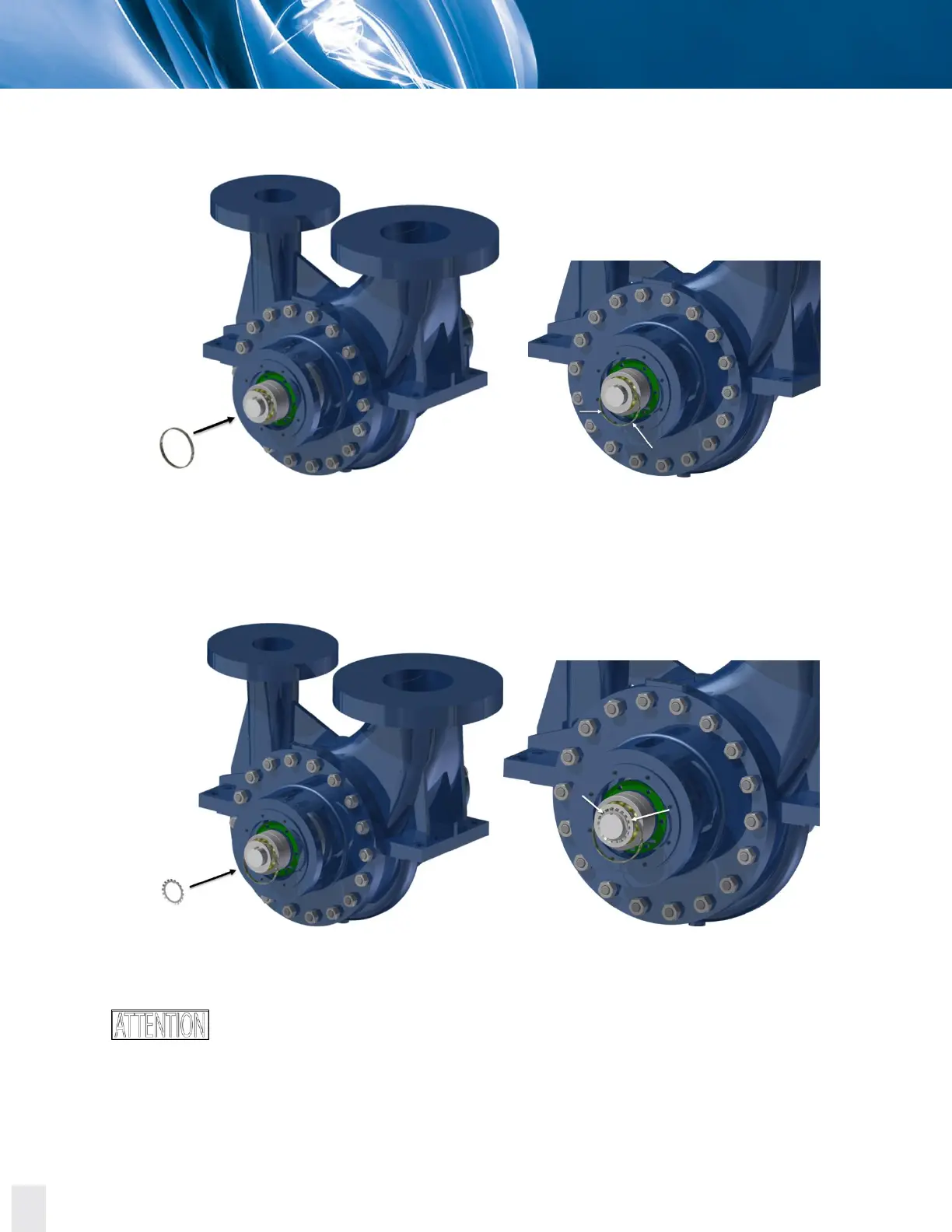

Figure 8.47JD. Inserting the axial oil ring over the shaft from the non-coupling side.
49. Insert the axial lock washer over the shaft from the non-coupling side until it reaches the axial
bearing sleeve.
Figure 8.48JD. Inserting the axial lock washer over the shaft from the non-coupling side.
 Make sure that the tab located in the inner diameter of the axial bearing lock
washer fits in the shaft groove.
