J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
116 V1.032818
If there is no way of properly heating the bearing for installation, a bearing
installation kit approved by the bearing manufacturer can be used to perform a
bearing installation at room temperature.

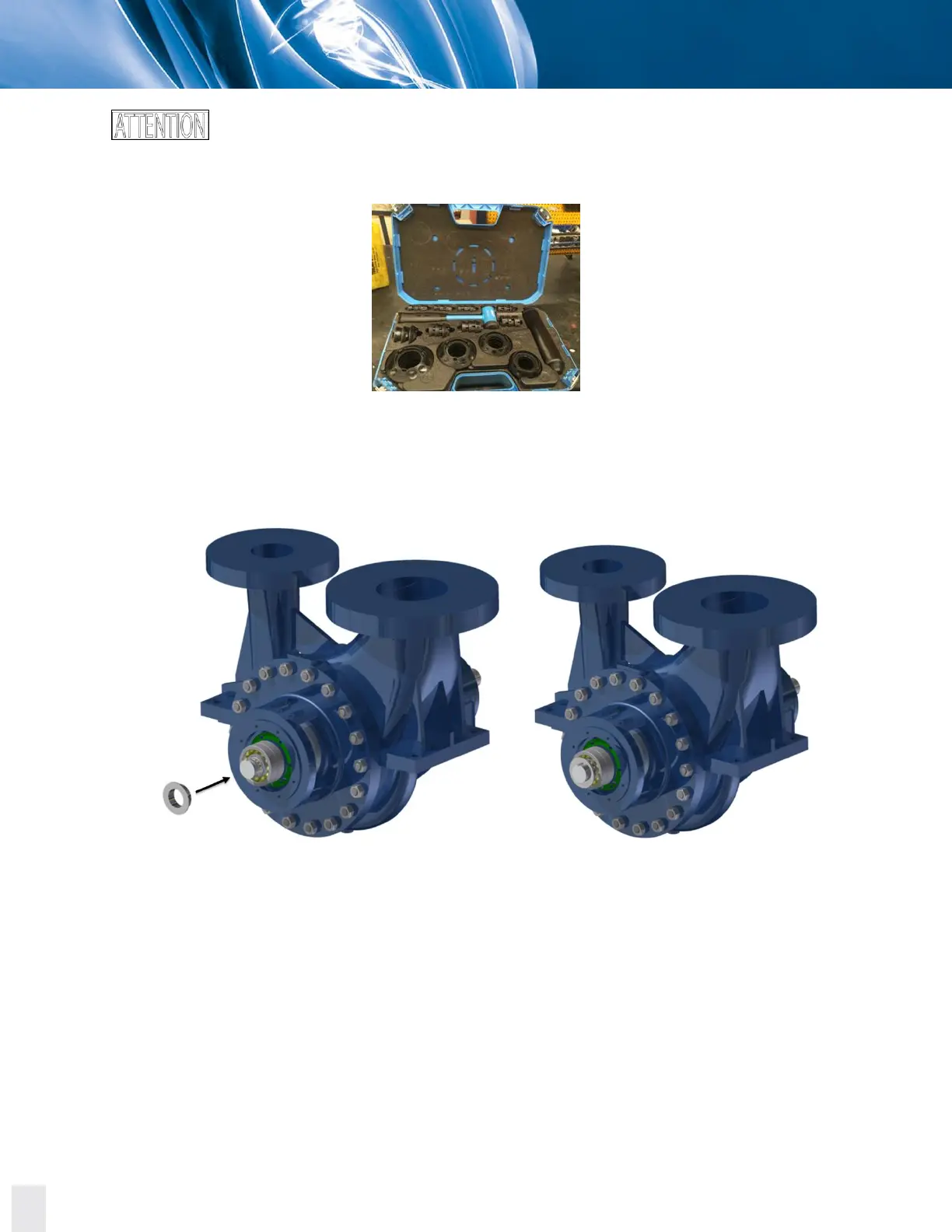

Figure 8.45JD Example of a bearing installation kit approved by the bearing manufacturer.
47. Insert the axial bearing sleeve over the shaft from the non-coupling side until it reaches the
second axial bearing.
Figure 8.46JD. Inserting the axial bearing sleeve over the shaft from the non-coupling side.
